#include "threadvars.h"
#include "decode.h"
#include "flow.h"
#include "stream-tcp-private.h"
#include "stream-tcp-reassemble.h"
#include "rust.h"

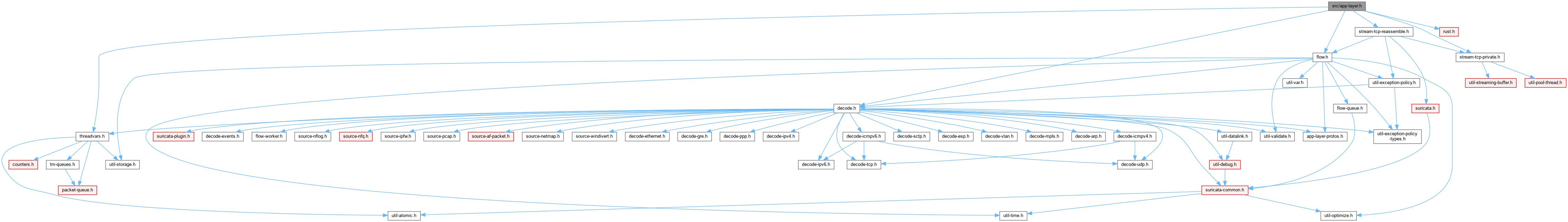

Include dependency graph for app-layer.h:

Macros
#define	APP_LAYER_DATA_ALREADY_SENT_TO_APP_LAYER (~STREAM_TOSERVER & ~STREAM_TOCLIENT)

#define	AppLayerProfilingReset(app_tctx) AppLayerProfilingResetInternal(app_tctx)

#define	AppLayerProfilingStore(app_tctx, p) AppLayerProfilingStoreInternal(app_tctx, p)

Functions
int	AppLayerHandleTCPData (ThreadVars tv, TcpReassemblyThreadCtx ra_ctx, Packet p, Flow f, TcpSession ssn, TcpStream stream, uint8_t data, uint32_t data_len, uint8_t flags, enum StreamUpdateDir dir)
	Handles reassembled tcp stream.

int	AppLayerHandleUdp (ThreadVars tv, AppLayerThreadCtx app_tctx, Packet p, Flow f)
	Handles an udp chunk.

AppProto	AppLayerGetProtoByName (const char *alproto_name)
	Given a protocol string, returns the corresponding internal protocol id.

const char *	AppLayerGetProtoName (AppProto alproto)
	Given the internal protocol id, returns a string representation of the protocol.

void	AppLayerListSupportedProtocols (void)

int	AppLayerSetup (void)
	Setup the app layer.

int	AppLayerDeSetup (void)
	De initializes the app layer.

AppLayerThreadCtx *	AppLayerGetCtxThread (void)
	Creates a new app layer thread context.

void	AppLayerDestroyCtxThread (AppLayerThreadCtx *tctx)
	Destroys the context created by AppLayerGetCtxThread().

void	AppLayerRegisterThreadCounters (ThreadVars *tv)
	Registers per flow counters for all protocols.

void	AppLayerProfilingResetInternal (AppLayerThreadCtx *app_tctx)

void	AppLayerProfilingStoreInternal (AppLayerThreadCtx app_tctx, Packet p)

void	AppLayerRegisterGlobalCounters (void)
	HACK to work around our broken unix manager (re)init loop.

void	AppLayerUnittestsRegister (void)

void	AppLayerIncTxCounter (ThreadVars tv, Flow f, uint64_t step)

void	AppLayerIncGapErrorCounter (ThreadVars tv, Flow f)

void	AppLayerIncAllocErrorCounter (ThreadVars tv, Flow f)

void	AppLayerIncParserErrorCounter (ThreadVars tv, Flow f)

void	AppLayerIncInternalErrorCounter (ThreadVars tv, Flow f)

Detailed Description

Author: Victor Julien victo.nosp@m.r@in.nosp@m.linia.nosp@m.c.ne.nosp@m.t; Anoop Saldanha anoop.nosp@m.sald.nosp@m.anha@.nosp@m.gmai.nosp@m.l.com

Application layer handling and protocols implementation

Definition in file app-layer.h.

Macro Definition Documentation

◆ APP_LAYER_DATA_ALREADY_SENT_TO_APP_LAYER

#define APP_LAYER_DATA_ALREADY_SENT_TO_APP_LAYER (~STREAM_TOSERVER & ~STREAM_TOCLIENT)

Definition at line 40 of file app-layer.h.

◆ AppLayerProfilingReset

#define AppLayerProfilingReset ( app_tctx ) AppLayerProfilingResetInternal(app_tctx)

Definition at line 127 of file app-layer.h.

◆ AppLayerProfilingStore

#define AppLayerProfilingStore	(	app_tctx,
		p
	)	AppLayerProfilingStoreInternal(app_tctx, p)

Definition at line 128 of file app-layer.h.

Function Documentation

◆ AppLayerDeSetup()

int AppLayerDeSetup ( void )

De initializes the app layer.

   Includes de initializing protocol detection and the protocol parser.

Definition at line 1095 of file app-layer.c.

References AppLayerDeSetupCounters(), AppLayerParserDeSetup(), AppLayerProtoDetectDeSetup(), FrameConfigDeInit(), SCEnter, and SCReturnInt.

Referenced by GlobalsDestroy().

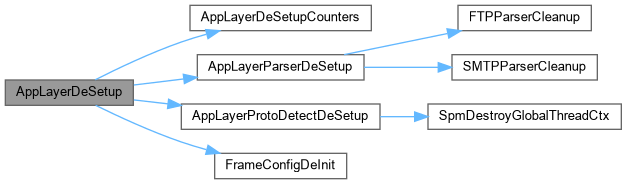

Here is the call graph for this function:

Here is the caller graph for this function:

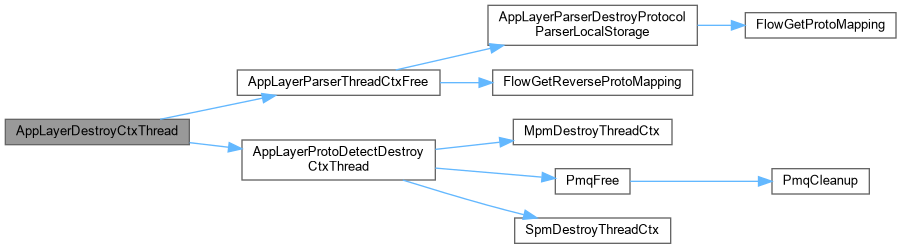

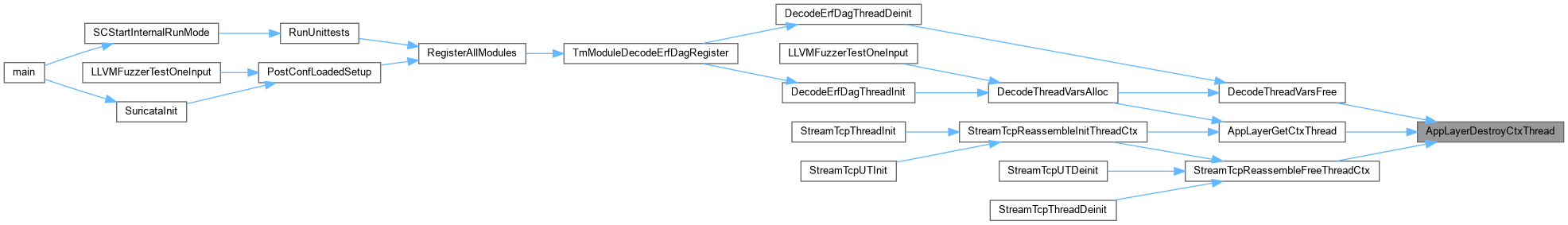

◆ AppLayerDestroyCtxThread()

void AppLayerDestroyCtxThread ( AppLayerThreadCtx * tctx )

Destroys the context created by AppLayerGetCtxThread().

Parameters

tctx	Pointer to the thread context to destroy.

Definition at line 1129 of file app-layer.c.

References AppLayerThreadCtx_::alp_tctx, AppLayerThreadCtx_::alpd_tctx, AppLayerParserThreadCtxFree(), AppLayerProtoDetectDestroyCtxThread(), SCEnter, SCFree, and SCReturn.

Referenced by AppLayerGetCtxThread(), DecodeThreadVarsFree(), and StreamTcpReassembleFreeThreadCtx().

Here is the call graph for this function:

Here is the caller graph for this function:

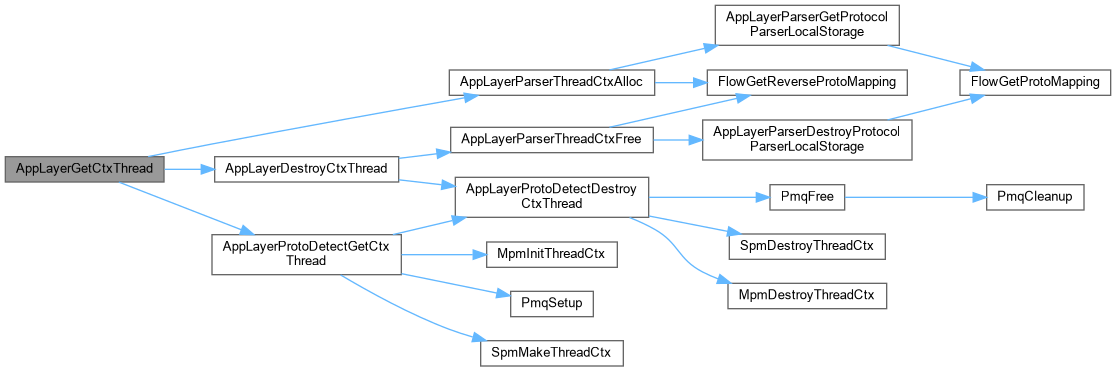

◆ AppLayerGetCtxThread()

AppLayerThreadCtx * AppLayerGetCtxThread ( void )

Creates a new app layer thread context.

Return values

Pointer to the newly create thread context, on success; NULL, on failure.

Definition at line 1108 of file app-layer.c.

References AppLayerThreadCtx_::alp_tctx, AppLayerThreadCtx_::alpd_tctx, AppLayerDestroyCtxThread(), AppLayerParserThreadCtxAlloc(), AppLayerProtoDetectGetCtxThread(), SCCalloc, SCEnter, and SCReturnPtr.

Referenced by DecodeThreadVarsAlloc(), and StreamTcpReassembleInitThreadCtx().

Here is the call graph for this function:

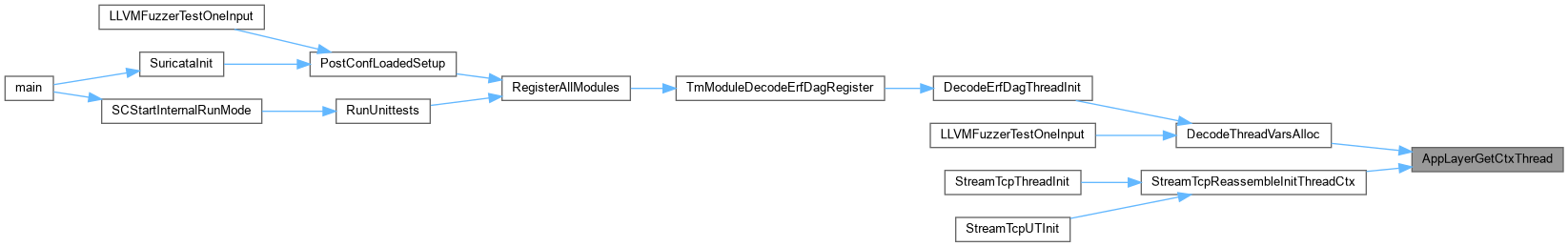

Here is the caller graph for this function:

◆ AppLayerGetProtoByName()

AppProto AppLayerGetProtoByName ( const char * alproto_name )

Given a protocol string, returns the corresponding internal protocol id.

Parameters

The	internal protocol id.

Definition at line 1002 of file app-layer.c.

References AppLayerProtoDetectGetProtoByName(), SCEnter, and SCReturnCT.

Here is the call graph for this function:

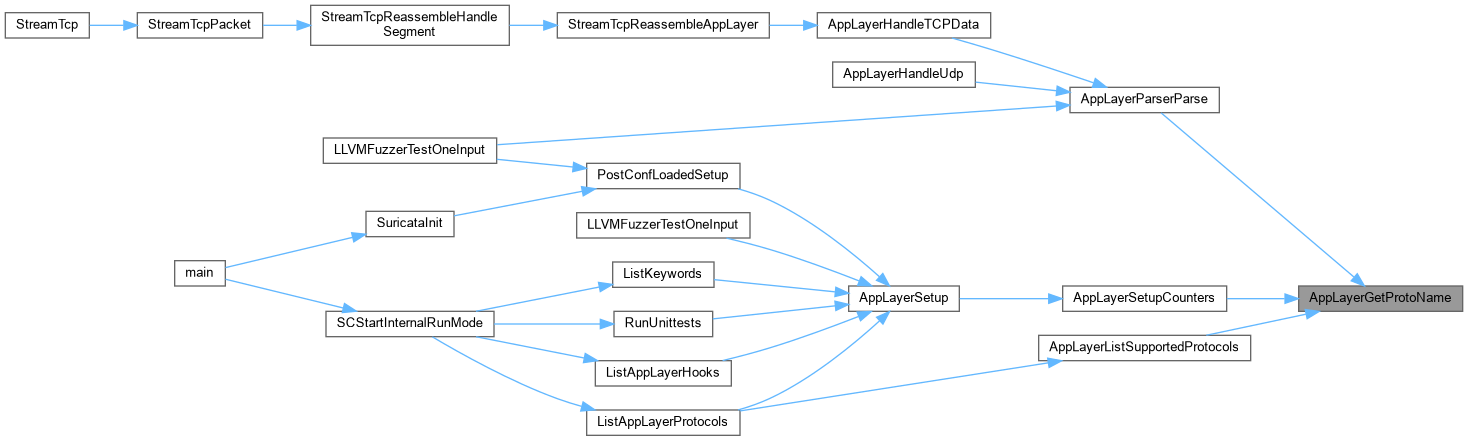

◆ AppLayerGetProtoName()

const char * AppLayerGetProtoName ( AppProto alproto )

Given the internal protocol id, returns a string representation of the protocol.

Parameters

alproto The internal protocol id.

Return values

String representation of the protocol.

Definition at line 1009 of file app-layer.c.

References AppLayerProtoDetectGetProtoName(), SCEnter, and SCReturnCT.

Referenced by AppLayerListSupportedProtocols(), AppLayerParserParse(), and AppLayerSetupCounters().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AppLayerHandleTCPData()

int AppLayerHandleTCPData	(	ThreadVars *	tv,
		TcpReassemblyThreadCtx *	ra_ctx,
		Packet *	p,
		Flow *	f,
		TcpSession *	ssn,
		TcpStream **	stream,
		uint8_t *	data,
		uint32_t	data_len,
		uint8_t	flags,
		enum StreamUpdateDir	app_update_dir
	)

Handles reassembled tcp stream.

First run protocol detection and then when the protocol is known invoke the app layer parser.

Parameters

stream ptr-to-ptr to stream object. Might change if flow dir is reversed.

Definition at line 711 of file app-layer.c.

References AppLayerThreadCtx_::alp_tctx, Flow_::alparser, Flow_::alproto, Flow_::alproto_expect, Flow_::alproto_orig, Flow_::alproto_tc, ALPROTO_TLS, Flow_::alproto_ts, ALPROTO_UNKNOWN, Flow_::alstate, Packet_::app_layer_events, TcpReassemblyThreadCtx_::app_tctx, Packet_::app_update_direction, APPLAYER_NO_TLS_AFTER_STARTTLS, APPLAYER_UNEXPECTED_PROTOCOL, AppLayerDecoderEventsSetEventRaw(), AppLayerParserParse(), AppLayerParserStateProtoCleanup(), AppLayerProtoDetectReset(), AppProtoToString(), TcpSession_::client, DEBUG_ASSERT_FLOW_LOCKED, DEBUG_VALIDATE_BUG_ON, ExceptionPolicyApply(), flags, TcpSession_::flags, FlowChangeProto(), FlowUnsetChangeProtoFlag(), g_applayerparser_error_policy, PACKET_PROFILING_APP_END, PACKET_PROFILING_APP_START, PKT_DROP_REASON_APPLAYER_ERROR, PrintRawDataFp(), Flow_::protomap, SCEnter, SCLogDebug, SCReturnInt, TcpSession_::server, STREAMTCP_FLAG_APP_LAYER_DISABLED, StreamTcpResetStreamFlagAppProtoDetectionCompleted, StreamTcpSetStreamFlagAppProtoDetectionCompleted, StreamTcpUpdateAppLayerProgress(), and tv.

Referenced by StreamTcpReassembleAppLayer().

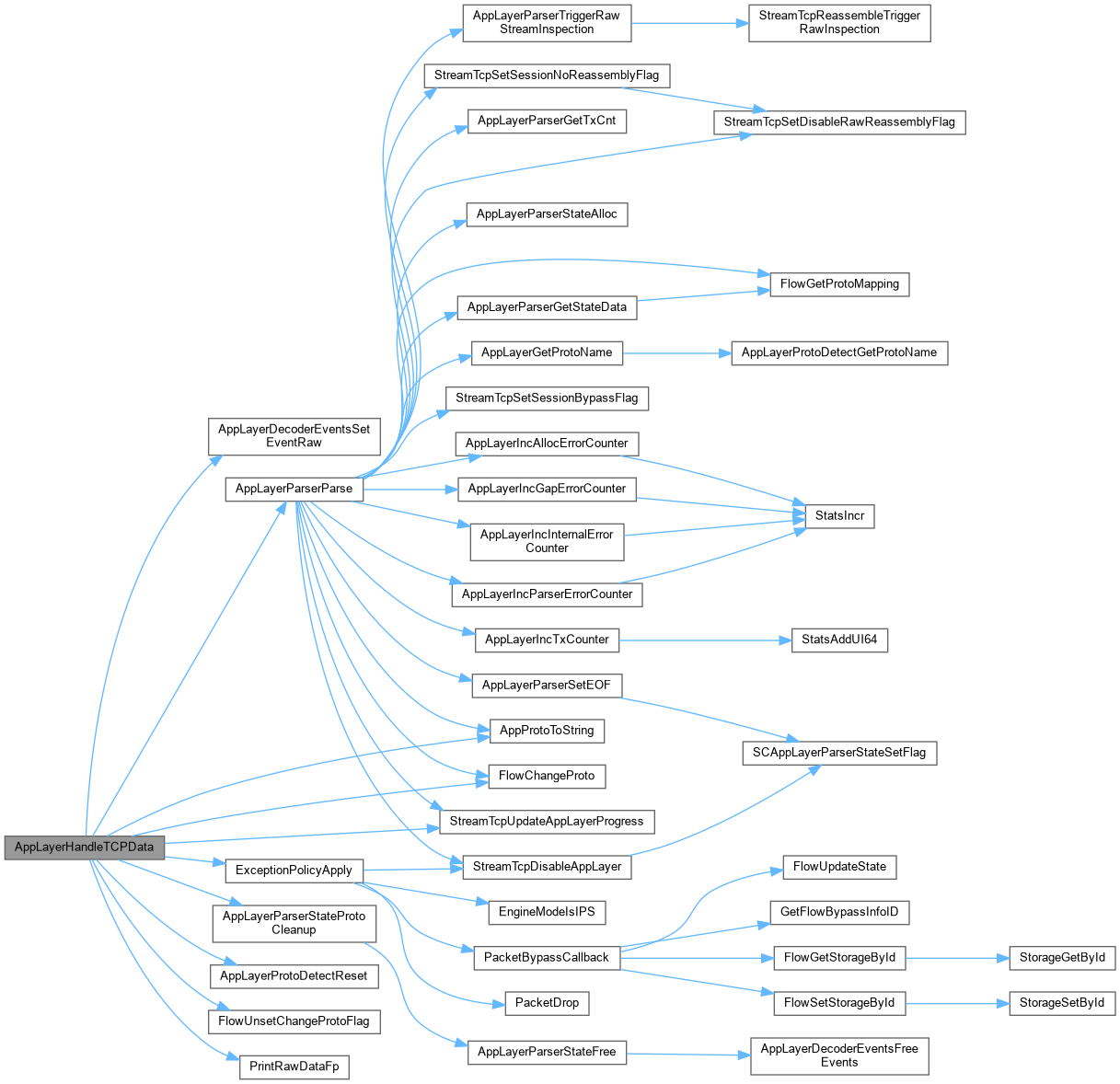

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AppLayerHandleUdp()

int AppLayerHandleUdp	(	ThreadVars *	tv,
		AppLayerThreadCtx *	tctx,
		Packet *	p,
		Flow *	f
	)

Handles an udp chunk.

If the protocol is yet unknown, the proto detection code is run first.

Parameters

dp_ctx	Thread app layer detect context
f	locked flow
p	UDP packet

Return values

0	ok
-1	error

Definition at line 878 of file app-layer.c.

References AppLayerThreadCtx_::alp_tctx, AppLayerThreadCtx_::alpd_tctx, Flow_::alproto, ALPROTO_FAILED, Flow_::alproto_tc, Flow_::alproto_ts, ALPROTO_UNKNOWN, Packet_::app_layer_events, Packet_::app_update_direction, APPLAYER_MISMATCH_PROTOCOL_BOTH_DIRECTIONS, AppLayerDecoderEventsSetEventRaw(), AppLayerParserParse(), AppLayerProfilingReset, AppLayerProtoDetectGetProto(), ExceptionPolicyApply(), flags, FLOW_PKT_TOSERVER, Packet_::flowflags, FlowSwap(), g_applayerparser_error_policy, PACKET_PROFILING_APP_END, PACKET_PROFILING_APP_PD_END, PACKET_PROFILING_APP_PD_START, PACKET_PROFILING_APP_START, PACKET_PROFILING_APP_STORE, PacketSwap(), Packet_::payload, Packet_::payload_len, PKT_DROP_REASON_APPLAYER_ERROR, SCEnter, SCLogDebug, SCReturnInt, SWAP_FLAGS, tv, and UPDATE_DIR_PACKET.

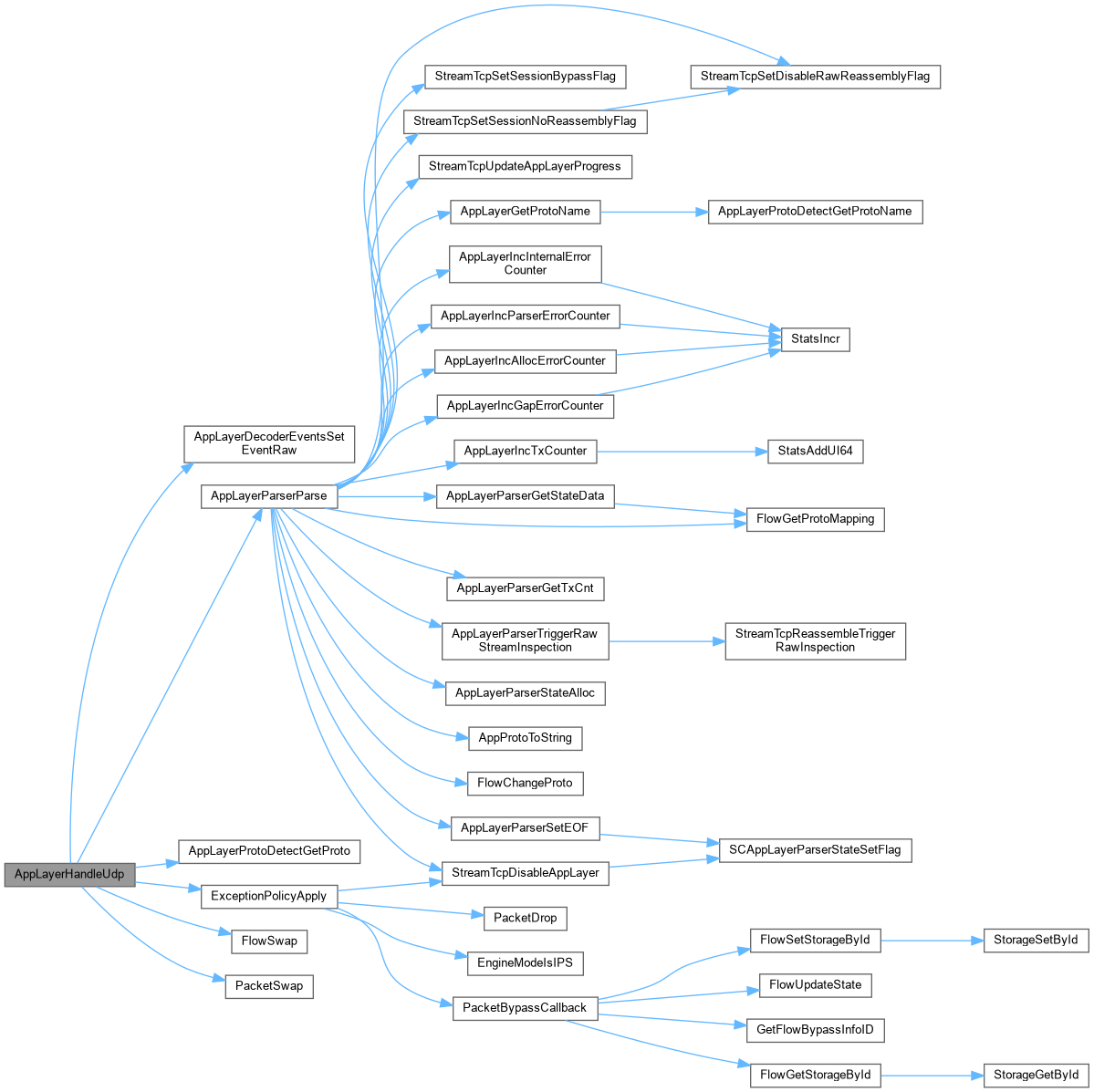

Here is the call graph for this function:

◆ AppLayerIncAllocErrorCounter()

void AppLayerIncAllocErrorCounter	(	ThreadVars *	tv,
		Flow *	f
	)

Definition at line 171 of file app-layer.c.

References AppLayerCounters_::alloc_error_id, Flow_::alproto, applayer_counters, likely, Flow_::protomap, StatsIncr(), and tv.

Referenced by AppLayerParserParse().

Here is the call graph for this function:

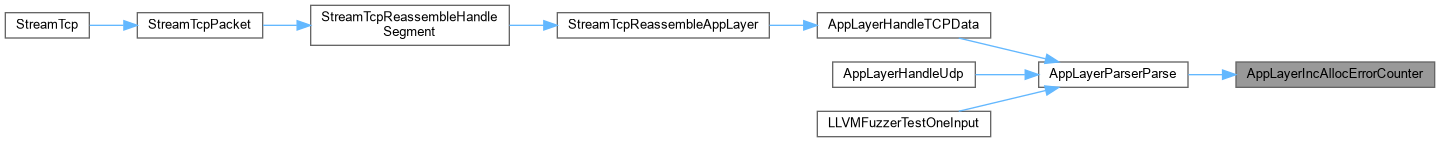

Here is the caller graph for this function:

◆ AppLayerIncGapErrorCounter()

void AppLayerIncGapErrorCounter	(	ThreadVars *	tv,
		Flow *	f
	)

Definition at line 163 of file app-layer.c.

References Flow_::alproto, applayer_counters, AppLayerCounters_::gap_error_id, likely, Flow_::protomap, StatsIncr(), and tv.

Referenced by AppLayerParserParse().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AppLayerIncInternalErrorCounter()

void AppLayerIncInternalErrorCounter	(	ThreadVars *	tv,
		Flow *	f
	)

Definition at line 187 of file app-layer.c.

References Flow_::alproto, applayer_counters, AppLayerCounters_::internal_error_id, likely, Flow_::protomap, StatsIncr(), and tv.

Referenced by AppLayerParserParse().

Here is the call graph for this function:

Here is the caller graph for this function:

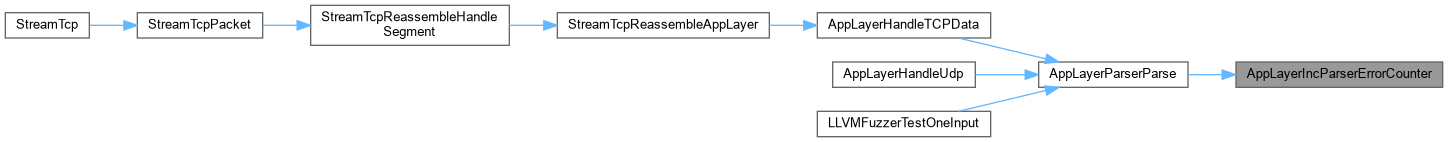

◆ AppLayerIncParserErrorCounter()

void AppLayerIncParserErrorCounter	(	ThreadVars *	tv,
		Flow *	f
	)

Definition at line 179 of file app-layer.c.

References Flow_::alproto, applayer_counters, likely, AppLayerCounters_::parser_error_id, Flow_::protomap, StatsIncr(), and tv.

Referenced by AppLayerParserParse().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AppLayerIncTxCounter()

void AppLayerIncTxCounter	(	ThreadVars *	tv,
		Flow *	f,
		uint64_t	step
	)

Definition at line 155 of file app-layer.c.

References Flow_::alproto, applayer_counters, AppLayerCounters_::counter_tx_id, likely, Flow_::protomap, StatsAddUI64(), and tv.

Referenced by AppLayerParserParse().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AppLayerListSupportedProtocols()

void AppLayerListSupportedProtocols ( void )

Definition at line 1016 of file app-layer.c.

References AppLayerGetProtoName(), AppLayerProtoDetectSupportedAppProtocols(), g_alproto_max, SCEnter, and SCReturn.

Referenced by ListAppLayerProtocols().

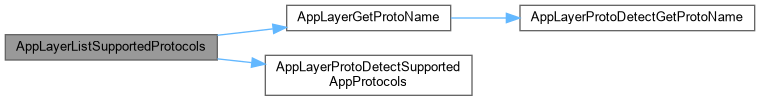

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AppLayerProfilingResetInternal()

void AppLayerProfilingResetInternal ( AppLayerThreadCtx * app_tctx )

Definition at line 1146 of file app-layer.c.

References PACKET_PROFILING_APP_RESET.

◆ AppLayerProfilingStoreInternal()

void AppLayerProfilingStoreInternal	(	AppLayerThreadCtx *	app_tctx,
		Packet *	p
	)

Definition at line 1151 of file app-layer.c.

References PACKET_PROFILING_APP_STORE.

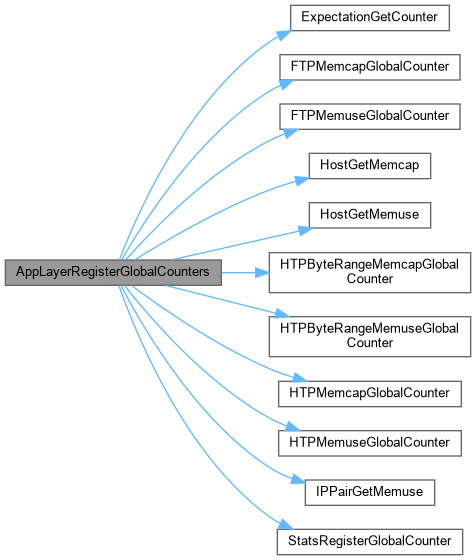

◆ AppLayerRegisterGlobalCounters()

void AppLayerRegisterGlobalCounters ( void )

HACK to work around our broken unix manager (re)init loop.

Definition at line 1159 of file app-layer.c.

References ExpectationGetCounter(), FTPMemcapGlobalCounter(), FTPMemuseGlobalCounter(), HostGetMemcap(), HostGetMemuse(), HTPByteRangeMemcapGlobalCounter(), HTPByteRangeMemuseGlobalCounter(), HTPMemcapGlobalCounter(), HTPMemuseGlobalCounter(), IPPairGetMemuse(), and StatsRegisterGlobalCounter().

Referenced by PreRunInit().

Here is the call graph for this function:

Here is the caller graph for this function:

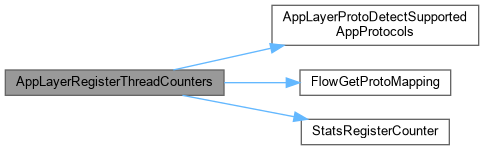

◆ AppLayerRegisterThreadCounters()

void AppLayerRegisterThreadCounters ( ThreadVars * tv )

Registers per flow counters for all protocols.

Definition at line 1307 of file app-layer.c.

References AppLayerCounters_::alloc_error_id, ALPROTO_FAILED, app_layer_error_eps_stats, applayer_counter_names, applayer_counters, AppLayerProtoDetectSupportedAppProtocols(), AppLayerCounters_::counter_id, AppLayerCounters_::counter_tx_id, AppLayerCounters_::eps_error, eps_error_summary, ExceptionPolicyCounters_::eps_id, ExceptionPolicyStatsSetts_::eps_name, EXCEPTION_POLICY_MAX, EXCEPTION_POLICY_NOT_SET, FLOW_PROTO_APPLAYER_MAX, FlowGetProtoMapping(), g_alproto_max, g_applayerparser_error_policy, g_stats_eps_per_app_proto_errors, AppLayerCounters_::gap_error_id, AppLayerCounters_::internal_error_id, name, AppLayerCounters_::parser_error_id, StatsRegisterCounter(), and tv.

Here is the call graph for this function:

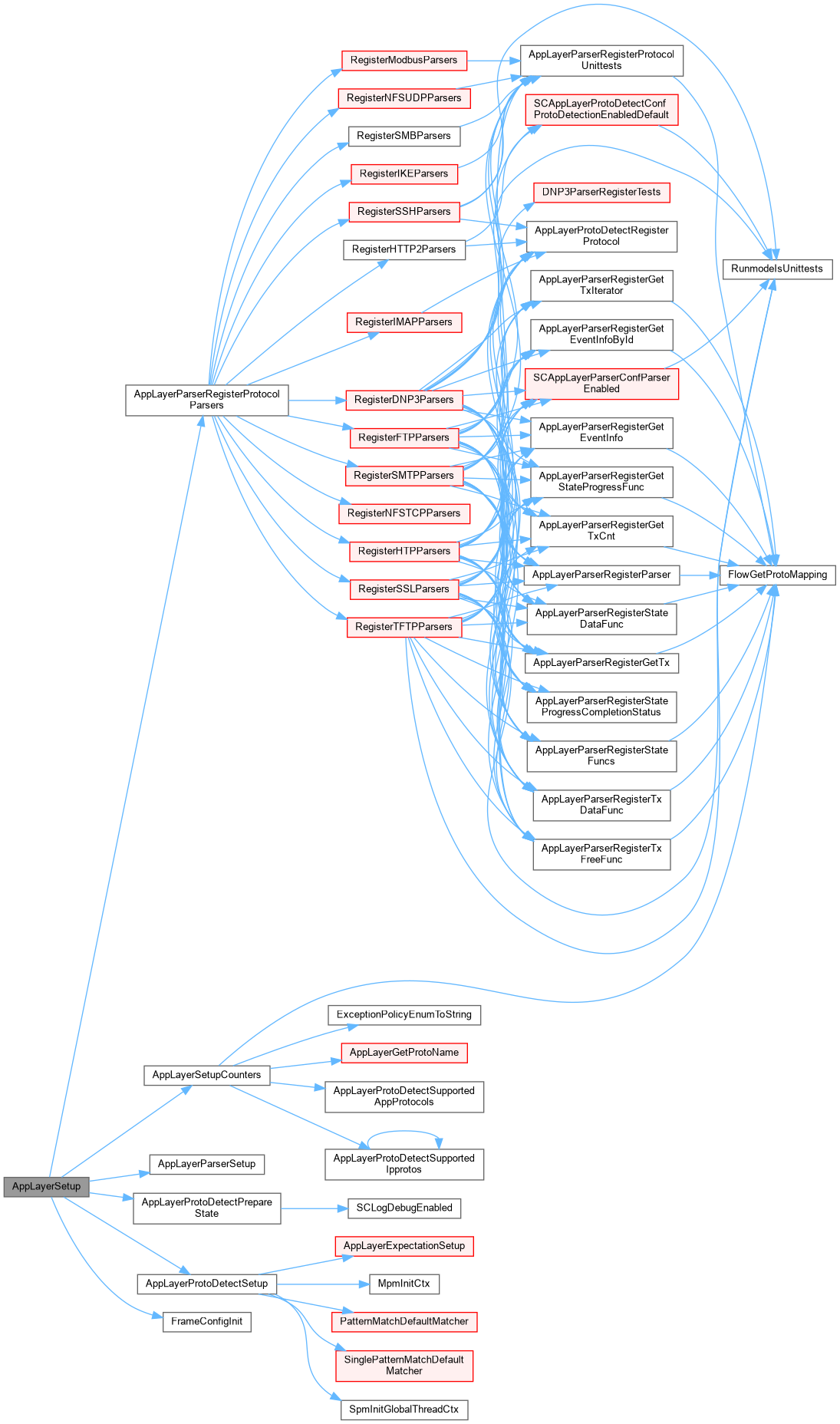

◆ AppLayerSetup()

int AppLayerSetup ( void )

Setup the app layer.

   Includes protocol detection setup and the protocol parser setup.

Return values

0	On success.
-1	On failure.

Definition at line 1078 of file app-layer.c.

References AppLayerParserRegisterProtocolParsers(), AppLayerParserSetup(), AppLayerProtoDetectPrepareState(), AppLayerProtoDetectSetup(), AppLayerSetupCounters(), FrameConfigInit(), SCEnter, and SCReturnInt.

Referenced by ListAppLayerHooks(), ListAppLayerProtocols(), ListKeywords(), LLVMFuzzerTestOneInput(), PostConfLoadedSetup(), and RunUnittests().

Here is the call graph for this function:

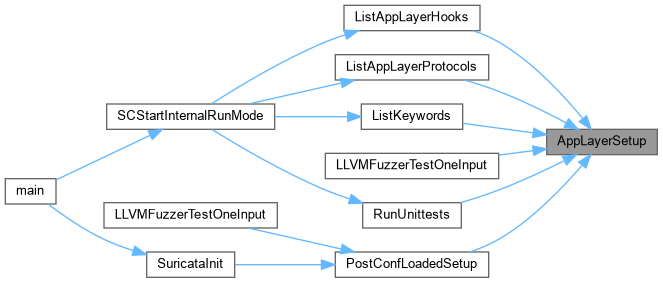

Here is the caller graph for this function:

◆ AppLayerUnittestsRegister()

void AppLayerUnittestsRegister ( void )

Definition at line 2891 of file app-layer.c.

References SCEnter, SCReturn, and UtRegisterTest().

Here is the call graph for this function:
