This graph shows which files directly or indirectly include this file:

Functions
DetectAddress *	DetectAddressInit (void)
	Creates and returns a new instance of a DetectAddress.

void	DetectAddressFree (DetectAddress *)
	Frees a DetectAddress instance.

DetectAddress *	DetectAddressCopy (DetectAddress *)
	copy a DetectAddress

int	DetectAddressParse (const DetectEngineCtx , DetectAddressHead , const char *)
	Parses an address group sent as a character string and updates the DetectAddressHead sent as the argument with the relevant address ranges from the parsed string.

void	DetectAddressHeadCleanup (DetectAddressHead *)
	Cleans a DetectAddressHead. The functions frees the address group heads(ipv4 and ipv6) inside the DetectAddressHead instance.

bool	DetectAddressListsAreEqual (DetectAddress list1, DetectAddress list2)
	Checks if two address group lists are equal.

DetectAddress *	DetectAddressLookupInHead (const DetectAddressHead , Address )
	Find the group matching address in a group head.

int	DetectAddressCmp (DetectAddress , DetectAddress )
	Used to compare 2 address ranges.

int	DetectAddressMatchIPv4 (const DetectMatchAddressIPv4 , uint16_t, const Address )
	Match a packets address against a signatures addrs array.

int	DetectAddressMatchIPv6 (const DetectMatchAddressIPv6 , uint16_t, const Address )
	Match a packets address against a signatures addrs array.

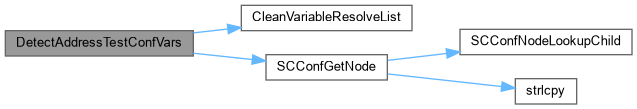

int	DetectAddressTestConfVars (void)

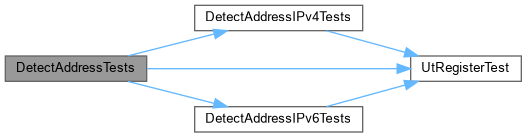

void	DetectAddressTests (void)

int	DetectAddressMapInit (DetectEngineCtx *de_ctx)

void	DetectAddressMapFree (DetectEngineCtx *de_ctx)

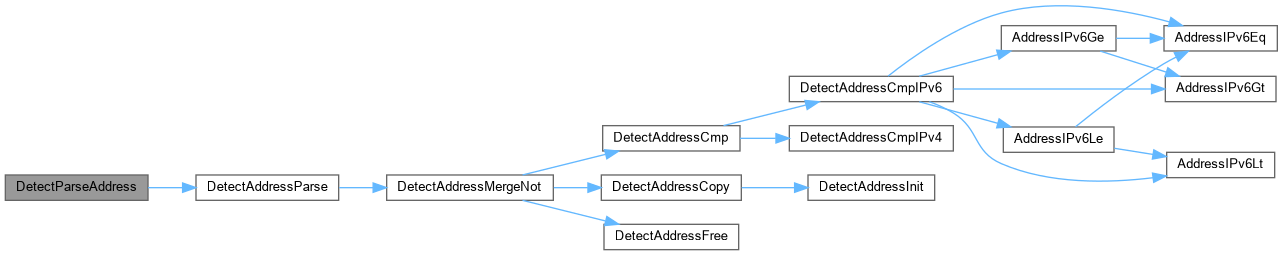

const DetectAddressHead *	DetectParseAddress (DetectEngineCtx de_ctx, const char string, bool *contains_negation)

Detailed Description

Author: Victor Julien victo.nosp@m.r@in.nosp@m.linia.nosp@m.c.ne.nosp@m.t

Definition in file detect-engine-address.h.

Function Documentation

◆ DetectAddressCmp()

int DetectAddressCmp	(	DetectAddress *	a,
		DetectAddress *	b
	)

Used to compare 2 address ranges.

Parameters

a	Pointer to the first DetectAddressData to be compared.
b	Pointer to the second DetectAddressData to be compared.

Definition at line 1562 of file detect-engine-address.c.

References ADDRESS_ER, DetectAddressCmpIPv4(), DetectAddressCmpIPv6(), Address_::family, and DetectAddress_::ip.

Referenced by DetectAddressListsAreEqual(), and DetectAddressMergeNot().

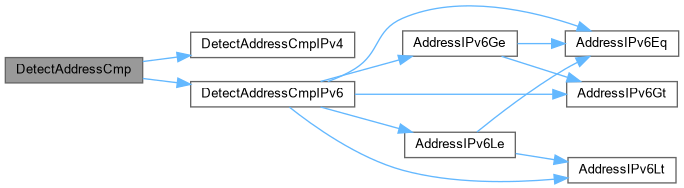

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DetectAddressCopy()

DetectAddress * DetectAddressCopy ( DetectAddress * orig )

copy a DetectAddress

Parameters

orig	Pointer to the instance of DetectAddress that contains the address data to be copied to the new instance.

Return values

ag	Pointer to the new instance of DetectAddress that contains the copied address.

Definition at line 127 of file detect-engine-address.c.

References COPY_ADDRESS, DetectAddressInit(), DetectAddress_::flags, DetectAddress_::ip, and DetectAddress_::ip2.

Referenced by DetectAddressMergeNot(), and DetectThresholdDataCopy().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DetectAddressFree()

void DetectAddressFree ( DetectAddress * ag )

Frees a DetectAddress instance.

Parameters

ag	Pointer to the DetectAddress instance to be freed.

Definition at line 82 of file detect-engine-address.c.

References SCFree.

Referenced by DetectAddressCutIPv4(), and DetectAddressMergeNot().

Here is the caller graph for this function:

◆ DetectAddressHeadCleanup()

void DetectAddressHeadCleanup ( DetectAddressHead * gh )

Cleans a DetectAddressHead. The functions frees the address group heads(ipv4 and ipv6) inside the DetectAddressHead instance.

Parameters

gh	Pointer to the DetectAddressHead instance that has to be cleaned.

Definition at line 1476 of file detect-engine-address.c.

References DetectAddressHead_::ipv4_head, and DetectAddressHead_::ipv6_head.

◆ DetectAddressInit()

DetectAddress * DetectAddressInit ( void )

Creates and returns a new instance of a DetectAddress.

Return values

ag	Pointer to the newly created DetectAddress on success; NULL on failure.

Definition at line 69 of file detect-engine-address.c.

References SCCalloc, and unlikely.

Referenced by DetectAddressCopy(), DetectAddressCutIPv4(), DetectAddressCutIPv6(), DetectAddressCutNotIPv4(), and DetectAddressCutNotIPv6().

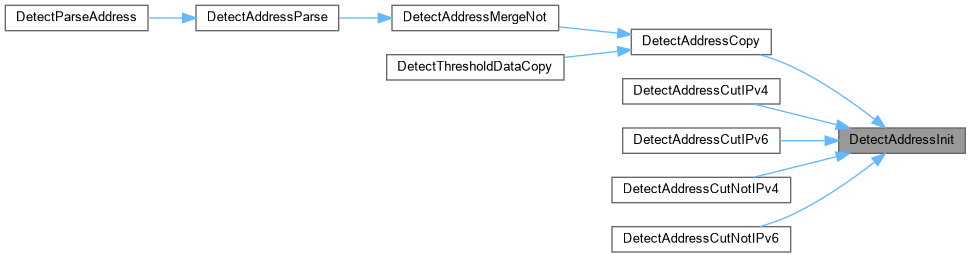

Here is the caller graph for this function:

◆ DetectAddressListsAreEqual()

bool DetectAddressListsAreEqual	(	DetectAddress *	list1,
		DetectAddress *	list2
	)

Checks if two address group lists are equal.

Parameters

list1	Pointer to the first address group list.
list2	Pointer to the second address group list.

Return values

true	On success.
false	On failure.

Definition at line 349 of file detect-engine-address.c.

References ADDRESS_EQ, DetectAddressCmp(), and DetectAddress_::next.

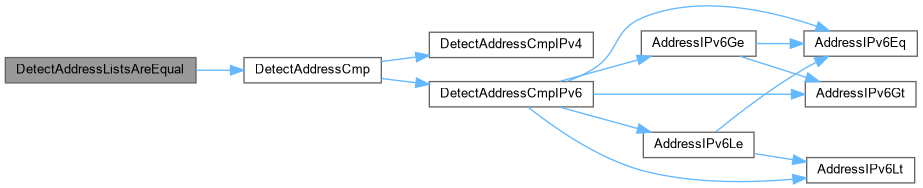

Here is the call graph for this function:

◆ DetectAddressLookupInHead()

DetectAddress * DetectAddressLookupInHead	(	const DetectAddressHead *	gh,
		Address *	a
	)

Find the group matching address in a group head.

Parameters

gh	Pointer to the address group head(DetectAddressHead instance).
a	Pointer to an Address instance.

Return values

g	On success pointer to an DetectAddress if we find a match for the Address "a", in the DetectAddressHead "gh".

Definition at line 1798 of file detect-engine-address.c.

References Address_::family, DetectAddressHead_::ipv4_head, DetectAddressHead_::ipv6_head, DetectAddress_::next, SCEnter, SCLogDebug, and SCReturnPtr.

◆ DetectAddressMapFree()

void DetectAddressMapFree ( DetectEngineCtx * de_ctx )

Definition at line 1337 of file detect-engine-address.c.

References DetectEngineCtx_::address_table, de_ctx, and HashListTableFree().

Referenced by DetectEngineCtxFree().

Here is the call graph for this function:

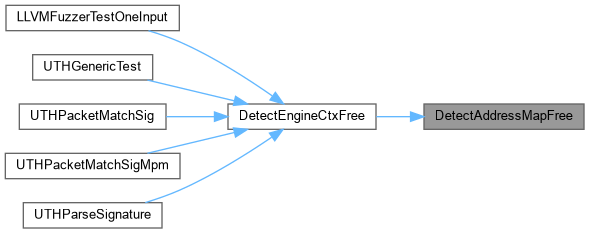

Here is the caller graph for this function:

◆ DetectAddressMapInit()

int DetectAddressMapInit ( DetectEngineCtx * de_ctx )

Definition at line 1326 of file detect-engine-address.c.

References DetectEngineCtx_::address_table, de_ctx, and HashListTableInit().

Here is the call graph for this function:

◆ DetectAddressMatchIPv4()

int DetectAddressMatchIPv4	(	const DetectMatchAddressIPv4 *	addrs,
		uint16_t	addrs_cnt,
		const Address *	a
	)

Match a packets address against a signatures addrs array.

Parameters

addrs	array of DetectMatchAddressIPv4's
addrs_cnt	array size in members
a	packets address

Return values

0	no match
1	match

Note: addresses in addrs are in host order

Todo:: array should be ordered, so we can break out of the loop

Definition at line 1589 of file detect-engine-address.c.

References SCEnter, SCNtohl, and SCReturnInt.

◆ DetectAddressMatchIPv6()

int DetectAddressMatchIPv6	(	const DetectMatchAddressIPv6 *	addrs,
		uint16_t	addrs_cnt,
		const Address *	a
	)

Match a packets address against a signatures addrs array.

Parameters

addrs	array of DetectMatchAddressIPv6's
addrs_cnt	array size in members
a	packets address

Return values

0	no match
1	match

Note: addresses in addrs are in host order

Todo:: array should be ordered, so we can break out of the loop

Definition at line 1622 of file detect-engine-address.c.

References SCEnter, SCNtohl, and SCReturnInt.

◆ DetectAddressParse()

int DetectAddressParse	(	const DetectEngineCtx *	de_ctx,
		DetectAddressHead *	gh,
		const char *	str
	)

Parses an address group sent as a character string and updates the DetectAddressHead sent as the argument with the relevant address ranges from the parsed string.

Parameters

de_ctx	Pointer to the detection engine context
gh	Pointer to the DetectAddressHead.
str	Pointer to the character string containing the address group that has to be parsed.

Return values
