#include "suricata-common.h"
#include "detect.h"
#include "detect-engine.h"
#include "detect-parse.h"
#include "detect-content.h"
#include "detect-engine-build.h"
#include "detect-engine-address.h"
#include "detect-engine-analyzer.h"
#include "detect-engine-iponly.h"
#include "detect-engine-mpm.h"
#include "detect-engine-siggroup.h"
#include "detect-engine-port.h"
#include "detect-engine-prefilter.h"
#include "detect-engine-proto.h"
#include "detect-engine-threshold.h"
#include "detect-dsize.h"
#include "detect-tcp-flags.h"
#include "detect-flow.h"
#include "detect-config.h"
#include "detect-flowbits.h"
#include "app-layer-events.h"
#include "util-port-interval-tree.h"
#include "util-profiling.h"
#include "util-validate.h"
#include "util-var-name.h"
#include "util-conf.h"

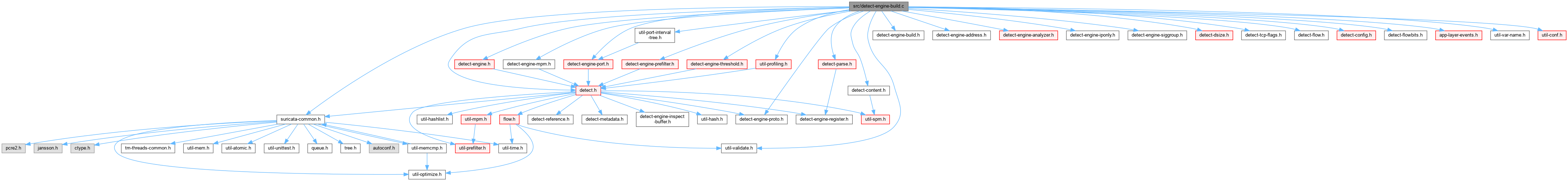

Include dependency graph for detect-engine-build.c:

Data Structures
struct	UniquePortPoint_

Macros
#define	DETECT_PGSCORE_RULE_PORT_PRIORITIZED 111 /* Rule port group contains a priority port */

#define	DETECT_PGSCORE_RULE_MPM_FAST_PATTERN 99 /* Rule contains an MPM fast pattern */

#define	DETECT_PGSCORE_RULE_MPM_NEGATED 77 /* Rule contains a negated MPM */

#define	DETECT_PGSCORE_RULE_NO_MPM 55 /* Rule does not contain MPM */

#define	DETECT_PGSCORE_RULE_SYN_ONLY 33 /* Rule needs SYN check */

#define	MASK_TCP_INITDEINIT_FLAGS (TH_SYN\|TH_RST\|TH_FIN)

#define	MASK_TCP_UNUSUAL_FLAGS (TH_URG\|TH_ECN\|TH_CWR)

#define	UNDEFINED_PORT 0

#define	RANGE_PORT 1

#define	SINGLE_PORT 2

Typedefs
typedef struct UniquePortPoint_	UniquePortPoint

Functions
void	SigCleanSignatures (DetectEngineCtx *de_ctx)

Signature *	SigFindSignatureBySidGid (DetectEngineCtx *de_ctx, uint32_t sid, uint32_t gid)
	Find a specific signature by sid and gid.

int	SignatureIsFilestoring (const Signature *s)
	Check if a signature contains the filestore keyword.

int	SignatureIsFilemagicInspecting (const Signature *s)
	Check if a signature contains the filemagic keyword.

int	SignatureIsFileMd5Inspecting (const Signature *s)
	Check if a signature contains the filemd5 keyword.

int	SignatureIsFileSha1Inspecting (const Signature *s)
	Check if a signature contains the filesha1 keyword.

int	SignatureIsFileSha256Inspecting (const Signature *s)
	Check if a signature contains the filesha256 keyword.

int	SignatureIsFilesizeInspecting (const Signature *s)
	Check if a signature contains the filesize keyword.

int	SignatureIsIPOnly (DetectEngineCtx de_ctx, const Signature s)
	Test is a initialized signature is IP only.

void	PacketCreateMask (Packet p, SignatureMask mask, AppProto alproto, bool app_decoder_events)

void	SignatureSetType (DetectEngineCtx de_ctx, Signature s)

int	SigPrepareStage1 (DetectEngineCtx *de_ctx)
	Preprocess signature, classify ip-only, etc, build sig array.

int	SigPrepareStage2 (DetectEngineCtx *de_ctx)
	Fill the global src group head, with the sigs included.

int	SigPrepareStage3 (DetectEngineCtx *de_ctx)

int	SigAddressCleanupStage1 (DetectEngineCtx *de_ctx)

int	SigPrepareStage4 (DetectEngineCtx *de_ctx)
	finalize preparing sgh's

int	SigGroupBuild (DetectEngineCtx *de_ctx)
	Convert the signature list into the runtime match structure.

int	SigGroupCleanup (DetectEngineCtx *de_ctx)

Variables
bool	rule_engine_analysis_set

Macro Definition Documentation

◆ DETECT_PGSCORE_RULE_MPM_FAST_PATTERN

#define DETECT_PGSCORE_RULE_MPM_FAST_PATTERN 99 /* Rule contains an MPM fast pattern */

Definition at line 51 of file detect-engine-build.c.

◆ DETECT_PGSCORE_RULE_MPM_NEGATED

#define DETECT_PGSCORE_RULE_MPM_NEGATED 77 /* Rule contains a negated MPM */

Definition at line 52 of file detect-engine-build.c.

◆ DETECT_PGSCORE_RULE_NO_MPM

#define DETECT_PGSCORE_RULE_NO_MPM 55 /* Rule does not contain MPM */

Definition at line 53 of file detect-engine-build.c.

◆ DETECT_PGSCORE_RULE_PORT_PRIORITIZED

#define DETECT_PGSCORE_RULE_PORT_PRIORITIZED 111 /* Rule port group contains a priority port */

Definition at line 50 of file detect-engine-build.c.

◆ DETECT_PGSCORE_RULE_SYN_ONLY

#define DETECT_PGSCORE_RULE_SYN_ONLY 33 /* Rule needs SYN check */

Definition at line 54 of file detect-engine-build.c.

◆ MASK_TCP_INITDEINIT_FLAGS

#define MASK_TCP_INITDEINIT_FLAGS (TH_SYN|TH_RST|TH_FIN)

Definition at line 414 of file detect-engine-build.c.

◆ MASK_TCP_UNUSUAL_FLAGS

#define MASK_TCP_UNUSUAL_FLAGS (TH_URG|TH_ECN|TH_CWR)

Definition at line 415 of file detect-engine-build.c.

◆ RANGE_PORT

#define RANGE_PORT 1

Definition at line 1325 of file detect-engine-build.c.

◆ SINGLE_PORT

#define SINGLE_PORT 2

Definition at line 1326 of file detect-engine-build.c.

◆ UNDEFINED_PORT

#define UNDEFINED_PORT 0

Definition at line 1324 of file detect-engine-build.c.

Typedef Documentation

◆ UniquePortPoint

typedef struct UniquePortPoint_ UniquePortPoint

Function Documentation

◆ PacketCreateMask()

void PacketCreateMask	(	Packet *	p,
		SignatureMask *	mask,
		AppProto	alproto,
		bool	app_decoder_events
	)

◆ SigAddressCleanupStage1()

int SigAddressCleanupStage1 ( DetectEngineCtx * de_ctx )

Definition at line 1977 of file detect-engine-build.c.

References BUG_ON, de_ctx, DetectEngineCtx_::decoder_event_sgh, DetectPortCleanupList(), DetectEngineCtx_::flow_gh, FLOW_STATES, DetectEngineCtx_::io_ctx, IPOnlyDeinit(), DetectEngineCtx_::pre_flow_sgh, DetectEngineCtx_::pre_stream_sgh, SCFree, SCLogDebug, DetectEngineLookupFlow_::sgh, DetectEngineCtx_::sgh_array, DetectEngineCtx_::sgh_array_cnt, DetectEngineCtx_::sgh_array_size, SigGroupHeadFree(), DetectEngineLookupFlow_::tcp, and DetectEngineLookupFlow_::udp.

Referenced by SigGroupCleanup().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SigCleanSignatures()

void SigCleanSignatures ( DetectEngineCtx * de_ctx )

Definition at line 56 of file detect-engine-build.c.

References de_ctx, DetectEngineResetMaxSigId(), Signature_::next, DetectEngineCtx_::sig_list, and SigFree().

Referenced by DetectEngineCtxFree(), and UTHPacketMatchSig().

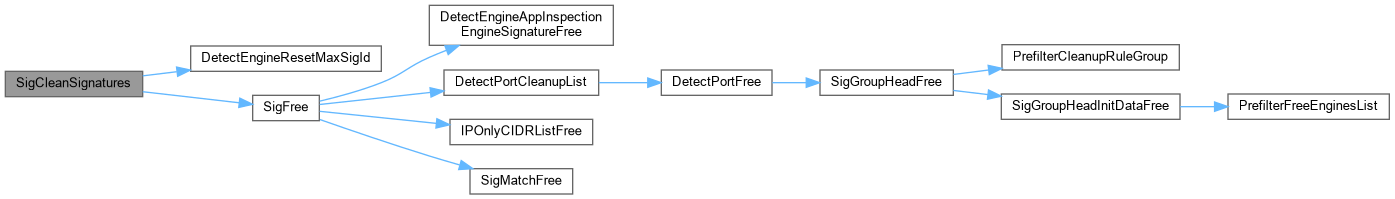

Here is the call graph for this function:

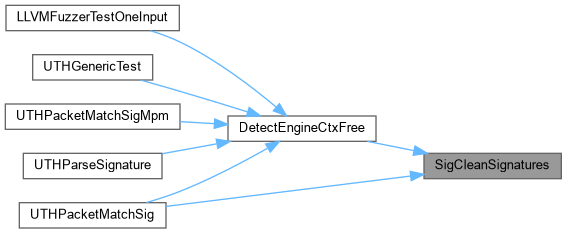

Here is the caller graph for this function:

◆ SigFindSignatureBySidGid()

Signature * SigFindSignatureBySidGid	(	DetectEngineCtx *	de_ctx,
		uint32_t	sid,
		uint32_t	gid
	)

Find a specific signature by sid and gid.

Parameters

de_ctx	detection engine ctx
sid	the signature id
gid	the signature group id

Return values

s	sig found
NULL	sig not found

Definition at line 80 of file detect-engine-build.c.

References de_ctx, and DetectEngineCtx_::sig_list.

◆ SigGroupBuild()

int SigGroupBuild ( DetectEngineCtx * de_ctx )

Convert the signature list into the runtime match structure.

Parameters

de_ctx Pointer to the Detection Engine Context whose Signatures have to be processed

Return values

0	On Success.
-1	On failure.

Definition at line 2204 of file detect-engine-build.c.

References de_ctx, DetectEngineMultiTenantEnabled(), DetectMpmPrepareAppMpms(), DetectMpmPrepareBuiltinMpms(), DetectMpmPrepareFrameMpms(), DetectMpmPreparePktMpms(), DetectSetFastPatternAndItsId(), EngineModeIsFirewall(), FatalError, FirewallAnalyzer(), Signature_::iid, Signature_::next, DetectEngineCtx_::profile_match_logging_threshold, SCConfGetInt(), SCProfilingKeywordInitCounters(), SCProfilingPrefilterInitCounters(), DetectEngineCtx_::sig_list, DetectEngineCtx_::signum, SigPrepareStage1(), SigPrepareStage2(), SigPrepareStage3(), SigPrepareStage4(), and VarNameStoreActivate().

Referenced by SigLoadSignatures(), UTHMatchPackets(), UTHMatchPacketsWithResults(), UTHPacketMatchSig(), and UTHPacketMatchSigMpm().

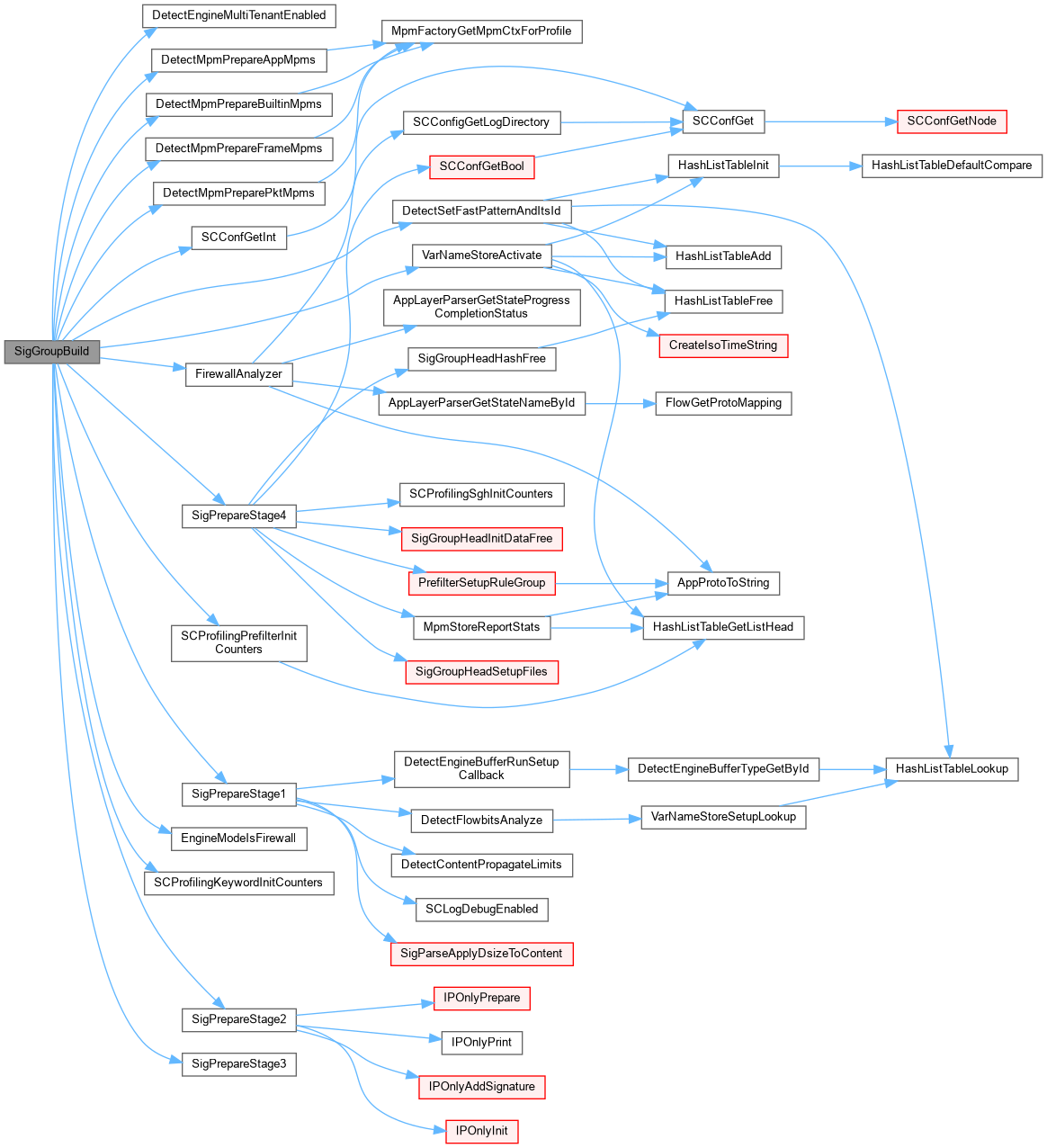

Here is the call graph for this function:

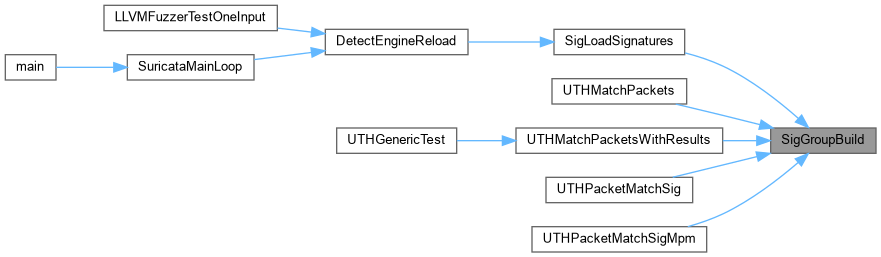

Here is the caller graph for this function:

◆ SigGroupCleanup()

int SigGroupCleanup ( DetectEngineCtx * de_ctx )

Definition at line 2275 of file detect-engine-build.c.

References de_ctx, and SigAddressCleanupStage1().

Referenced by DetectEngineCtxFree(), UTHMatchPackets(), and UTHPacketMatchSig().

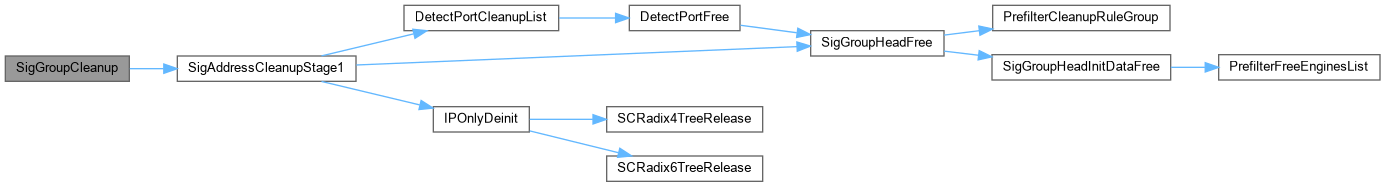

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SignatureIsFilemagicInspecting()

int SignatureIsFilemagicInspecting ( const Signature * s )

Check if a signature contains the filemagic keyword.

Parameters

s signature

Return values

0	no
1	yes

Definition at line 120 of file detect-engine-build.c.

References Signature_::file_flags, and FILE_SIG_NEED_MAGIC.

Referenced by SigGroupHeadSetupFiles().

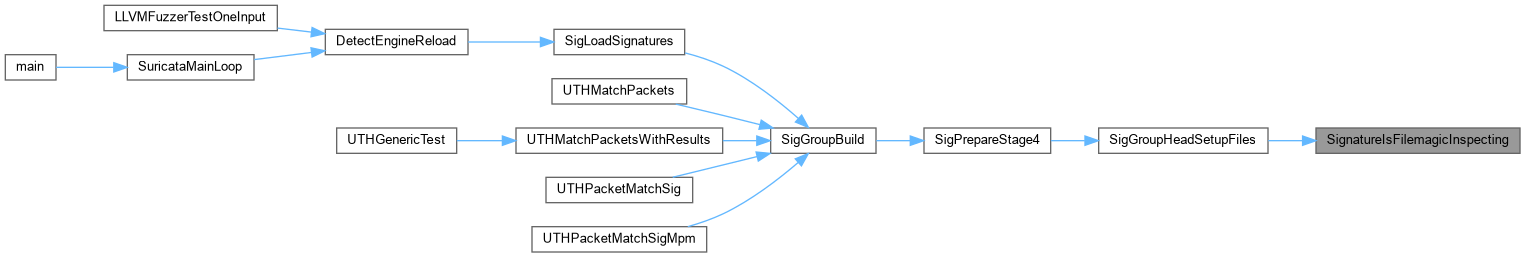

Here is the caller graph for this function:

◆ SignatureIsFileMd5Inspecting()

int SignatureIsFileMd5Inspecting ( const Signature * s )

Check if a signature contains the filemd5 keyword.

Parameters

s signature

Return values

0	no
1	yes

Definition at line 139 of file detect-engine-build.c.

References Signature_::file_flags, and FILE_SIG_NEED_MD5.

Referenced by SigGroupHeadSetupFiles().

Here is the caller graph for this function:

◆ SignatureIsFileSha1Inspecting()

int SignatureIsFileSha1Inspecting ( const Signature * s )

Check if a signature contains the filesha1 keyword.

Parameters

s signature

Return values

0	no
1	yes

Definition at line 155 of file detect-engine-build.c.

References Signature_::file_flags, and FILE_SIG_NEED_SHA1.

Referenced by SigGroupHeadSetupFiles().

Here is the caller graph for this function:

◆ SignatureIsFileSha256Inspecting()

int SignatureIsFileSha256Inspecting ( const Signature * s )

Check if a signature contains the filesha256 keyword.

Parameters

s signature

Return values

0	no
1	yes

Definition at line 171 of file detect-engine-build.c.

References Signature_::file_flags, and FILE_SIG_NEED_SHA256.

Referenced by SigGroupHeadSetupFiles().

Here is the caller graph for this function:

◆ SignatureIsFilesizeInspecting()

int SignatureIsFilesizeInspecting ( const Signature * s )

Check if a signature contains the filesize keyword.

Parameters

s signature

Return values

0	no
1	yes

Definition at line 187 of file detect-engine-build.c.

References Signature_::file_flags, and FILE_SIG_NEED_SIZE.

Referenced by SigGroupHeadSetupFiles().

Here is the caller graph for this function:

◆ SignatureIsFilestoring()

int SignatureIsFilestoring ( const Signature * s )

Check if a signature contains the filestore keyword.

Parameters

s signature

Return values

0	no
1	yes

Definition at line 101 of file detect-engine-build.c.

References Signature_::flags, and SIG_FLAG_FILESTORE.

Referenced by SigGroupHeadSetupFiles().

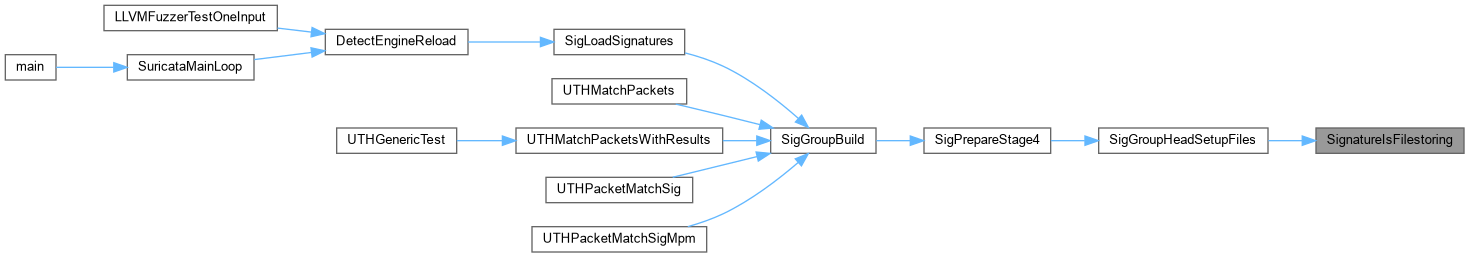

Here is the caller graph for this function:

◆ SignatureIsIPOnly()

int SignatureIsIPOnly	(	DetectEngineCtx *	de_ctx,
		const Signature *	s
	)

Test is a initialized signature is IP only.

Parameters

de_ctx	detection engine ctx
s	the signature

Return values

1	sig is ip only
2	sig is like ip only
0	sig is not ip only

Definition at line 210 of file detect-engine-build.c.

References Signature_::alproto, ALPROTO_UNKNOWN, SigMatch_::ctx, de_ctx, DE_QUIET, DETECT_FLOWBITS, DETECT_FLOWBITS_CMD_SET, DETECT_SM_LIST_MATCH, DETECT_SM_LIST_PMATCH, DETECT_SM_LIST_POSTMATCH, SignatureInitData_::dst_contains_negation, Signature_::flags, DetectEngineCtx_::flags, SigTableElmt_::flags, SignatureInitData_::hook, Signature_::id, Signature_::init_data, SigMatch_::next, SCLogDebug, SCReturnInt, SIG_FLAG_APPLAYER, SIG_FLAG_DST_ANY, SIG_FLAG_SRC_ANY, SIG_FLAG_TOCLIENT, SIG_FLAG_TOSERVER, SIGMATCH_IPONLY_COMPAT, sigmatch_table, SIGNATURE_HOOK_TYPE_NOT_SET, SignatureInitData_::smlists, SignatureInitData_::src_contains_negation, SigMatch_::type, and SignatureHook_::type.

Referenced by SignatureSetType().

Here is the caller graph for this function:

◆ SignatureSetType()

void SignatureSetType	(	DetectEngineCtx *	de_ctx,
		Signature *	s
	)

Definition at line 1655 of file detect-engine-build.c.

References SignatureInitData_::buffer_index, SignatureInitData_::buffers, BUG_ON, de_ctx, DETECT_SM_LIST_MATCH, DETECT_SM_LIST_PMATCH, DetectEngineBufferTypeSupportsFramesGetById(), DetectEngineBufferTypeSupportsPacketGetById(), Signature_::flags, SignatureInitData_::hook, SignatureInitDataBuffer_::id, Signature_::id, Signature_::init_data, SCLogDebug, SCReturn, SIG_FLAG_APPLAYER, SIG_FLAG_REQUIRE_PACKET, SIG_FLAG_REQUIRE_STREAM, SIG_TYPE_APP_TX, SIG_TYPE_APPLAYER, SIG_TYPE_DEONLY, SIG_TYPE_IPONLY, SIG_TYPE_LIKE_IPONLY, SIG_TYPE_NOT_SET, SIG_TYPE_PDONLY, SIG_TYPE_PKT, SIG_TYPE_PKT_STREAM, SIG_TYPE_STREAM, SIGNATURE_HOOK_TYPE_APP, SignatureIsIPOnly(), SignatureInitData_::smlists, SignatureHook_::type, and Signature_::type.

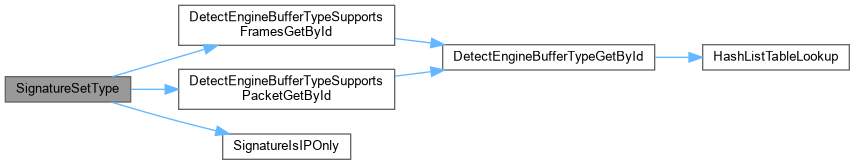

Here is the call graph for this function:

◆ SigPrepareStage1()

int SigPrepareStage1 ( DetectEngineCtx * de_ctx )

Preprocess signature, classify ip-only, etc, build sig array.

Parameters

de_ctx Pointer to the Detection Engine Context

Return values

0	on success
-1	on failure

Definition at line 1733 of file detect-engine-build.c.

References SignatureInitData_::buffer_index, SignatureInitData_::buffers, DetectEngineCtx_::config_prefix, DetectContentData_::content_len, SigMatch_::ctx, de_ctx, DE_QUIET, DETECT_CONTENT, DETECT_SM_LIST_MATCH, DETECT_SM_LIST_MAX, DetectContentPropagateLimits(), DetectEngineBufferRunSetupCallback(), DetectEngineGetMaxSigId, DetectFlowbitsAnalyze(), Signature_::flags, DetectEngineCtx_::flags, SignatureInitDataBuffer_::id, Signature_::id, Signature_::iid, Signature_::init_data, SigMatch_::next, Signature_::next, proto, DetectProto_::proto, Signature_::proto, SCCalloc, SCLogConfig, SCLogDebug, SCLogDebugEnabled(), SCLogInfo, DetectEngineCtx_::sig_array, DetectEngineCtx_::sig_array_len, DetectEngineCtx_::sig_cnt, SIG_FLAG_APPLAYER, SIG_FLAG_MPM_NEG, DetectEngineCtx_::sig_list, SIG_TYPE_DEONLY, SIG_TYPE_IPONLY, SIG_TYPE_PDONLY, SigParseApplyDsizeToContent(), SignatureInitData_::smlists, DetectEngineCtx_::tenant_id, SigMatch_::type, and Signature_::type.

Referenced by SigGroupBuild().

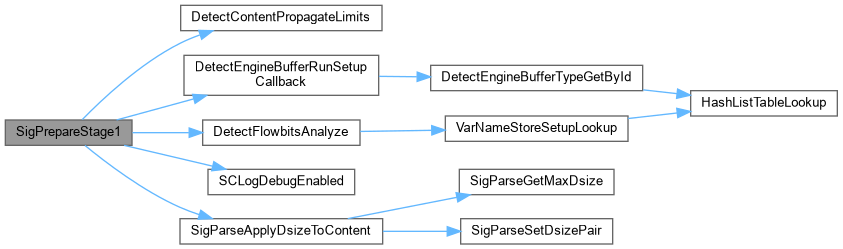

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SigPrepareStage2()

int SigPrepareStage2 ( DetectEngineCtx * de_ctx )

Fill the global src group head, with the sigs included.

Parameters

de_ctx Pointer to the Detection Engine Context whose Signatures have to be processed

Return values

0	On success
-1	On failure

Definition at line 1887 of file detect-engine-build.c.

References de_ctx, DetectEngineCtx_::flow_gh, SignatureInitData_::hook, Signature_::id, Signature_::init_data, DetectEngineCtx_::io_ctx, IPOnlyAddSignature(), IPOnlyInit(), IPOnlyPrepare(), IPOnlyPrint(), Signature_::next, SignatureHook_::ph, SignatureHook_::pkt, SCLogDebug, SIG_FLAG_TOCLIENT, SIG_FLAG_TOSERVER, DetectEngineCtx_::sig_list, SIG_TYPE_DEONLY, SIG_TYPE_IPONLY, SIG_TYPE_PKT, SIGNATURE_HOOK_PKT_PRE_FLOW, SIGNATURE_HOOK_PKT_PRE_STREAM, SIGNATURE_HOOK_TYPE_PKT, SignatureHook_::t, DetectEngineLookupFlow_::tcp, SignatureHook_::type, Signature_::type, and DetectEngineLookupFlow_::udp.

Referenced by SigGroupBuild().

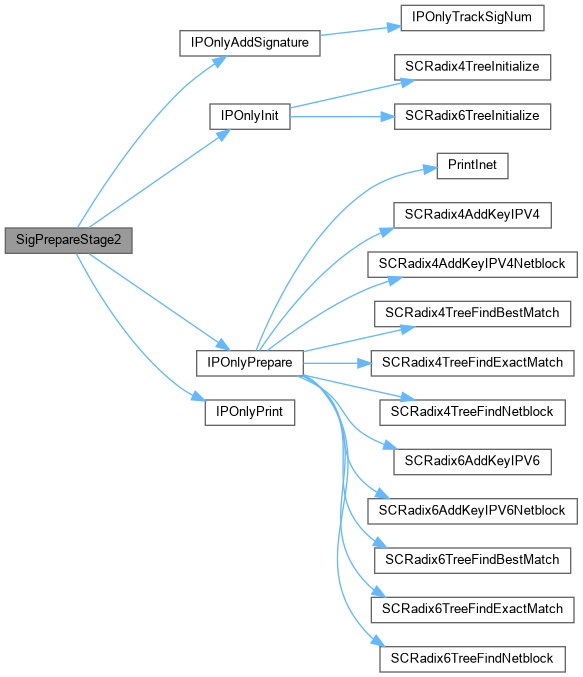

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SigPrepareStage3()

int SigPrepareStage3 ( DetectEngineCtx * de_ctx )

Definition at line 1963 of file detect-engine-build.c.

References de_ctx.

Referenced by SigGroupBuild().

Here is the caller graph for this function:

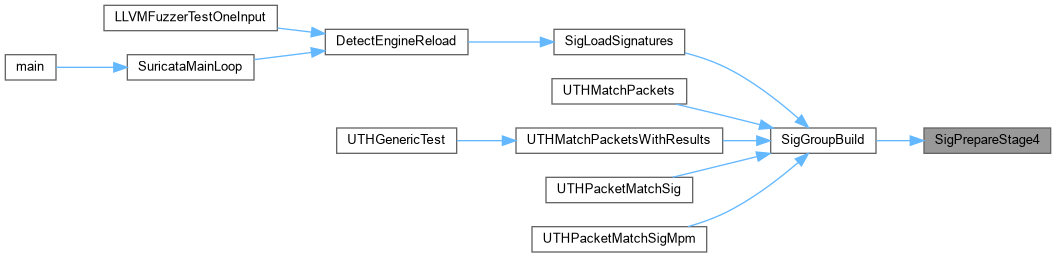

◆ SigPrepareStage4()

int SigPrepareStage4 ( DetectEngineCtx * de_ctx )

finalize preparing sgh's

Definition at line 2060 of file detect-engine-build.c.

References cnt, de_ctx, DetectEngineCtx_::decoder_event_sgh, SigGroupHead_::filestore_cnt, SigGroupHead_::id, SigGroupHead_::init, MpmStoreReportStats(), PrefilterSetupRuleGroup(), SCConfGetBool(), SCEnter, SCLogDebug, SCLogPerf, SCProfilingSghInitCounters(), SCReturnInt, DetectEngineCtx_::sgh_array, DetectEngineCtx_::sgh_array_cnt, SigGroupHeadHashFree(), SigGroupHeadInitDataFree(), and SigGroupHeadSetupFiles().

Referenced by SigGroupBuild().

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

◆ rule_engine_analysis_set

bool rule_engine_analysis_set

extern

Definition at line 56 of file detect-engine-loader.c.

Data Structures

Macros

Typedefs

Functions

Variables

Macro Definition Documentation

◆ DETECT_PGSCORE_RULE_MPM_FAST_PATTERN

◆ DETECT_PGSCORE_RULE_MPM_NEGATED

◆ DETECT_PGSCORE_RULE_NO_MPM

◆ DETECT_PGSCORE_RULE_PORT_PRIORITIZED

◆ DETECT_PGSCORE_RULE_SYN_ONLY

◆ MASK_TCP_INITDEINIT_FLAGS

◆ MASK_TCP_UNUSUAL_FLAGS

◆ RANGE_PORT

◆ SINGLE_PORT

◆ UNDEFINED_PORT

Typedef Documentation

◆ UniquePortPoint

Function Documentation

◆ PacketCreateMask()

◆ SigAddressCleanupStage1()

◆ SigCleanSignatures()

◆ SigFindSignatureBySidGid()

◆ SigGroupBuild()

◆ SigGroupCleanup()

◆ SignatureIsFilemagicInspecting()

◆ SignatureIsFileMd5Inspecting()

◆ SignatureIsFileSha1Inspecting()

◆ SignatureIsFileSha256Inspecting()

◆ SignatureIsFilesizeInspecting()

◆ SignatureIsFilestoring()

◆ SignatureIsIPOnly()

◆ SignatureSetType()

◆ SigPrepareStage1()

◆ SigPrepareStage2()

◆ SigPrepareStage3()

◆ SigPrepareStage4()

Variable Documentation

◆ rule_engine_analysis_set
