detect-flow.c File Reference

#include "suricata-common.h"
#include "decode.h"
#include "detect.h"
#include "detect-parse.h"
#include "detect-engine.h"
#include "detect-engine-prefilter-common.h"
#include "detect-engine-build.h"
#include "flow.h"
#include "flow-var.h"
#include "detect-flow.h"
#include "util-unittest.h"
#include "util-unittest-helper.h"
#include "util-debug.h"
#include "detect-engine-alert.h"

Include dependency graph for detect-flow.c:

Go to the source code of this file.

Macros
#define	PARSE_REGEX   "^\\s*([A-z_]+)\\s*(?:,\\s*([A-z_]+))?\\s*(?:,\\s*([A-z_]+))?\\s*$"
	Regex for parsing our flow options.
#define	SIG_FLAG_BOTH   (SIG_FLAG_TOSERVER|SIG_FLAG_TOCLIENT)

Functions
int	DetectFlowMatch (DetectEngineThreadCtx *det_ctx, Packet *p, const Signature *s, const SigMatchCtx *ctx)
	This function is used to match flow flags set on a packet with those passed via flow:
void	DetectFlowFree (DetectEngineCtx *de_ctx, void *ptr)
	this function will free memory associated with DetectFlowData
void	DetectFlowRegister (void)
	Registration function for flow: keyword.
int	DetectFlowSetupImplicit (Signature *s, uint32_t flags)

Detailed Description

Author

Victor Julien victo.nosp@m.r@in.nosp@m.linia.nosp@m.c.ne.nosp@m.t

FLOW part of the detection engine.

Definition in file detect-flow.c.

Macro Definition Documentation

PARSE_REGEX

#define PARSE_REGEX   "^\\s*([A-z_]+)\\s*(?:,\\s*([A-z_]+))?\\s*(?:,\\s*([A-z_]+))?\\s*$"

Regex for parsing our flow options.

Definition at line 47 of file detect-flow.c.

SIG_FLAG_BOTH

#define SIG_FLAG_BOTH   (SIG_FLAG_TOSERVER|SIG_FLAG_TOCLIENT)

Function Documentation

DetectFlowFree()

void DetectFlowFree	(	DetectEngineCtx *	de_ctx,
		void *	ptr
	)

this function will free memory associated with DetectFlowData

Parameters

fd	pointer to DetectFlowData

Definition at line 465 of file detect-flow.c.

References SCFree.

Referenced by DetectFlowRegister().

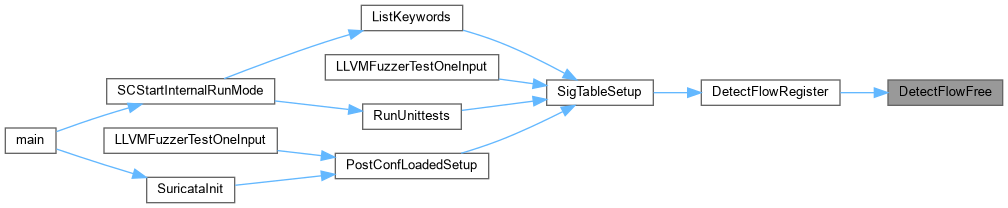

Here is the caller graph for this function:

DetectFlowMatch()

int DetectFlowMatch	(	DetectEngineThreadCtx *	det_ctx,
		Packet *	p,
		const Signature *	s,
		const SigMatchCtx *	ctx
	)

This function is used to match flow flags set on a packet with those passed via flow:

Parameters

t	pointer to thread vars
det_ctx	pointer to the pattern matcher thread
p	pointer to the current packet
m	pointer to the sigmatch that we will cast into DetectFlowData

Return values

0	no match
1	match

Definition at line 134 of file detect-flow.c.

References ctx, Packet_::flags, DetectFlowData_::flags, FLOW_PKT_ESTABLISHED, FLOW_PKT_TOCLIENT, FLOW_PKT_TOSERVER, Packet_::flowflags, DetectFlowData_::match_cnt, SCEnter, SCLogDebug, and SCReturnInt.

Referenced by DetectFlowRegister().

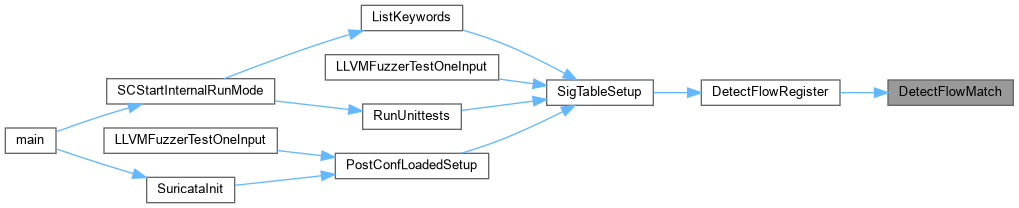

Here is the caller graph for this function:

DetectFlowRegister()

void DetectFlowRegister

(

void

)

Registration function for flow: keyword.

Definition at line 65 of file detect-flow.c.

References SigTableElmt_::desc, DETECT_FLOW, DETECT_TABLE_APP_FILTER_FLAG, DETECT_TABLE_APP_TD_FLAG, DETECT_TABLE_PACKET_FILTER_FLAG, DETECT_TABLE_PACKET_PRE_STREAM_FLAG, DETECT_TABLE_PACKET_TD_FLAG, DetectFlowFree(), DetectFlowMatch(), DetectSetupParseRegexes(), SigTableElmt_::flags, SigTableElmt_::Free, SigTableElmt_::Match, SigTableElmt_::name, PARSE_REGEX, SigTableElmt_::RegisterTests, SigTableElmt_::Setup, SigTableElmt_::SetupPrefilter, SIGMATCH_SUPPORT_FIREWALL, sigmatch_table, SigTableElmt_::SupportsPrefilter, SigTableElmt_::tables, and SigTableElmt_::url.

Referenced by SigTableSetup().

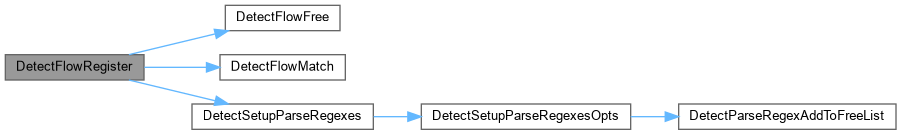

Here is the call graph for this function:

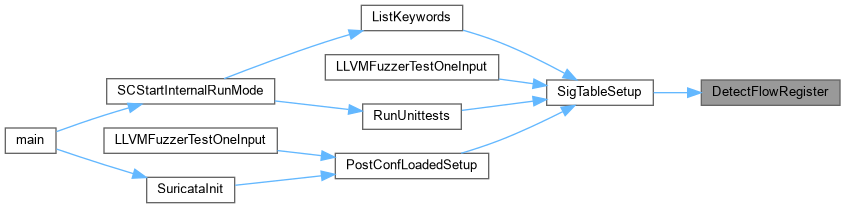

Here is the caller graph for this function:

DetectFlowSetupImplicit()

int DetectFlowSetupImplicit	(	Signature *	s,
		uint32_t	flags
	)

Definition at line 341 of file detect-flow.c.

References BUG_ON, flags, Signature_::flags, SCLogDebug, SIG_FLAG_BOTH, SIG_FLAG_TOCLIENT, and SIG_FLAG_TOSERVER.
