detect-pcre.h File Reference

#include "detect-parse.h"

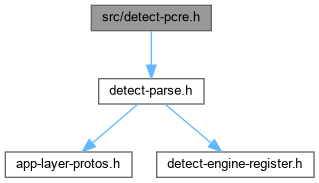

Include dependency graph for detect-pcre.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	DetectPcreData_

Macros
#define	DETECT_PCRE_RELATIVE   0x00001
#define	DETECT_PCRE_RAWBYTES   0x00002
#define	DETECT_PCRE_CASELESS   0x00004
#define	DETECT_PCRE_RELATIVE_NEXT   0x00040
#define	DETECT_PCRE_NEGATE   0x00080
#define	DETECT_PCRE_CAPTURE_MAX   8
#define	SC_MATCH_LIMIT_DEFAULT   3500
#define	SC_MATCH_LIMIT_RECURSION_DEFAULT   1500

Typedefs
typedef struct DetectPcreData_	DetectPcreData

Functions
int	DetectPcrePayloadMatch (DetectEngineThreadCtx *, const Signature *, const SigMatchData *, Packet *, Flow *, const uint8_t *, uint32_t)
	Match a regex on a single payload.
void	DetectPcreRegister (void)

Detailed Description

Author

Victor Julien victo.nosp@m.r@in.nosp@m.linia.nosp@m.c.ne.nosp@m.t

Definition in file detect-pcre.h.

Macro Definition Documentation

DETECT_PCRE_CAPTURE_MAX

#define DETECT_PCRE_CAPTURE_MAX   8

Definition at line 37 of file detect-pcre.h.

DETECT_PCRE_CASELESS

#define DETECT_PCRE_CASELESS   0x00004

Definition at line 32 of file detect-pcre.h.

DETECT_PCRE_NEGATE

#define DETECT_PCRE_NEGATE   0x00080

Definition at line 35 of file detect-pcre.h.

DETECT_PCRE_RAWBYTES

#define DETECT_PCRE_RAWBYTES   0x00002

Definition at line 31 of file detect-pcre.h.

DETECT_PCRE_RELATIVE

#define DETECT_PCRE_RELATIVE   0x00001

Definition at line 29 of file detect-pcre.h.

DETECT_PCRE_RELATIVE_NEXT

#define DETECT_PCRE_RELATIVE_NEXT   0x00040

Definition at line 34 of file detect-pcre.h.

SC_MATCH_LIMIT_DEFAULT

#define SC_MATCH_LIMIT_DEFAULT   3500

Definition at line 43 of file detect-pcre.h.

SC_MATCH_LIMIT_RECURSION_DEFAULT

#define SC_MATCH_LIMIT_RECURSION_DEFAULT   1500

Definition at line 44 of file detect-pcre.h.

Typedef Documentation

DetectPcreData

typedef struct DetectPcreData_ DetectPcreData

Function Documentation

DetectPcrePayloadMatch()

int DetectPcrePayloadMatch	(	DetectEngineThreadCtx *	det_ctx,
		const Signature *	s,
		const SigMatchData *	smd,
		Packet *	p,
		Flow *	f,
		const uint8_t *	payload,
		uint32_t	payload_len
	)

Match a regex on a single payload.

Parameters

det_ctx	Thread detection ctx.
s	Signature.
sm	Sig match to match against.
p	Packet to set PktVars if any.
f	Flow to set FlowVars if any.
payload	Payload to inspect.
payload_len	Length of the payload.

Return values

1	Match.
0	No match.

Definition at line 222 of file detect-pcre.c.

References DetectEngineThreadCtx_::buffer_offset, BUG_ON, DetectPcreData_::capids, DetectPcreData_::captypes, SigMatchData_::ctx, DETECT_PCRE_NEGATE, DETECT_PCRE_RELATIVE, DETECT_VAR_TYPE_FLOW_POSTMATCH, DETECT_VAR_TYPE_PKT_POSTMATCH, DetectThreadCtxGetKeywordThreadCtx(), DetectVarStoreMatch(), DetectVarStoreMatchKeyValue(), DetectPcreData_::flags, DetectPcreData_::idx, len, payload_len, DetectEngineThreadCtx_::pcre_match_start_offset, SCEnter, SCFree, SCLogDebug, SCMalloc, SCReturnInt, DetectPcreData_::thread_ctx_id, unlikely, VAR_TYPE_ALERT_VAR, VAR_TYPE_FLOW_VAR, VAR_TYPE_PKT_VAR, and VAR_TYPE_PKT_VAR_KV.

Here is the call graph for this function:

DetectPcreRegister()

void DetectPcreRegister

(

void

)

Definition at line 97 of file detect-pcre.c.

References SigTableElmt_::desc, DETECT_PCRE, DetectSetupPCRE2(), FatalError, SigTableElmt_::flags, SigTableElmt_::Free, SigTableElmt_::Match, SigTableElmt_::name, PageSupportsRWX, PARSE_CAPTURE_REGEX, PARSE_REGEX, SigTableElmt_::RegisterTests, SC_MATCH_LIMIT_DEFAULT, SC_MATCH_LIMIT_RECURSION_DEFAULT, SCConfGetInt(), SCLogConfig, SCLogDebug, SCLogInfo, SigTableElmt_::Setup, SIGMATCH_HANDLE_NEGATION, SIGMATCH_QUOTES_OPTIONAL, sigmatch_table, and SigTableElmt_::url.

Referenced by SigTableSetup().

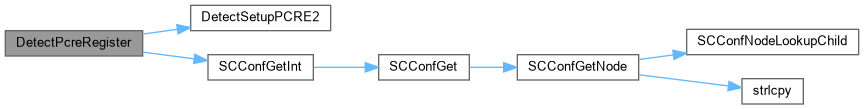

Here is the call graph for this function:

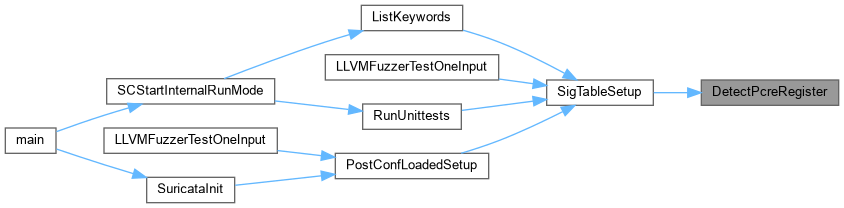

Here is the caller graph for this function:
