flow-util.h File Reference

#include "flow.h"
#include "stream-tcp-private.h"

Include dependency graph for flow-util.h:

Go to the source code of this file.

Data Structures
struct	FlowEndCounters_

Macros
#define	RESET_COUNTERS(f)
#define	FLOW_INITIALIZE(f)
#define	FLOW_RECYCLE(f)
	macro to recycle a flow before it goes into the spare queue for reuse.
#define	FLOW_DESTROY(f)
#define	FLOW_CHECK_MEMCAP(size)
	check if a memory alloc would fit in the memcap

Typedefs
typedef struct FlowEndCounters_	FlowEndCounters

Functions
Flow *	FlowAlloc (void)
	allocate a flow
void	FlowFree (Flow *)
	cleanup & free the memory of a flow
uint8_t	FlowGetProtoMapping (uint8_t)
	Function to map the protocol to the defined FLOW_PROTO_* enumeration.
void	FlowInit (ThreadVars *, Flow *, const Packet *)
uint8_t	FlowGetReverseProtoMapping (uint8_t rproto)
void	FlowEndCountersRegister (ThreadVars *t, FlowEndCounters *fec)

Detailed Description

Author

Victor Julien victo.nosp@m.r@in.nosp@m.linia.nosp@m.c.ne.nosp@m.t

Definition in file flow-util.h.

Macro Definition Documentation

FLOW_CHECK_MEMCAP

#define FLOW_CHECK_MEMCAP

(

size

)

Value:

    ((((uint64_t)SC_ATOMIC_GET(flow_memuse) + (uint64_t)(size)) <=                                 \
            SC_ATOMIC_GET(flow_config.memcap)))

check if a memory alloc would fit in the memcap

Parameters

size	memory allocation size to check

Return values

1	it fits
0	no fit

Definition at line 134 of file flow-util.h.

FLOW_DESTROY

#define FLOW_DESTROY

(

f

)

Value:

    do {                                                                                           \
        FlowCleanupAppLayer((f));                                                                  \
                                                                                                   \
        FLOWLOCK_DESTROY((f));                                                                     \
        GenericVarFree((f)->flowvar);                                                              \
    } while (0)

Definition at line 119 of file flow-util.h.

FLOW_INITIALIZE

#define FLOW_INITIALIZE

(

f

)

Definition at line 38 of file flow-util.h.

FLOW_RECYCLE

#define FLOW_RECYCLE

(

f

)

macro to recycle a flow before it goes into the spare queue for reuse.

Note that the lnext, lprev, hnext fields are untouched, those are managed by the queueing code. Same goes for fb (FlowBucket ptr) field.

Definition at line 80 of file flow-util.h.

RESET_COUNTERS

#define RESET_COUNTERS

(

f

)

Value:

    do {                                                                                           \
        (f)->todstpktcnt = 0;                                                                      \
        (f)->tosrcpktcnt = 0;                                                                      \
        (f)->todstbytecnt = 0;                                                                     \
        (f)->tosrcbytecnt = 0;                                                                     \
    } while (0)

Definition at line 30 of file flow-util.h.

Typedef Documentation

FlowEndCounters

typedef struct FlowEndCounters_ FlowEndCounters

Function Documentation

FlowAlloc()

Flow * FlowAlloc

(

void

)

allocate a flow

We check against the memuse counter. If it passes that check we increment the counter first, then we try to alloc.

Return values

f	the flow or NULL on out of memory

Definition at line 56 of file flow-util.c.

References FLOW_CHECK_MEMCAP, FLOW_INITIALIZE, FlowStorageSize(), SC_ATOMIC_ADD, SC_ATOMIC_SUB, SCCalloc, and unlikely.

Referenced by FlowGetFromFlowKey(), and LLVMFuzzerTestOneInput().

Here is the call graph for this function:

Here is the caller graph for this function:

FlowEndCountersRegister()

void FlowEndCountersRegister	(	ThreadVars *	t,
		FlowEndCounters *	fec
	)

Definition at line 246 of file flow-util.c.

References FlowEndCounters_::flow_state, FLOW_STATE_CLOSED, FLOW_STATE_ESTABLISHED, FLOW_STATE_LOCAL_BYPASSED, FLOW_STATE_NEW, FLOW_STATE_SIZE, FlowEndCounters_::flow_tcp_liberal, FlowEndCounters_::flow_tcp_state, name, StatsRegisterCounter(), TCP_CLOSE_WAIT, TCP_CLOSED, TCP_CLOSING, TCP_ESTABLISHED, TCP_FIN_WAIT1, TCP_FIN_WAIT2, TCP_LAST_ACK, TCP_NONE, TCP_SYN_RECV, TCP_SYN_SENT, and TCP_TIME_WAIT.

Here is the call graph for this function:

FlowFree()

void FlowFree

(

Flow *

f

)

cleanup & free the memory of a flow

Parameters

f	flow to clear & destroy

Definition at line 84 of file flow-util.c.

References FLOW_DESTROY, FlowStorageSize(), SC_ATOMIC_SUB, and SCFree.

Referenced by FlowReset(), FlowShutdown(), FlowSparePoolDestroy(), FlowSparePoolUpdate(), LLVMFuzzerTestOneInput(), and UTHBuildPacketOfFlows().

Here is the call graph for this function:

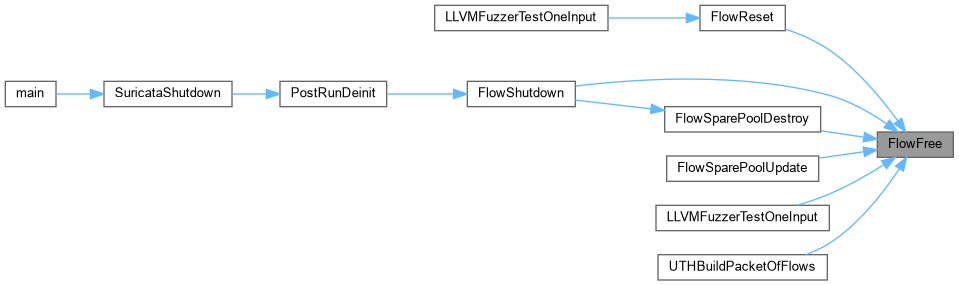

Here is the caller graph for this function:

FlowGetProtoMapping()

uint8_t FlowGetProtoMapping

(

uint8_t

proto

)

Function to map the protocol to the defined FLOW_PROTO_* enumeration.

Parameters

proto

protocol which is needed to be mapped

Definition at line 99 of file flow-util.c.

References FLOW_PROTO_DEFAULT, FLOW_PROTO_ICMP, FLOW_PROTO_TCP, FLOW_PROTO_UDP, and proto.

Referenced by AppLayerGetTxIterator(), AppLayerParserApplyTxConfig(), AppLayerParserDestroyProtocolParserLocalStorage(), AppLayerParserGetEventInfo(), AppLayerParserGetEventInfoById(), AppLayerParserGetFirstDataDir(), AppLayerParserGetFrameIdByName(), AppLayerParserGetFrameNameById(), AppLayerParserGetProtocolParserLocalStorage(), AppLayerParserGetStateData(), AppLayerParserGetStateIdByName(), AppLayerParserGetStateNameById(), AppLayerParserGetStateProgress(), AppLayerParserGetTx(), AppLayerParserGetTxData(), AppLayerParserParse(), AppLayerParserProtocolGetLoggerBits(), AppLayerParserProtocolHasLogger(), AppLayerParserProtoIsRegistered(), AppLayerParserRegisterApplyTxConfigFunc(), AppLayerParserRegisterGetEventInfo(), AppLayerParserRegisterGetEventInfoById(), AppLayerParserRegisterGetFrameFuncs(), AppLayerParserRegisterGetStateFuncs(), AppLayerParserRegisterGetStateProgressFunc(), AppLayerParserRegisterGetTx(), AppLayerParserRegisterGetTxCnt(), AppLayerParserRegisterGetTxFilesFunc(), AppLayerParserRegisterGetTxIterator(), AppLayerParserRegisterLocalStorageFunc(), AppLayerParserRegisterLoggerBits(), AppLayerParserRegisterOptionFlags(), AppLayerParserRegisterParser(), AppLayerParserRegisterProtocolUnittests(), AppLayerParserRegisterSetStreamDepthFlag(), AppLayerParserRegisterStateDataFunc(), AppLayerParserRegisterStateFuncs(), AppLayerParserRegisterTxDataFunc(), AppLayerParserRegisterTxFreeFunc(), AppLayerParserSetStreamDepthFlag(), AppLayerParserSupportsFiles(), AppLayerRegisterThreadCounters(), AppLayerSetupCounters(), FlowGetFromFlowKey(), FlowInit(), FlowReset(), FlowSetProtoFreeFunc(), FlowShutdown(), LLVMFuzzerTestOneInput(), SCAppLayerParserRegisterLogger(), SCAppLayerParserRegisterParserAcceptableDataDirection(), and SCAppLayerParserSetStreamDepth().

FlowGetReverseProtoMapping()

uint8_t FlowGetReverseProtoMapping

(

uint8_t

rproto

)

Definition at line 113 of file flow-util.c.

References FLOW_PROTO_ICMP, FLOW_PROTO_TCP, and FLOW_PROTO_UDP.

Referenced by AppLayerParserThreadCtxAlloc(), and AppLayerParserThreadCtxFree().

Here is the caller graph for this function:

FlowInit()

void FlowInit	(	ThreadVars *	tv,
		Flow *	f,
		const Packet *	p
	)

Definition at line 147 of file flow-util.c.

References Packet_::code, Flow_::code, DEBUG_VALIDATE_BUG_ON, Packet_::dp, Flow_::dp, Flow_::dst, Flow_::esp, ESP_GET_SPI, Flow_::flags, FLOW_IPV4, FLOW_IPV6, FLOW_SET_IPV4_DST_ADDR_FROM_PACKET, FLOW_SET_IPV4_SRC_ADDR_FROM_PACKET, FLOW_SET_IPV6_DST_ADDR_FROM_PACKET, FLOW_SET_IPV6_SRC_ADDR_FROM_PACKET, FlowGetProtoMapping(), FlowGetStorageById(), FlowRateGetStorageID(), FlowRateStorageEnabled(), FlowRateStoreInit(), FlowSetStorageById(), Packet_::icmp_s, Flow_::icmp_s, ThreadVars_::id, IPV4_GET_RAW_IPTTL, IPV6_GET_RAW_HLIM, Packet_::livedev, Flow_::livedev, MacSetFlowStorageEnabled(), MacSetGetFlowStorageID(), MacSetInit(), Flow_::max_ttl_toserver, Flow_::min_ttl_toserver, Packet_::proto, Flow_::proto, Flow_::protomap, Packet_::recursion_level, Flow_::recursion_level, SCEnter, SCFlowRunInitCallbacks(), SCLogDebug, SCReturn, Packet_::sp, Flow_::sp, Flow_::spi, Flow_::src, Flow_::startts, Flow_::thread_id, Flow_::timeout_policy, Packet_::ts, tv, Packet_::type, Flow_::type, Packet_::vlan_id, Flow_::vlan_id, Packet_::vlan_idx, and Flow_::vlan_idx.

Referenced by FlowGetFlowFromHash().

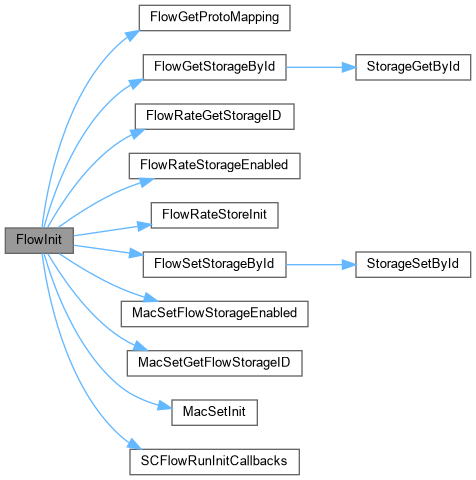

Here is the call graph for this function:

Here is the caller graph for this function:
