output-json-http.c File Reference

#include "suricata-common.h"
#include "detect.h"
#include "pkt-var.h"
#include "conf.h"
#include "threads.h"
#include "threadvars.h"
#include "tm-threads.h"
#include "util-print.h"
#include "util-unittest.h"
#include "util-debug.h"
#include "output.h"
#include "app-layer-htp.h"
#include "app-layer-htp-file.h"
#include "app-layer-htp-xff.h"
#include "app-layer.h"
#include "app-layer-parser.h"
#include "util-privs.h"
#include "util-buffer.h"
#include "util-proto-name.h"
#include "util-logopenfile.h"
#include "util-time.h"
#include "output-json.h"
#include "output-json-alert.h"
#include "output-json-http.h"
#include "util-byte.h"

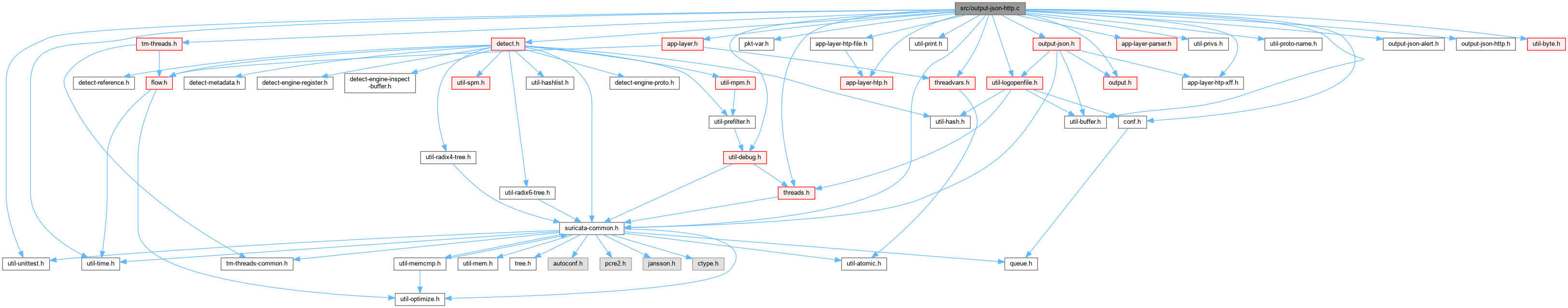

Include dependency graph for output-json-http.c:

Go to the source code of this file.

Data Structures
struct	LogHttpFileCtx_
struct	JsonHttpLogThread_

Macros
#define	MAX_SIZE_HEADER_NAME   256
#define	MAX_SIZE_HEADER_VALUE   2048
#define	LOG_HTTP_DEFAULT   0
#define	LOG_HTTP_EXTENDED   1
#define	LOG_HTTP_REQUEST   2 /* request field */
#define	LOG_HTTP_ARRAY   4 /* require array handling */
#define	LOG_HTTP_REQ_HEADERS   8
#define	LOG_HTTP_RES_HEADERS   16

Typedefs
typedef struct LogHttpFileCtx_	LogHttpFileCtx
typedef struct JsonHttpLogThread_	JsonHttpLogThread

Enumerations
enum	HttpField {   HTTP_FIELD_ACCEPT = 0 , HTTP_FIELD_ACCEPT_CHARSET , HTTP_FIELD_ACCEPT_ENCODING , HTTP_FIELD_ACCEPT_LANGUAGE ,   HTTP_FIELD_ACCEPT_DATETIME , HTTP_FIELD_AUTHORIZATION , HTTP_FIELD_CACHE_CONTROL , HTTP_FIELD_COOKIE ,   HTTP_FIELD_FROM , HTTP_FIELD_MAX_FORWARDS , HTTP_FIELD_ORIGIN , HTTP_FIELD_PRAGMA ,   HTTP_FIELD_PROXY_AUTHORIZATION , HTTP_FIELD_RANGE , HTTP_FIELD_TE , HTTP_FIELD_VIA ,   HTTP_FIELD_X_REQUESTED_WITH , HTTP_FIELD_DNT , HTTP_FIELD_X_FORWARDED_PROTO , HTTP_FIELD_X_AUTHENTICATED_USER ,   HTTP_FIELD_X_FLASH_VERSION , HTTP_FIELD_ACCEPT_RANGES , HTTP_FIELD_AGE , HTTP_FIELD_ALLOW ,   HTTP_FIELD_CONNECTION , HTTP_FIELD_CONTENT_ENCODING , HTTP_FIELD_CONTENT_LANGUAGE , HTTP_FIELD_CONTENT_LENGTH ,   HTTP_FIELD_CONTENT_LOCATION , HTTP_FIELD_CONTENT_MD5 , HTTP_FIELD_CONTENT_RANGE , HTTP_FIELD_CONTENT_TYPE ,   HTTP_FIELD_DATE , HTTP_FIELD_ETAG , HTTP_FIELD_EXPIRES , HTTP_FIELD_LAST_MODIFIED ,   HTTP_FIELD_LINK , HTTP_FIELD_LOCATION , HTTP_FIELD_PROXY_AUTHENTICATE , HTTP_FIELD_REFERRER ,   HTTP_FIELD_REFRESH , HTTP_FIELD_RETRY_AFTER , HTTP_FIELD_SERVER , HTTP_FIELD_SET_COOKIE ,   HTTP_FIELD_TRAILER , HTTP_FIELD_TRANSFER_ENCODING , HTTP_FIELD_UPGRADE , HTTP_FIELD_VARY ,   HTTP_FIELD_WARNING , HTTP_FIELD_WWW_AUTHENTICATE , HTTP_FIELD_TRUE_CLIENT_IP , HTTP_FIELD_ORG_SRC_IP ,   HTTP_FIELD_X_BLUECOAT_VIA , HTTP_FIELD_SIZE }

Functions
void	EveHttpLogJSONBodyPrintable (SCJsonBuilder *js, Flow *f, uint64_t tx_id)
void	EveHttpLogJSONBodyBase64 (SCJsonBuilder *js, Flow *f, uint64_t tx_id)
bool	EveHttpAddMetadata (const Flow *f, uint64_t tx_id, SCJsonBuilder *js)
void	JsonHttpLogRegister (void)

Variables
struct {
const char *   config_field
const char *   htp_field
uint32_t   flags
}	http_fields []

Detailed Description

Author

Tom DeCanio td@np.nosp@m.ulse.nosp@m.tech..nosp@m.com

Implements HTTP JSON logging portion of the engine.

Definition in file output-json-http.c.

Macro Definition Documentation

LOG_HTTP_ARRAY

#define LOG_HTTP_ARRAY   4 /* require array handling */

Definition at line 76 of file output-json-http.c.

LOG_HTTP_DEFAULT

#define LOG_HTTP_DEFAULT   0

Definition at line 73 of file output-json-http.c.

LOG_HTTP_EXTENDED

#define LOG_HTTP_EXTENDED   1

Definition at line 74 of file output-json-http.c.

LOG_HTTP_REQ_HEADERS

#define LOG_HTTP_REQ_HEADERS   8

Definition at line 77 of file output-json-http.c.

LOG_HTTP_REQUEST

#define LOG_HTTP_REQUEST   2 /* request field */

Definition at line 75 of file output-json-http.c.

LOG_HTTP_RES_HEADERS

#define LOG_HTTP_RES_HEADERS   16

Definition at line 78 of file output-json-http.c.

MAX_SIZE_HEADER_NAME

#define MAX_SIZE_HEADER_NAME   256

Definition at line 70 of file output-json-http.c.

MAX_SIZE_HEADER_VALUE

#define MAX_SIZE_HEADER_VALUE   2048

Definition at line 71 of file output-json-http.c.

Typedef Documentation

JsonHttpLogThread

typedef struct JsonHttpLogThread_ JsonHttpLogThread

LogHttpFileCtx

typedef struct LogHttpFileCtx_ LogHttpFileCtx

Enumeration Type Documentation

HttpField

enum HttpField

Enumerator
HTTP_FIELD_ACCEPT
HTTP_FIELD_ACCEPT_CHARSET
HTTP_FIELD_ACCEPT_ENCODING
HTTP_FIELD_ACCEPT_LANGUAGE
HTTP_FIELD_ACCEPT_DATETIME
HTTP_FIELD_AUTHORIZATION
HTTP_FIELD_CACHE_CONTROL
HTTP_FIELD_COOKIE
HTTP_FIELD_FROM
HTTP_FIELD_MAX_FORWARDS
HTTP_FIELD_ORIGIN
HTTP_FIELD_PRAGMA
HTTP_FIELD_PROXY_AUTHORIZATION
HTTP_FIELD_RANGE
HTTP_FIELD_TE
HTTP_FIELD_VIA
HTTP_FIELD_X_REQUESTED_WITH
HTTP_FIELD_DNT
HTTP_FIELD_X_FORWARDED_PROTO
HTTP_FIELD_X_AUTHENTICATED_USER
HTTP_FIELD_X_FLASH_VERSION
HTTP_FIELD_ACCEPT_RANGES
HTTP_FIELD_AGE
HTTP_FIELD_ALLOW
HTTP_FIELD_CONNECTION
HTTP_FIELD_CONTENT_ENCODING
HTTP_FIELD_CONTENT_LANGUAGE
HTTP_FIELD_CONTENT_LENGTH
HTTP_FIELD_CONTENT_LOCATION
HTTP_FIELD_CONTENT_MD5
HTTP_FIELD_CONTENT_RANGE
HTTP_FIELD_CONTENT_TYPE
HTTP_FIELD_DATE
HTTP_FIELD_ETAG
HTTP_FIELD_EXPIRES
HTTP_FIELD_LAST_MODIFIED
HTTP_FIELD_LINK
HTTP_FIELD_LOCATION
HTTP_FIELD_PROXY_AUTHENTICATE
HTTP_FIELD_REFERRER
HTTP_FIELD_REFRESH
HTTP_FIELD_RETRY_AFTER
HTTP_FIELD_SERVER
HTTP_FIELD_SET_COOKIE
HTTP_FIELD_TRAILER
HTTP_FIELD_TRANSFER_ENCODING
HTTP_FIELD_UPGRADE
HTTP_FIELD_VARY
HTTP_FIELD_WARNING
HTTP_FIELD_WWW_AUTHENTICATE
HTTP_FIELD_TRUE_CLIENT_IP
HTTP_FIELD_ORG_SRC_IP
HTTP_FIELD_X_BLUECOAT_VIA
HTTP_FIELD_SIZE

Definition at line 80 of file output-json-http.c.

Function Documentation

EveHttpAddMetadata()

bool EveHttpAddMetadata	(	const Flow *	f,
		uint64_t	tx_id,
		SCJsonBuilder *	js
	)

Definition at line 495 of file output-json-http.c.

References ALPROTO_HTTP1, and AppLayerParserGetTx().

Referenced by JsonBuildFileInfoRecord().

Here is the call graph for this function:

Here is the caller graph for this function:

EveHttpLogJSONBodyBase64()

void EveHttpLogJSONBodyBase64	(	SCJsonBuilder *	js,
		Flow *	f,
		uint64_t	tx_id
	)

Definition at line 420 of file output-json-http.c.

References ALPROTO_HTTP1, AppLayerParserGetTx(), HtpTxUserData_::request_body, and HtpTxUserData_::response_body.

Here is the call graph for this function:

EveHttpLogJSONBodyPrintable()

void EveHttpLogJSONBodyPrintable	(	SCJsonBuilder *	js,
		Flow *	f,
		uint64_t	tx_id
	)

Definition at line 391 of file output-json-http.c.

References ALPROTO_HTTP1, AppLayerParserGetTx(), HtpTxUserData_::request_body, and HtpTxUserData_::response_body.

Here is the call graph for this function:

JsonHttpLogRegister()

void JsonHttpLogRegister

(

void

)

Definition at line 644 of file output-json-http.c.

References ALPROTO_HTTP1, LOGGER_JSON_TX, and OutputRegisterTxSubModule().

Referenced by OutputRegisterLoggers().

Here is the call graph for this function:

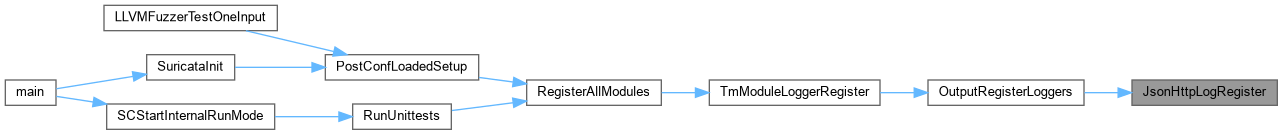

Here is the caller graph for this function:

Variable Documentation

config_field

const char* config_field

Definition at line 138 of file output-json-http.c.

flags

uint32_t flags

Definition at line 140 of file output-json-http.c.

htp_field

const char* htp_field

Definition at line 139 of file output-json-http.c.

[struct]

struct { ... } http_fields[]
