output-json.c File Reference

#include "suricata-common.h"
#include "flow.h"
#include "conf.h"
#include "util-debug.h"
#include "util-time.h"
#include "util-var-name.h"
#include "util-macset.h"
#include "util-unittest.h"
#include "util-unittest-helper.h"
#include "detect-engine.h"
#include "util-classification-config.h"
#include "util-syslog.h"
#include "output-eve-syslog.h"
#include "output-eve-null.h"
#include "output.h"
#include "output-json.h"
#include "util-byte.h"
#include "util-print.h"
#include "util-proto-name.h"
#include "util-optimize.h"
#include "util-buffer.h"
#include "util-logopenfile.h"
#include "util-log-redis.h"
#include "util-device-private.h"
#include "util-validate.h"
#include "flow-var.h"
#include "flow-bit.h"
#include "flow-storage.h"
#include "source-pcap-file-helper.h"

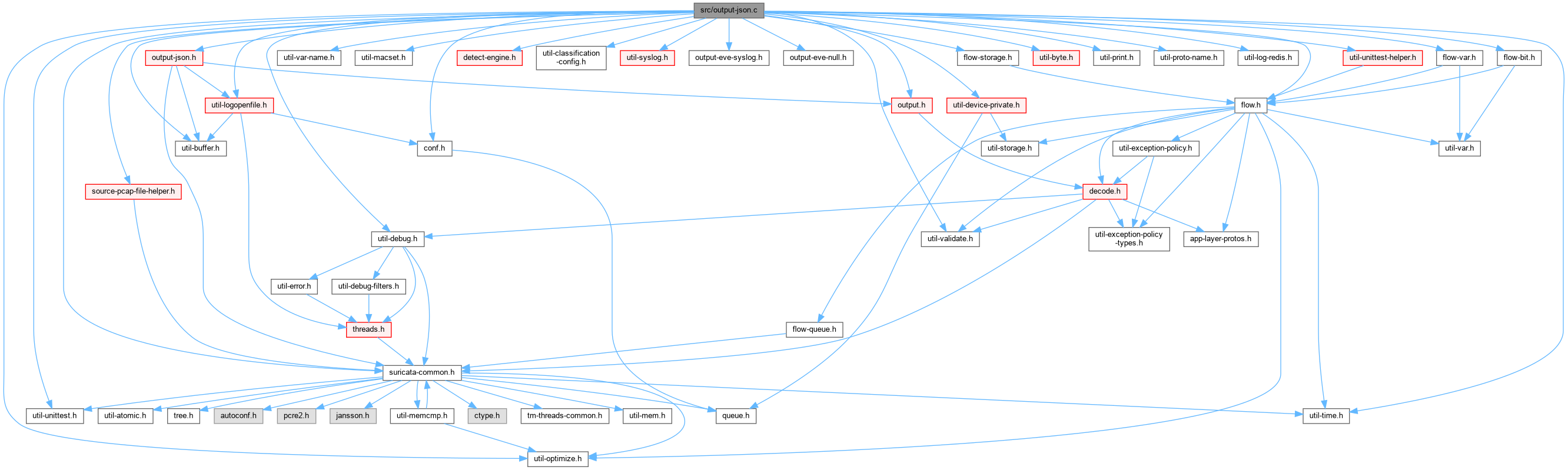

Include dependency graph for output-json.c:

Go to the source code of this file.

Data Structures
struct	JSONMACAddrInfo

Macros
#define	DEFAULT_LOG_FILENAME   "eve.json"
#define	MODULE_NAME   "OutputJSON"
#define	MAX_JSON_SIZE   2048
#define	COMMUNITY_ID_BUF_SIZE   64

Typedefs
typedef struct JSONMACAddrInfo	JSONMACAddrInfo

Functions
void	OutputJsonRegister (void)
json_t *	SCJsonString (const char *val)
void	EveFileInfo (SCJsonBuilder *jb, const File *ff, const uint64_t tx_id, const uint16_t flags)
void	EveAddMetadata (const Packet *p, const Flow *f, SCJsonBuilder *js)
void	EveAddCommonOptions (const OutputJsonCommonSettings *cfg, const Packet *p, const Flow *f, SCJsonBuilder *js, enum SCOutputJsonLogDirection dir)
void	EvePacket (const Packet *p, SCJsonBuilder *js, uint32_t max_length)
	Jsonify a packet.
void	EveTcpFlags (const uint8_t flags, SCJsonBuilder *js)
	jsonify tcp flags field Only add 'true' fields in an attempt to keep things reasonably compact.
void	JsonAddrInfoInit (const Packet *p, enum SCOutputJsonLogDirection dir, JsonAddrInfo *addr)
void	CreateEveFlowId (SCJsonBuilder *js, const Flow *f)
void	JSONFormatAndAddMACAddr (SCJsonBuilder *js, const char *key, const uint8_t *val, bool is_array)
SCJsonBuilder *	CreateEveHeader (const Packet *p, enum SCOutputJsonLogDirection dir, const char *event_type, JsonAddrInfo *addr, OutputJsonCtx *eve_ctx)
SCJsonBuilder *	CreateEveHeaderWithTxId (const Packet *p, enum SCOutputJsonLogDirection dir, const char *event_type, JsonAddrInfo *addr, uint64_t tx_id, OutputJsonCtx *eve_ctx)
int	OutputJSONMemBufferCallback (const char *str, size_t size, void *data)
int	OutputJSONBuffer (json_t *js, LogFileCtx *file_ctx, MemBuffer **buffer)
void	OutputJsonFlush (OutputJsonThreadCtx *ctx)
void	OutputJsonBuilderBuffer (ThreadVars *tv, const Packet *p, Flow *f, SCJsonBuilder *js, OutputJsonThreadCtx *ctx)
OutputInitResult	OutputJsonInitCtx (SCConfNode *conf)
	Create a new LogFileCtx for "fast" output style.

Variables
const JsonAddrInfo	json_addr_info_zero

Detailed Description

Author

Tom DeCanio td@np.nosp@m.ulse.nosp@m.tech..nosp@m.com

Logs detection and monitoring events in JSON format.

Definition in file output-json.c.

Macro Definition Documentation

COMMUNITY_ID_BUF_SIZE

#define COMMUNITY_ID_BUF_SIZE   64

Definition at line 601 of file output-json.c.

DEFAULT_LOG_FILENAME

#define DEFAULT_LOG_FILENAME   "eve.json"

Definition at line 66 of file output-json.c.

MAX_JSON_SIZE

#define MAX_JSON_SIZE   2048

Definition at line 69 of file output-json.c.

MODULE_NAME

#define MODULE_NAME   "OutputJSON"

Definition at line 67 of file output-json.c.

Typedef Documentation

JSONMACAddrInfo

typedef struct JSONMACAddrInfo JSONMACAddrInfo

Function Documentation

CreateEveFlowId()

void CreateEveFlowId	(	SCJsonBuilder *	js,
		const Flow *	f
	)

Definition at line 716 of file output-json.c.

References Flow_::parent_id.

Referenced by CreateEveHeader().

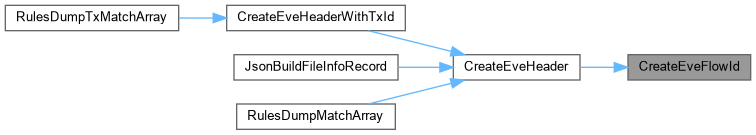

Here is the caller graph for this function:

CreateEveHeader()

SCJsonBuilder * CreateEveHeader	(	const Packet *	p,
		enum SCOutputJsonLogDirection	dir,
		const char *	event_type,
		JsonAddrInfo *	addr,
		OutputJsonCtx *	eve_ctx
	)

Definition at line 850 of file output-json.c.

References OutputJsonCtx_::cfg, Packet_::code, CreateEveFlowId(), CreateIsoTimeString(), LiveDevice_::dev, JsonAddrInfo_::dp, JsonAddrInfo_::dst_ip, EveAddCommonOptions(), Packet_::flow, Packet_::icmp_s, json_addr_info_zero, JsonAddrInfoInit(), Packet_::livedev, JsonAddrInfo_::log_port, Packet_::pcap_cnt, Packet_::pkt_src, PktSrcToString(), Packet_::proto, JsonAddrInfo_::proto, JsonAddrInfo_::sp, JsonAddrInfo_::src_ip, Packet_::ts, type, Packet_::type, unlikely, Packet_::vlan_id, and Packet_::vlan_idx.

Referenced by CreateEveHeaderWithTxId(), JsonBuildFileInfoRecord(), and RulesDumpMatchArray().

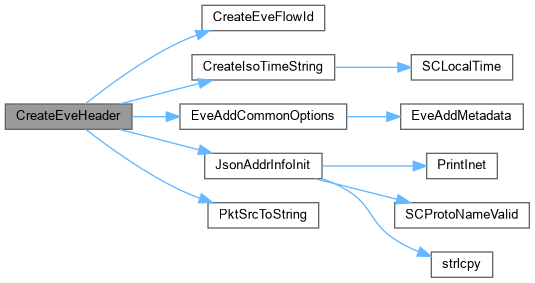

Here is the call graph for this function:

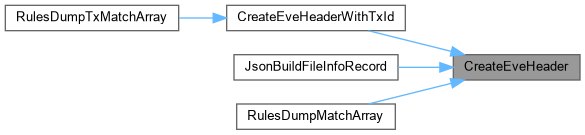

Here is the caller graph for this function:

CreateEveHeaderWithTxId()

SCJsonBuilder * CreateEveHeaderWithTxId	(	const Packet *	p,
		enum SCOutputJsonLogDirection	dir,
		const char *	event_type,
		JsonAddrInfo *	addr,
		uint64_t	tx_id,
		OutputJsonCtx *	eve_ctx
	)

Definition at line 953 of file output-json.c.

References CreateEveHeader(), and unlikely.

Referenced by RulesDumpTxMatchArray().

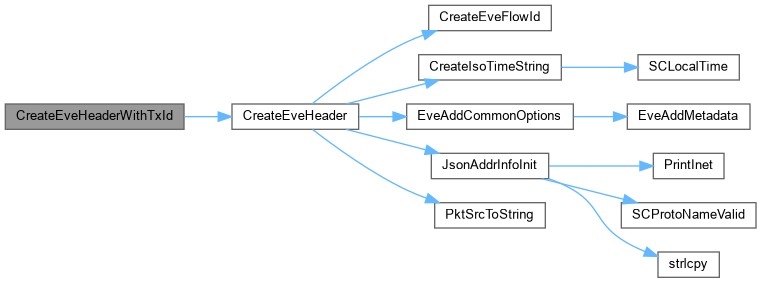

Here is the call graph for this function:

Here is the caller graph for this function:

EveAddCommonOptions()

void EveAddCommonOptions	(	const OutputJsonCommonSettings *	cfg,
		const Packet *	p,
		const Flow *	f,
		SCJsonBuilder *	js,
		enum SCOutputJsonLogDirection	dir
	)

Definition at line 414 of file output-json.c.

References OutputJsonCommonSettings_::community_id_seed, EveAddMetadata(), OutputJsonCommonSettings_::include_community_id, OutputJsonCommonSettings_::include_ethernet, OutputJsonCommonSettings_::include_metadata, OutputJsonCommonSettings_::include_suricata_version, PROG_VER, and Flow_::tenant_id.

Referenced by CreateEveHeader().

Here is the call graph for this function:

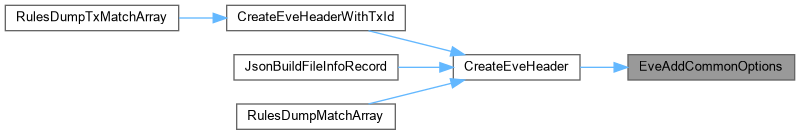

Here is the caller graph for this function:

EveAddMetadata()

void EveAddMetadata	(	const Packet *	p,
		const Flow *	f,
		SCJsonBuilder *	js
	)

Definition at line 391 of file output-json.c.

References Flow_::flowvar, and Packet_::pktvar.

Referenced by EveAddCommonOptions().

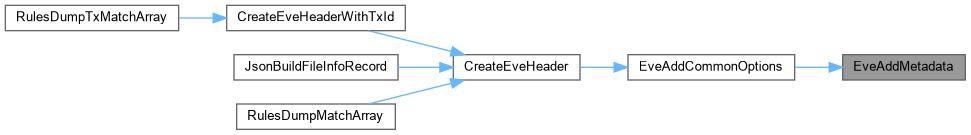

Here is the caller graph for this function:

EveFileInfo()

void EveFileInfo	(	SCJsonBuilder *	jb,
		const File *	ff,
		const uint64_t	tx_id,
		const uint16_t	flags
	)

Definition at line 124 of file output-json.c.

References File_::end, FILE_HAS_GAPS, FILE_MD5, FILE_SHA1, FILE_SHA256, FILE_STATE_CLOSED, FILE_STATE_ERROR, FILE_STATE_TRUNCATED, FILE_STORE, File_::file_store_id, FILE_STORED, FileTrackedSize(), flags, File_::flags, JB_SET_FALSE, JB_SET_STRING, JB_SET_TRUE, File_::md5, File_::name, File_::name_len, File_::sha1, File_::sha256, File_::sid, File_::sid_cnt, File_::start, and File_::state.

Referenced by JsonBuildFileInfoRecord().

Here is the call graph for this function:

Here is the caller graph for this function:

EvePacket()

void EvePacket	(	const Packet *	p,
		SCJsonBuilder *	js,
		uint32_t	max_length
	)

Jsonify a packet.

Parameters

p	Packet
js	JSON object
max_length	If non-zero, restricts the number of packet data bytes handled.

Definition at line 441 of file output-json.c.

References Packet_::datalink, DatalinkValueToName(), GET_PKT_DATA, and GET_PKT_LEN.

Here is the call graph for this function:

EveTcpFlags()

void EveTcpFlags	(	const uint8_t	flags,
		SCJsonBuilder *	js
	)

jsonify tcp flags field Only add 'true' fields in an attempt to keep things reasonably compact.

Definition at line 466 of file output-json.c.

References flags, JB_SET_TRUE, TH_ACK, TH_CWR, TH_ECN, TH_FIN, TH_PUSH, TH_RST, TH_SYN, and TH_URG.

JsonAddrInfoInit()

void JsonAddrInfoInit	(	const Packet *	p,
		enum SCOutputJsonLogDirection	dir,
		JsonAddrInfo *	addr
	)

Definition at line 486 of file output-json.c.

References DEBUG_VALIDATE_BUG_ON, Packet_::dp, JsonAddrInfo_::dp, JsonAddrInfo_::dst_ip, GET_IPV4_DST_ADDR_PTR, GET_IPV4_SRC_ADDR_PTR, GET_IPV6_DST_ADDR, GET_IPV6_SRC_ADDR, IPPROTO_SCTP, JSON_ADDR_LEN, known_proto, LOG_DIR_FLOW, LOG_DIR_FLOW_TOCLIENT, LOG_DIR_FLOW_TOSERVER, LOG_DIR_PACKET, JsonAddrInfo_::log_port, PKT_IS_TOCLIENT, PKT_IS_TOSERVER, PrintInet(), Packet_::proto, JsonAddrInfo_::proto, SCProtoNameValid(), Packet_::sp, JsonAddrInfo_::sp, JsonAddrInfo_::src_ip, and strlcpy().

Referenced by CreateEveHeader(), and JsonBuildFileInfoRecord().

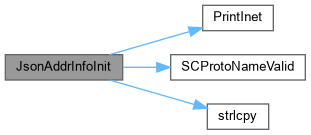

Here is the call graph for this function:

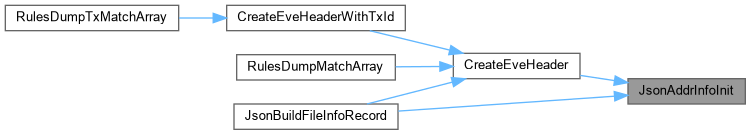

Here is the caller graph for this function:

JSONFormatAndAddMACAddr()

void JSONFormatAndAddMACAddr	(	SCJsonBuilder *	js,
		const char *	key,
		const uint8_t *	val,
		bool	is_array
	)

Definition at line 728 of file output-json.c.

OutputJSONBuffer()

int OutputJSONBuffer	(	json_t *	js,
		LogFileCtx *	file_ctx,
		MemBuffer **	buffer
	)

Definition at line 980 of file output-json.c.

References OutputJSONMemBufferWrapper_::buffer, LogFileCtx_::is_pcap_offline, LogFileCtx_::json_flags, JSON_OUTPUT_BUFFER_SIZE, LogFileWrite(), MemBufferWriteRaw(), OutputJSONMemBufferCallback(), PcapFileGetFilename(), LogFileCtx_::prefix, LogFileCtx_::prefix_len, LogFileCtx_::sensor_name, and TM_ECODE_OK.

Here is the call graph for this function:

OutputJsonBuilderBuffer()

void OutputJsonBuilderBuffer	(	ThreadVars *	tv,
		const Packet *	p,
		Flow *	f,
		SCJsonBuilder *	js,
		OutputJsonThreadCtx *	ctx
	)

Definition at line 1015 of file output-json.c.

References ctx, DEBUG_VALIDATE_BUG_ON, LogFileCtx_::is_pcap_offline, LogFileWrite(), MEMBUFFER_OFFSET, MEMBUFFER_SIZE, MemBufferExpand(), MemBufferWriteRaw(), MIN, PcapFileGetFilename(), LogFileCtx_::prefix, LogFileCtx_::prefix_len, SCEveRunCallbacks(), SCLogWarning, LogFileCtx_::sensor_name, and tv.

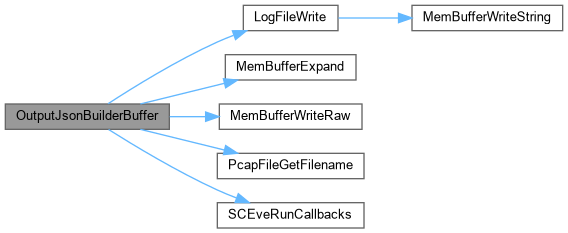

Here is the call graph for this function:

OutputJsonFlush()

void OutputJsonFlush

(

OutputJsonThreadCtx *

ctx

)

Definition at line 1009 of file output-json.c.

References ctx, and LogFileFlush().

Here is the call graph for this function:

OutputJsonInitCtx()

OutputInitResult OutputJsonInitCtx

(

SCConfNode *

conf

)

Create a new LogFileCtx for "fast" output style.

Parameters

conf	The configuration node for this output.

Returns

A LogFileCtx pointer on success, NULL on failure.

Definition at line 1141 of file output-json.c.

References OutputJsonCtx_::cfg, OutputJsonCommonSettings_::community_id_seed, OutputInitResult_::ctx, OutputCtx_::data, OutputCtx_::DeInit, FatalError, OutputJsonCtx_::file_ctx, OutputJsonCtx_::filetype, HttpXFFGetCfg(), OutputJsonCommonSettings_::include_community_id, OutputJsonCommonSettings_::include_ethernet, OutputJsonCommonSettings_::include_metadata, OutputJsonCommonSettings_::include_suricata_version, LogFileCtx_::is_pcap_offline, likely, LOGFILE_TYPE_FILETYPE, LOGFILE_TYPE_NOTSET, LogFileFreeCtx(), LogFileNewCtx(), OutputInitResult_::ok, LogFileCtx_::prefix, LogFileCtx_::prefix_len, RUNMODE_PCAP_FILE, RUNMODE_UNIX_SOCKET, SCCalloc, SCConfGet(), SCConfNodeLookupChild(), SCConfNodeLookupChildValue(), SCConfValIsFalse(), SCConfValIsTrue(), SCEveFindFileType(), SCFree, SCLogConfig, SCLogDebug, SCLogInfo, SCLogWarning, SCRunmodeGet(), SCStrdup, LogFileCtx_::sensor_name, StringParseUint16(), StringParseUint64(), LogFileCtx_::threaded, LogFileCtx_::type, unlikely, SCConfNode_::val, and OutputJsonCtx_::xff_cfg.

Referenced by OutputJsonRegister().

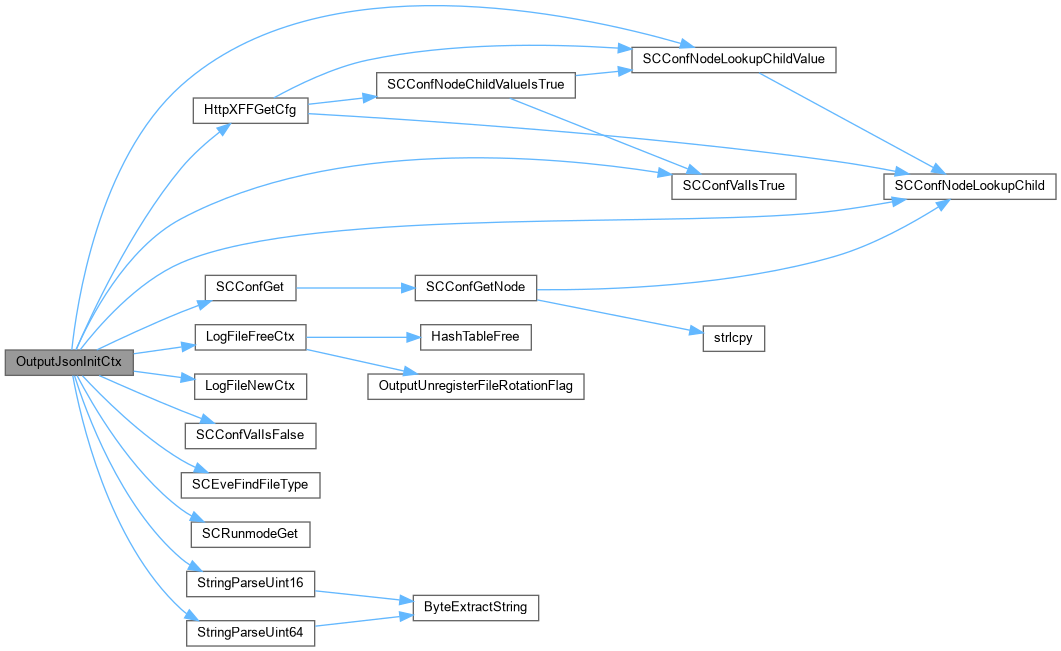

Here is the call graph for this function:

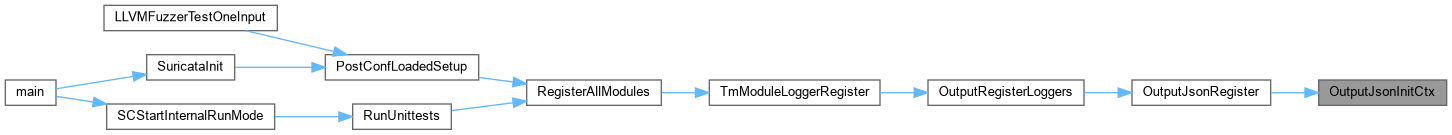

Here is the caller graph for this function:

OutputJSONMemBufferCallback()

int OutputJSONMemBufferCallback	(	const char *	str,
		size_t	size,
		void *	data
	)

Definition at line 966 of file output-json.c.

References OutputJSONMemBufferWrapper_::buffer, DEBUG_VALIDATE_BUG_ON, OutputJSONMemBufferWrapper_::expand_by, MEMBUFFER_OFFSET, MEMBUFFER_SIZE, MemBufferExpand(), MemBufferWriteRaw(), and str.

Referenced by OutputJSONBuffer().

Here is the call graph for this function:

Here is the caller graph for this function:

OutputJsonRegister()

void OutputJsonRegister

(

void

)

Definition at line 83 of file output-json.c.

References MODULE_NAME, NullLogInitialize(), OutputJsonInitCtx(), OutputRegisterModule(), and SyslogInitialize().

Referenced by OutputRegisterLoggers().

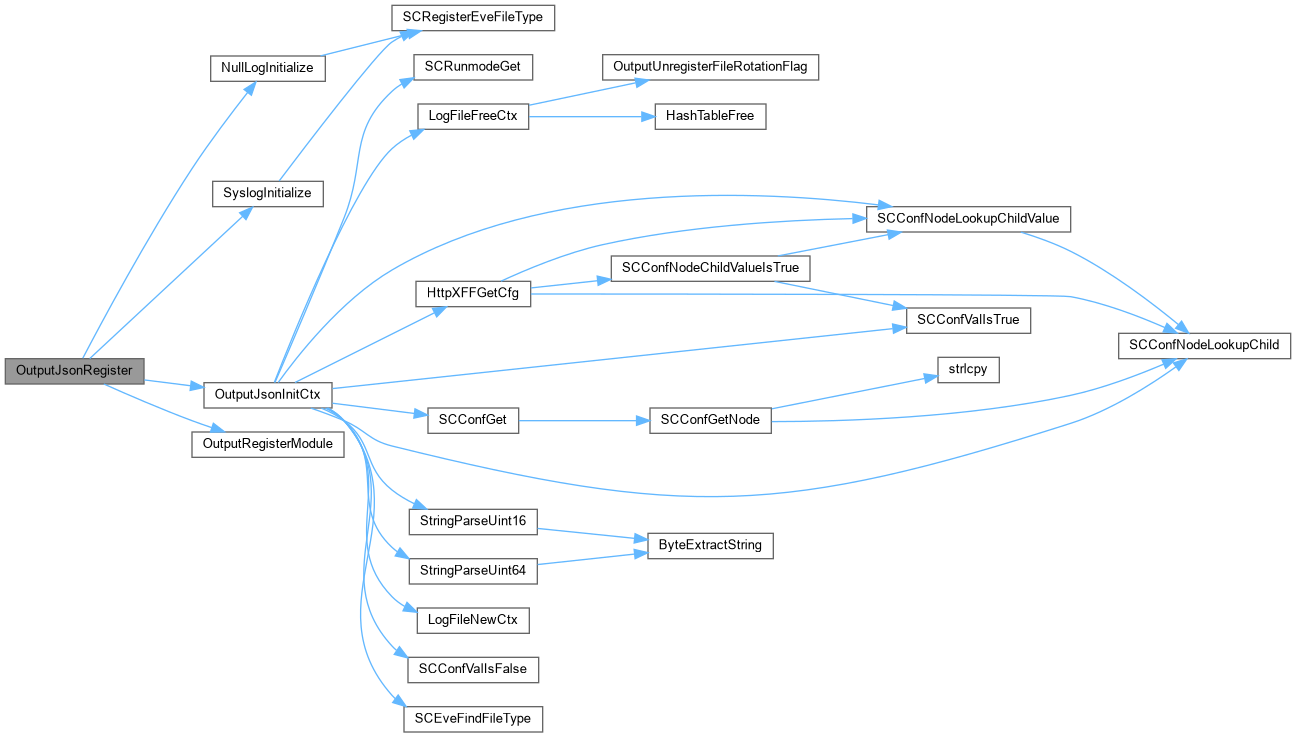

Here is the call graph for this function:

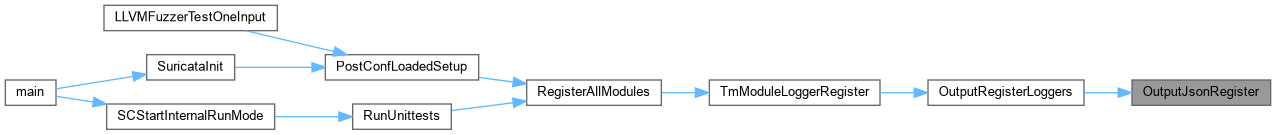

Here is the caller graph for this function:

SCJsonString()

json_t * SCJsonString

(

const char *

val

)

Definition at line 96 of file output-json.c.

References MAX_JSON_SIZE, offset, and PrintBufferData.

Variable Documentation

json_addr_info_zero

const JsonAddrInfo json_addr_info_zero

Definition at line 81 of file output-json.c.

Referenced by CreateEveHeader(), and JsonBuildFileInfoRecord().
