queue.h File Reference

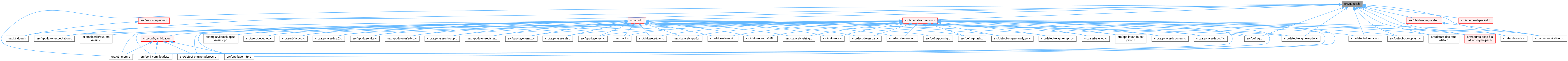

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros

#define _Q_ASSERT(a)

#define CIRCLEQ_HEAD(name, type)

#define CIRCLEQ_HEAD_INITIALIZER(head)    { CIRCLEQ_END(&head), CIRCLEQ_END(&head) }

#define CIRCLEQ_ENTRY(type)

#define CIRCLEQ_FIRST(head)   ((head)->cqh_first)

#define CIRCLEQ_LAST(head)   ((head)->cqh_last)

#define CIRCLEQ_NEXT(elm, field)   ((elm)->field.cqe_next)

#define CIRCLEQ_PREV(elm, field)   ((elm)->field.cqe_prev)

#define CIRCLEQ_EMPTY(head)    (CIRCLEQ_FIRST(head) == CIRCLEQ_END(head))

#define CIRCLEQ_FOREACH(var, head, field)

#define CIRCLEQ_FOREACH_SAFE(var, head, field, tvar)

#define CIRCLEQ_FOREACH_REVERSE(var, head, field)

#define CIRCLEQ_FOREACH_REVERSE_SAFE(var, head, headname, field, tvar)

#define CIRCLEQ_INIT(head)

#define CIRCLEQ_INSERT_AFTER(head, listelm, elm, field)

#define CIRCLEQ_INSERT_BEFORE(head, listelm, elm, field)

#define CIRCLEQ_INSERT_HEAD(head, elm, field)

#define CIRCLEQ_INSERT_TAIL(head, elm, field)

#define CIRCLEQ_REMOVE(head, elm, field)

#define CIRCLEQ_REPLACE(head, elm, elm2, field)

#define CIRCLEQ_END(head)   ((void *)(head))

#define TAILQ_HEAD(name, type)

#define TAILQ_HEAD_INITIALIZER(head)    { NULL, &(head).tqh_first }

#define TAILQ_ENTRY(type)

#define TAILQ_EMPTY(head)   ((head)->tqh_first == NULL)

#define TAILQ_FIRST(head)   ((head)->tqh_first)

#define TAILQ_FOREACH(var, head, field)

#define TAILQ_FOREACH_REVERSE(var, head, headname, field)

#define TAILQ_INIT(head)

#define TAILQ_INSERT_AFTER(head, listelm, elm, field)

#define TAILQ_INSERT_BEFORE(listelm, elm, field)

#define TAILQ_INSERT_HEAD(head, elm, field)

#define TAILQ_INSERT_TAIL(head, elm, field)

#define TAILQ_LAST(head, headname)    (*(((struct headname *)((head)->tqh_last))->tqh_last))

#define TAILQ_NEXT(elm, field)   ((elm)->field.tqe_next)

#define TAILQ_PREV(elm, headname, field)    (*(((struct headname *)((elm)->field.tqe_prev))->tqh_last))

#define TAILQ_REMOVE(head, elm, field)

#define TAILQ_FOREACH_SAFE(var, head, field, tvar)


Macro Definition Documentation

◆ _Q_ASSERT

#define _Q_ASSERT (   a)

This file started as a copy of sys/queue.h from OpenBSD and then had various changes made over time. Now we include the system sys/queue.h and then add missing behavior. On Windows this means we basically add everything. This allows for Suricata builds that integrate with other libraries that make use of sys/queue.h to use the exact same definitions from queue.h instead the Suricata copy.

Definition at line 60 of file queue.h.

◆ CIRCLEQ_EMPTY

#define CIRCLEQ_EMPTY (   head)     (CIRCLEQ_FIRST(head) == CIRCLEQ_END(head))

Definition at line 98 of file queue.h.

◆ CIRCLEQ_END

#define CIRCLEQ_END (   head)    ((void *)(head))

Definition at line 201 of file queue.h.

◆ CIRCLEQ_ENTRY

#define CIRCLEQ_ENTRY (   type)
Value:
struct { \
struct type *cqe_next; /* next element */ \
struct type *cqe_prev; /* previous element */ \
}
type
uint16_t type
Definition decode-vlan.c:106

Definition at line 85 of file queue.h.

◆ CIRCLEQ_FIRST

#define CIRCLEQ_FIRST (   head)    ((head)->cqh_first)

Definition at line 94 of file queue.h.

◆ CIRCLEQ_FOREACH

#define CIRCLEQ_FOREACH (   var,
  head,
  field
)
Value:
for((var) = CIRCLEQ_FIRST(head); \
(var) != CIRCLEQ_END(head); \
(var) = CIRCLEQ_NEXT(var, field))
head
Flow * head
Definition flow-hash.h:1
CIRCLEQ_NEXT
#define CIRCLEQ_NEXT(elm, field)
Definition queue.h:96
CIRCLEQ_FIRST
#define CIRCLEQ_FIRST(head)
Definition queue.h:94
CIRCLEQ_END
#define CIRCLEQ_END(head)
Definition queue.h:201

Definition at line 101 of file queue.h.

◆ CIRCLEQ_FOREACH_REVERSE

#define CIRCLEQ_FOREACH_REVERSE (   var,
  head,
  field
)
Value:
for((var) = CIRCLEQ_LAST(head); \
(var) != CIRCLEQ_END(head); \
(var) = CIRCLEQ_PREV(var, field))
CIRCLEQ_LAST
#define CIRCLEQ_LAST(head)
Definition queue.h:95
CIRCLEQ_PREV
#define CIRCLEQ_PREV(elm, field)
Definition queue.h:97

Definition at line 112 of file queue.h.

◆ CIRCLEQ_FOREACH_REVERSE_SAFE

#define CIRCLEQ_FOREACH_REVERSE_SAFE (   var,
  head,
  headname,
  field,
  tvar
)
Value:
for ((var) = CIRCLEQ_LAST(head, headname); \
(var) != CIRCLEQ_END(head) && \
((tvar) = CIRCLEQ_PREV(var, headname, field), 1); \
(var) = (tvar))

Definition at line 117 of file queue.h.

◆ CIRCLEQ_FOREACH_SAFE

#define CIRCLEQ_FOREACH_SAFE (   var,
  head,
  field,
  tvar
)
Value:
for ((var) = CIRCLEQ_FIRST(head); \
(var) != CIRCLEQ_END(head) && \
((tvar) = CIRCLEQ_NEXT(var, field), 1); \
(var) = (tvar))

Definition at line 106 of file queue.h.

◆ CIRCLEQ_HEAD

#define CIRCLEQ_HEAD (   name,
  type
)
Value:
struct name { \
struct type *cqh_first; /* first element */ \
struct type *cqh_last; /* last element */ \
}
name
const char * name
Definition tm-threads.c:2163

Definition at line 76 of file queue.h.

◆ CIRCLEQ_HEAD_INITIALIZER

#define CIRCLEQ_HEAD_INITIALIZER (   head)     { CIRCLEQ_END(&head), CIRCLEQ_END(&head) }

Definition at line 82 of file queue.h.

◆ CIRCLEQ_INIT

#define CIRCLEQ_INIT (   head)
Value:
do { \
(head)->cqh_first = CIRCLEQ_END(head); \
(head)->cqh_last = CIRCLEQ_END(head); \
} while (0)

Definition at line 126 of file queue.h.

◆ CIRCLEQ_INSERT_AFTER

#define CIRCLEQ_INSERT_AFTER (   head,
  listelm,
  elm,
  field
)
Value:
do { \
(elm)->field.cqe_next = (listelm)->field.cqe_next; \
(elm)->field.cqe_prev = (listelm); \
if ((listelm)->field.cqe_next == CIRCLEQ_END(head)) \
(head)->cqh_last = (elm); \
else \
(listelm)->field.cqe_next->field.cqe_prev = (elm); \
(listelm)->field.cqe_next = (elm); \
} while (0)

Definition at line 131 of file queue.h.

◆ CIRCLEQ_INSERT_BEFORE

#define CIRCLEQ_INSERT_BEFORE (   head,
  listelm,
  elm,
  field
)
Value:
do { \
(elm)->field.cqe_next = (listelm); \
(elm)->field.cqe_prev = (listelm)->field.cqe_prev; \
if ((listelm)->field.cqe_prev == CIRCLEQ_END(head)) \
(head)->cqh_first = (elm); \
else \
(listelm)->field.cqe_prev->field.cqe_next = (elm); \
(listelm)->field.cqe_prev = (elm); \
} while (0)

Definition at line 141 of file queue.h.

◆ CIRCLEQ_INSERT_HEAD

#define CIRCLEQ_INSERT_HEAD (   head,
  elm,
  field
)
Value:
do { \
(elm)->field.cqe_next = (head)->cqh_first; \
(elm)->field.cqe_prev = CIRCLEQ_END(head); \
if ((head)->cqh_last == CIRCLEQ_END(head)) \
(head)->cqh_last = (elm); \
else \
(head)->cqh_first->field.cqe_prev = (elm); \
(head)->cqh_first = (elm); \
} while (0)

Definition at line 151 of file queue.h.

◆ CIRCLEQ_INSERT_TAIL

#define CIRCLEQ_INSERT_TAIL (   head,
  elm,
  field
)
Value:
do { \
(elm)->field.cqe_next = CIRCLEQ_END(head); \
(elm)->field.cqe_prev = (head)->cqh_last; \
if ((head)->cqh_first == CIRCLEQ_END(head)) \
(head)->cqh_first = (elm); \
else \
(head)->cqh_last->field.cqe_next = (elm); \
(head)->cqh_last = (elm); \
} while (0)

Definition at line 161 of file queue.h.

◆ CIRCLEQ_LAST

#define CIRCLEQ_LAST (   head)    ((head)->cqh_last)

Definition at line 95 of file queue.h.

◆ CIRCLEQ_NEXT

#define CIRCLEQ_NEXT (   elm,
  field
)    ((elm)->field.cqe_next)

Definition at line 96 of file queue.h.

◆ CIRCLEQ_PREV

#define CIRCLEQ_PREV (   elm,
  field
)    ((elm)->field.cqe_prev)

Definition at line 97 of file queue.h.

◆ CIRCLEQ_REMOVE

#define CIRCLEQ_REMOVE (   head,
  elm,
  field
)
Value:
do { \
if ((elm)->field.cqe_next == CIRCLEQ_END(head)) \
(head)->cqh_last = (elm)->field.cqe_prev; \
else \
(elm)->field.cqe_next->field.cqe_prev = \
(elm)->field.cqe_prev; \
if ((elm)->field.cqe_prev == CIRCLEQ_END(head)) \
(head)->cqh_first = (elm)->field.cqe_next; \
else \
(elm)->field.cqe_prev->field.cqe_next = \
(elm)->field.cqe_next; \
} while (0)

Definition at line 171 of file queue.h.

◆ CIRCLEQ_REPLACE

#define CIRCLEQ_REPLACE (   head,
  elm,
  elm2,
  field
)
Value:
do { \
if (((elm2)->field.cqe_next = (elm)->field.cqe_next) == \
CIRCLEQ_END(head)) \
(head)->cqh_last = (elm2); \
else \
(elm2)->field.cqe_next->field.cqe_prev = (elm2); \
if (((elm2)->field.cqe_prev = (elm)->field.cqe_prev) == \
CIRCLEQ_END(head)) \
(head)->cqh_first = (elm2); \
else \
(elm2)->field.cqe_prev->field.cqe_next = (elm2); \
} while (0)

Definition at line 184 of file queue.h.

◆ TAILQ_EMPTY

#define TAILQ_EMPTY (   head)    ((head)->tqh_first == NULL)

Definition at line 248 of file queue.h.

◆ TAILQ_ENTRY

#define TAILQ_ENTRY (   type)
Value:
struct { \
struct type *tqe_next; /* next element */ \
struct type **tqe_prev; /* address of previous next element */ \
}

Definition at line 239 of file queue.h.

◆ TAILQ_FIRST

#define TAILQ_FIRST (   head)    ((head)->tqh_first)

Definition at line 250 of file queue.h.

◆ TAILQ_FOREACH

#define TAILQ_FOREACH (   var,
  head,
  field
)
Value:
for ((var) = TAILQ_FIRST((head)); \
(var); \
(var) = TAILQ_NEXT((var), field))
TAILQ_FIRST
#define TAILQ_FIRST(head)
Definition queue.h:250
TAILQ_NEXT
#define TAILQ_NEXT(elm, field)
Definition queue.h:307

Definition at line 252 of file queue.h.

◆ TAILQ_FOREACH_REVERSE

#define TAILQ_FOREACH_REVERSE (   var,
  head,
  headname,
  field
)
Value:
for ((var) = TAILQ_LAST((head), headname); \
(var); \
(var) = TAILQ_PREV((var), headname, field))
TAILQ_PREV
#define TAILQ_PREV(elm, headname, field)
Definition queue.h:309
TAILQ_LAST
#define TAILQ_LAST(head, headname)
Definition queue.h:304

Definition at line 257 of file queue.h.

◆ TAILQ_FOREACH_SAFE

#define TAILQ_FOREACH_SAFE (   var,
  head,
  field,
  tvar
)
Value:
for ((var) = TAILQ_FIRST((head)); \
(var) && ((tvar) = TAILQ_NEXT((var), field), 1); \
(var) = (tvar))

Definition at line 329 of file queue.h.

◆ TAILQ_HEAD

#define TAILQ_HEAD (   name,
  type
)
Value:
struct name { \
struct type *tqh_first; /* first element */ \
struct type **tqh_last; /* addr of last next element */ \
}

Definition at line 230 of file queue.h.

◆ TAILQ_HEAD_INITIALIZER

#define TAILQ_HEAD_INITIALIZER (   head)     { NULL, &(head).tqh_first }

Definition at line 236 of file queue.h.

◆ TAILQ_INIT

#define TAILQ_INIT (   head)
Value:
do { \
TAILQ_FIRST((head)) = NULL; \
(head)->tqh_last = &TAILQ_FIRST((head)); \
} while (0)

Definition at line 262 of file queue.h.

◆ TAILQ_INSERT_AFTER

#define TAILQ_INSERT_AFTER (   head,
  listelm,
  elm,
  field
)
Value:
do { \
if ((TAILQ_NEXT((elm), field) = TAILQ_NEXT((listelm), field)) != NULL)\
TAILQ_NEXT((elm), field)->field.tqe_prev = \
&TAILQ_NEXT((elm), field); \
else \
(head)->tqh_last = &TAILQ_NEXT((elm), field); \
TAILQ_NEXT((listelm), field) = (elm); \
(elm)->field.tqe_prev = &TAILQ_NEXT((listelm), field); \
} while (0)

Definition at line 267 of file queue.h.

◆ TAILQ_INSERT_BEFORE

#define TAILQ_INSERT_BEFORE (   listelm,
  elm,
  field
)
Value:
do { \
(elm)->field.tqe_prev = (listelm)->field.tqe_prev; \
TAILQ_NEXT((elm), field) = (listelm); \
*(listelm)->field.tqe_prev = (elm); \
(listelm)->field.tqe_prev = &TAILQ_NEXT((elm), field); \
} while (0)

Definition at line 277 of file queue.h.

◆ TAILQ_INSERT_HEAD

#define TAILQ_INSERT_HEAD (   head,
  elm,
  field
)
Value:
do { \
if ((TAILQ_NEXT((elm), field) = TAILQ_FIRST((head))) != NULL) \
TAILQ_FIRST((head))->field.tqe_prev = \
&TAILQ_NEXT((elm), field); \
else \
(head)->tqh_last = &TAILQ_NEXT((elm), field); \
TAILQ_FIRST((head)) = (elm); \
(elm)->field.tqe_prev = &TAILQ_FIRST((head)); \
} while (0)

Definition at line 284 of file queue.h.

◆ TAILQ_INSERT_TAIL

#define TAILQ_INSERT_TAIL (   head,
  elm,
  field
)
Value:
do { \
_Q_ASSERT((elm)); \
_Q_ASSERT((head)); \
TAILQ_NEXT((elm), field) = NULL; \
(elm)->field.tqe_prev = (head)->tqh_last; \
*(head)->tqh_last = (elm); \
_Q_ASSERT(*(head)->tqh_last); \
(head)->tqh_last = &TAILQ_NEXT((elm), field); \
} while (0)

Definition at line 294 of file queue.h.

◆ TAILQ_LAST

#define TAILQ_LAST (   head,
  headname
)     (*(((struct headname *)((head)->tqh_last))->tqh_last))

Definition at line 304 of file queue.h.

◆ TAILQ_NEXT

#define TAILQ_NEXT (   elm,
  field
)    ((elm)->field.tqe_next)

Definition at line 307 of file queue.h.

◆ TAILQ_PREV

#define TAILQ_PREV (   elm,
  headname,
  field
)     (*(((struct headname *)((elm)->field.tqe_prev))->tqh_last))

Definition at line 309 of file queue.h.

◆ TAILQ_REMOVE

#define TAILQ_REMOVE (   head,
  elm,
  field
)
Value:
do { \
if ((TAILQ_NEXT((elm), field)) != NULL) \
TAILQ_NEXT((elm), field)->field.tqe_prev = \
(elm)->field.tqe_prev; \
else \
(head)->tqh_last = (elm)->field.tqe_prev; \
_Q_ASSERT((head)->tqh_first != (elm)); \
*(elm)->field.tqe_prev = TAILQ_NEXT((elm), field); \
} while (0)

Definition at line 312 of file queue.h.
