#include "suricata-common.h"
#include "detect-engine.h"
#include "app-layer-parser.h"
#include "util-debug.h"
#include "util-affinity.h"
#include "conf.h"
#include "log-flush.h"
#include "runmodes.h"
#include "runmode-af-packet.h"
#include "runmode-af-xdp.h"
#include "runmode-dpdk.h"
#include "runmode-erf-dag.h"
#include "runmode-erf-file.h"
#include "runmode-ipfw.h"
#include "runmode-lib.h"
#include "runmode-netmap.h"
#include "runmode-nflog.h"
#include "runmode-nfq.h"
#include "runmode-pcap.h"
#include "runmode-pcap-file.h"
#include "runmode-unix-socket.h"
#include "runmode-windivert.h"
#include "util-unittest.h"
#include "util-misc.h"
#include "util-plugin.h"
#include "output.h"
#include "tmqh-flow.h"
#include "flow-manager.h"
#include "flow-bypass.h"
#include "counters.h"
#include "suricata-plugin.h"
#include "util-device-private.h"

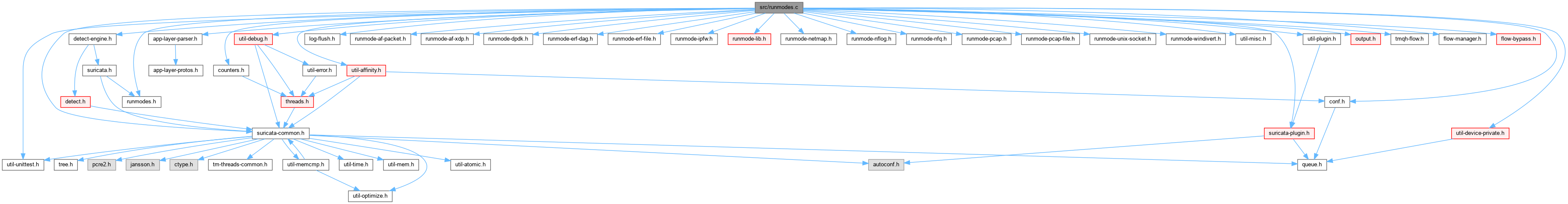

Include dependency graph for runmodes.c:

Data Structures
struct	RunMode_
	Holds description for a runmode. More...

struct	RunModes_

struct	OutputFreeList_

Typedefs
typedef struct RunMode_	RunMode
	Holds description for a runmode.

typedef struct RunModes_	RunModes

typedef struct OutputFreeList_	OutputFreeList

Functions
char *	RunmodeGetActive (void)

bool	RunmodeIsWorkers (void)

bool	RunmodeIsAutofp (void)

const char *	RunModeGetMainMode (void)

void	RunModeRegisterRunModes (void)
	Register all runmodes in the engine.

void	RunModeListRunmodes (void)
	Lists all registered runmodes.

int	RunModeEngineIsIPS (int capture_mode, const char runmode, const char capture_plugin_name)

void	RunModeDispatch (int runmode, const char custom_mode, const char capture_plugin_name, const char *capture_plugin_args)

void	RunModeEnablesBypassManager (void)

int	RunModeNeedsBypassManager (void)

void	RunModeRegisterNewRunMode (enum SCRunModes runmode, const char name, const char description, int(RunModeFunc)(void), int(RunModeIsIPSEnabled)(void))
	Registers a new runmode.

int	RunModeOutputFiledataEnabled (void)

bool	IsRunModeSystem (enum SCRunModes run_mode_to_check)

bool	IsRunModeOffline (enum SCRunModes run_mode_to_check)

void	RunModeShutDown (void)

void	RunModeInitializeOutputs (void)

void	RunModeInitializeThreadSettings (void)

Variables
int	debuglog_enabled = 0

bool	threading_set_cpu_affinity = false

uint64_t	threading_set_stack_size = 0

const char *	thread_name_autofp = "RX"

const char *	thread_name_single = "W"

const char *	thread_name_workers = "W"

const char *	thread_name_verdict = "TX"

const char *	thread_name_flow_mgr = "FM"

const char *	thread_name_flow_rec = "FR"

const char *	thread_name_flow_bypass = "FB"

const char *	thread_name_unix_socket = "US"

const char *	thread_name_detect_loader = "DL"

const char *	thread_name_counter_stats = "CS"

const char *	thread_name_counter_wakeup = "CW"

const char *	thread_name_heartbeat = "HB"

bool	g_file_logger_enabled

bool	g_filedata_logger_enabled

float	threading_detect_ratio = 1

Detailed Description

Author: Victor Julien victo.nosp@m.r@in.nosp@m.linia.nosp@m.c.ne.nosp@m.t

Pre-cooked threading runmodes.

Definition in file runmodes.c.

Typedef Documentation

◆ OutputFreeList

typedef struct OutputFreeList_ OutputFreeList

◆ RunMode

typedef struct RunMode_ RunMode

Holds description for a runmode.

◆ RunModes

typedef struct RunModes_ RunModes

Function Documentation

◆ IsRunModeOffline()

bool IsRunModeOffline ( enum SCRunModes run_mode_to_check )

Definition at line 561 of file runmodes.c.

References RUNMODE_CONF_TEST, RUNMODE_ENGINE_ANALYSIS, RUNMODE_ERF_FILE, RUNMODE_PCAP_FILE, and RUNMODE_UNIX_SOCKET.

Referenced by ConfUnixSocketIsEnable(), SCConfLogOpenGeneric(), and SCParseCommandLine().

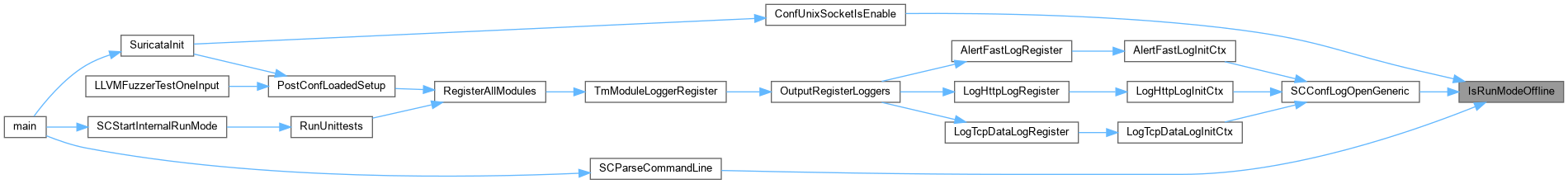

Here is the caller graph for this function:

◆ IsRunModeSystem()

bool IsRunModeSystem ( enum SCRunModes run_mode_to_check )

Definition at line 548 of file runmodes.c.

References RUNMODE_ENGINE_ANALYSIS, RUNMODE_ERF_FILE, and RUNMODE_PCAP_FILE.

Referenced by SCParseCommandLine().

Here is the caller graph for this function:

◆ RunModeDispatch()

void RunModeDispatch	(	int	runmode,
		const char *	custom_mode,
		const char *	capture_plugin_name,
		const char *	capture_plugin_args
	)

Definition at line 409 of file runmodes.c.

References BypassedFlowManagerThreadSpawn(), FatalError, FlowManagerThreadSpawn(), FlowRecyclerThreadSpawn(), LogFlushThreads(), RUNMODE_UNIX_SOCKET, RunMode_::RunModeFunc, RunModeNeedsBypassManager(), SCFree, SCLogError, SCStrdup, StatsSpawnThreads(), TmqhFlowPrintAutofpHandler(), TmThreadsSealThreads(), TmValidateQueueState(), and unlikely.

Referenced by SuricataInit().

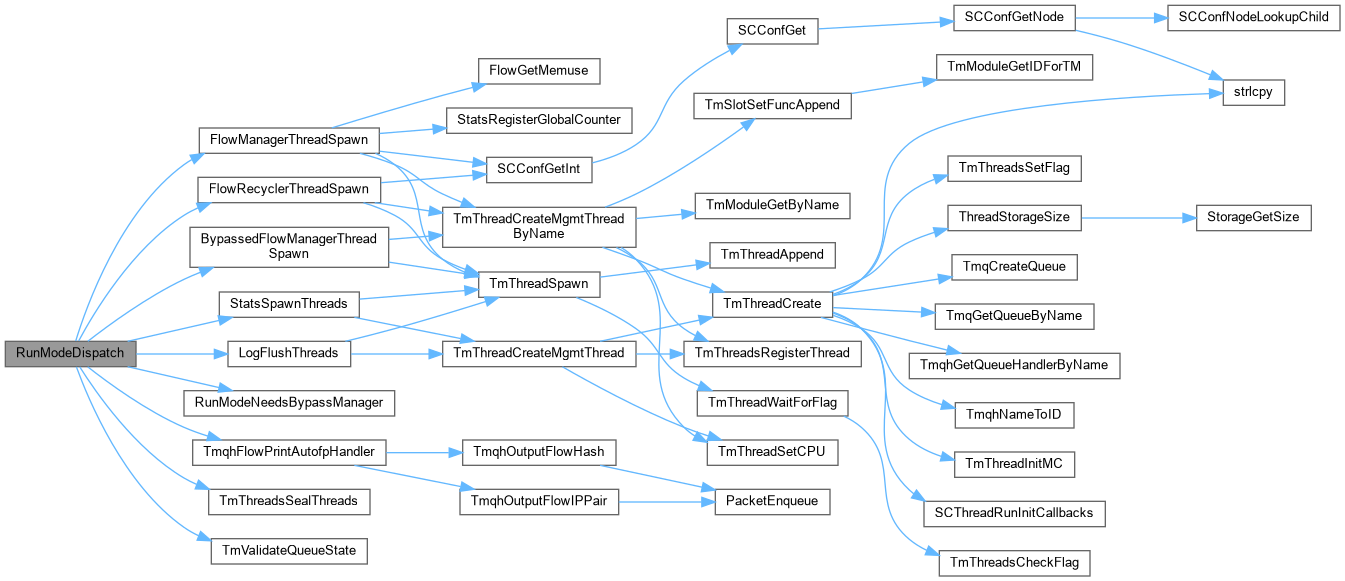

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RunModeEnablesBypassManager()

void RunModeEnablesBypassManager ( void )

Definition at line 465 of file runmodes.c.

◆ RunModeEngineIsIPS()

int RunModeEngineIsIPS	(	int	capture_mode,
		const char *	runmode,
		const char *	capture_plugin_name
	)

Definition at line 379 of file runmodes.c.

References g_livedev_mask, LiveGetDeviceCount(), RunMode_::RunModeIsIPSEnabled, and SCLogWarning.

Referenced by PostConfLoadedSetup().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RunmodeGetActive()

char * RunmodeGetActive ( void )

Return the running mode

The returned string must not be freed.

Returns: a string containing the current running mode

Definition at line 199 of file runmodes.c.

Referenced by RunmodeIsAutofp(), and RunmodeIsWorkers().

Here is the caller graph for this function:

◆ RunModeGetMainMode()

const char * RunModeGetMainMode ( void )

Return the running mode

The returned string must not be freed.

Returns: a string containing the current running mode

Definition at line 221 of file runmodes.c.

References SCRunmodeGet().

Here is the call graph for this function:

◆ RunModeInitializeOutputs()

void RunModeInitializeOutputs ( void )

Initialize the output modules.

Definition at line 769 of file runmodes.c.

References AppLayerParserProtocolHasLogger(), AppLayerParserRegisterLoggerBits(), AppLayerParserSupportsFiles(), AppProtoToString(), BIT_U32, OutputModule_::conf_name, OutputInitResult_::ctx, FatalError, FatalErrorOnInit, g_alproto_max, g_file_logger_enabled, g_filedata_logger_enabled, OutputModule_::InitFunc, OutputModule_::InitSubFunc, LOGGER_FILE, LOGGER_FILEDATA, OutputModule_::name, next, OutputInitResult_::ok, output_modules, OutputSetupActiveLoggers(), SCConfGetNode(), SCConfNodeLookupChild(), SCConfNodeLookupChildValue(), SCConfValIsTrue(), SCLogDebug, SCLogInfo, SCLogWarning, TAILQ_FOREACH, and SCConfNode_::val.

Referenced by PreRunPostPrivsDropInit().

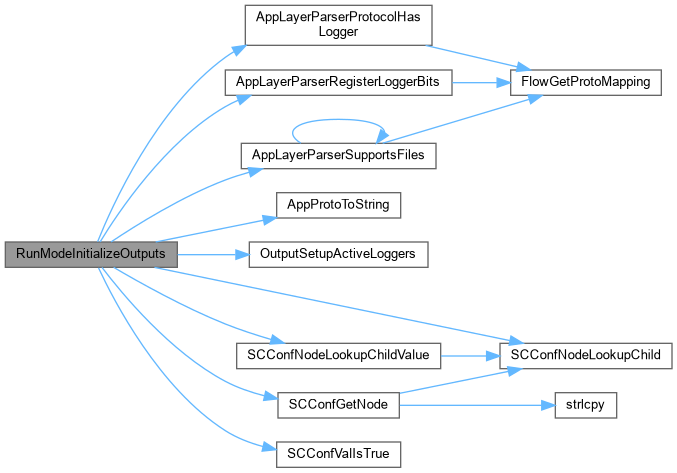

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RunModeInitializeThreadSettings()

void RunModeInitializeThreadSettings ( void )

Initialize multithreading settings.

Definition at line 954 of file runmodes.c.

References AffinitySetupLoadFromConfig(), FatalError, ParseSizeStringU64(), SCConfGet(), SCConfGetBool(), SCConfGetFloat(), SCConfGetNode(), SCLogDebug, SCLogNotice, threading_detect_ratio, threading_set_cpu_affinity, threading_set_stack_size, and WarnInvalidConfEntry.

Referenced by LLVMFuzzerTestOneInput(), and SuricataInit().

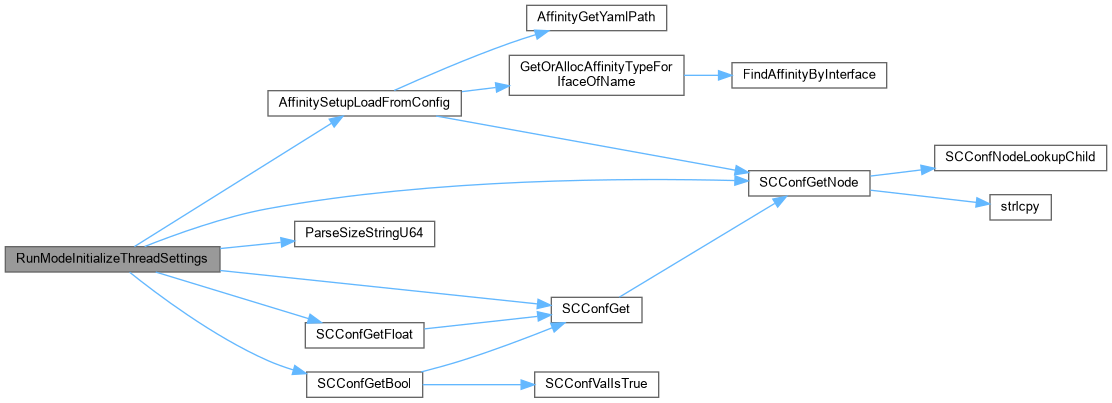

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RunmodeIsAutofp()

bool RunmodeIsAutofp ( void )

Definition at line 209 of file runmodes.c.

References RunmodeGetActive().

Referenced by TmThreadSetupOptions().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RunmodeIsWorkers()

bool RunmodeIsWorkers ( void )

Definition at line 204 of file runmodes.c.

References RunmodeGetActive().

Referenced by TmThreadSetupOptions().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RunModeListRunmodes()

void RunModeListRunmodes ( void )

Lists all registered runmodes.

Definition at line 257 of file runmodes.c.

References RunModes_::cnt, RunMode_::description, RunMode_::name, RunMode_::runmode, RUNMODE_UNKNOWN, RUNMODE_USER_MAX, and RunModes_::runmodes.

Referenced by SCStartInternalRunMode().

Here is the caller graph for this function:

◆ RunModeNeedsBypassManager()

int RunModeNeedsBypassManager ( void )

Definition at line 470 of file runmodes.c.

Referenced by RunModeDispatch().

Here is the caller graph for this function:

◆ RunModeOutputFiledataEnabled()

int RunModeOutputFiledataEnabled ( void )

Definition at line 543 of file runmodes.c.

◆ RunModeRegisterNewRunMode()

void RunModeRegisterNewRunMode	(	enum SCRunModes	runmode,
		const char *	name,
		const char *	description,
		int(*)(void)	RunModeFunc,
		int(*)(void)	RunModeIsIPSEnabled
	)

Registers a new runmode.

Parameters

runmode	Runmode type.
name	Custom mode for this specific runmode type. Within each runmode type, each custom name is a primary key.
description	Description for this runmode.
RunModeFunc	The function to be run for this runmode.

Definition at line 486 of file runmodes.c.

References RunModes_::cnt, cnt, RunMode_::description, FatalError, RunMode_::name, name, RunMode_::runmode, RunMode_::RunModeFunc, RunMode_::RunModeIsIPSEnabled, RunModes_::runmodes, SCFree, SCRealloc, SCStrdup, and unlikely.
