#include <stdint.h>
#include <byteswap.h>

Include dependency graph for util-byte.h:

Macros
#define	BYTE_BIG_ENDIAN 0

#define	BYTE_LITTLE_ENDIAN 1

#define	SCByteSwap16(x) bswap_16(x)

#define	SCByteSwap32(x) bswap_32(x)

#define	SCByteSwap64(x) bswap_64(x)

Functions
char *	BytesToString (const uint8_t *bytes, size_t nbytes)
	Turn byte array into string.

void	BytesToStringBuffer (const uint8_t bytes, size_t nbytes, char outstr, size_t outlen)
	Turn byte array into string.

int WARN_UNUSED	ByteExtractUint64 (uint64_t res, int e, uint16_t len, const uint8_t bytes)

int WARN_UNUSED	ByteExtractUint32 (uint32_t res, int e, uint16_t len, const uint8_t bytes)

int WARN_UNUSED	ByteExtractUint16 (uint16_t res, int e, uint16_t len, const uint8_t bytes)

int WARN_UNUSED	ByteExtractString (uint64_t res, int base, size_t len, const char str, bool strict)

int WARN_UNUSED	ByteExtractStringUint64 (uint64_t res, int base, size_t len, const char str)

int WARN_UNUSED	ByteExtractStringUint32 (uint32_t res, int base, size_t len, const char str)

int WARN_UNUSED	ByteExtractStringUint16 (uint16_t res, int base, size_t len, const char str)

int WARN_UNUSED	ByteExtractStringUint8 (uint8_t res, int base, size_t len, const char str)

int WARN_UNUSED	ByteExtractStringSigned (int64_t res, int base, size_t len, const char str, bool strict)

int WARN_UNUSED	ByteExtractStringInt64 (int64_t res, int base, size_t len, const char str)

int WARN_UNUSED	ByteExtractStringInt32 (int32_t res, int base, size_t len, const char str)

int WARN_UNUSED	ByteExtractStringInt16 (int16_t res, int base, size_t len, const char str)

int WARN_UNUSED	ByteExtractStringInt8 (int8_t res, int base, size_t len, const char str)

int	StringParseUint64 (uint64_t res, int base, size_t len, const char str)

int	StringParseUint32 (uint32_t res, int base, size_t len, const char str)

int	StringParseUint16 (uint16_t res, int base, size_t len, const char str)

int	StringParseUint8 (uint8_t res, int base, size_t len, const char str)

int	StringParseInt64 (int64_t res, int base, size_t len, const char str)

int	StringParseInt32 (int32_t res, int base, size_t len, const char str)

int	StringParseInt16 (int16_t res, int base, size_t len, const char str)

int	StringParseInt8 (int8_t res, int base, size_t len, const char str)

int WARN_UNUSED	StringParseU64RangeCheck (uint64_t res, int base, size_t len, const char str, uint64_t min, uint64_t max)

int WARN_UNUSED	StringParseU32RangeCheck (uint32_t res, int base, size_t len, const char str, uint32_t min, uint32_t max)

int WARN_UNUSED	StringParseU16RangeCheck (uint16_t res, int base, size_t len, const char str, uint16_t min, uint16_t max)

int WARN_UNUSED	StringParseU8RangeCheck (uint8_t res, int base, size_t len, const char str, uint8_t min, uint8_t max)

int WARN_UNUSED	StringParseI64RangeCheck (int64_t res, int base, size_t len, const char str, int64_t min, int64_t max)

int WARN_UNUSED	StringParseI32RangeCheck (int32_t res, int base, size_t len, const char str, int32_t min, int32_t max)

int WARN_UNUSED	StringParseI16RangeCheck (int16_t res, int base, size_t len, const char str, int16_t min, int16_t max)

int WARN_UNUSED	StringParseI8RangeCheck (int8_t res, int base, size_t len, const char str, int8_t min, int8_t max)

void	ByteRegisterTests (void)

int	HexToRaw (const uint8_t in, size_t ins, uint8_t out, size_t outs)

Detailed Description

Author: Brian Rectanus brect.nosp@m.anu@.nosp@m.gmail.nosp@m..com

Definition in file util-byte.h.

Macro Definition Documentation

◆ BYTE_BIG_ENDIAN

#define BYTE_BIG_ENDIAN 0

Definition at line 29 of file util-byte.h.

◆ BYTE_LITTLE_ENDIAN

#define BYTE_LITTLE_ENDIAN 1

Definition at line 30 of file util-byte.h.

◆ SCByteSwap16

#define SCByteSwap16 ( x ) bswap_16(x)

Wrappers for OS dependent byte swapping functions

Definition at line 69 of file util-byte.h.

◆ SCByteSwap32

#define SCByteSwap32 ( x ) bswap_32(x)

Definition at line 70 of file util-byte.h.

◆ SCByteSwap64

#define SCByteSwap64 ( x ) bswap_64(x)

Definition at line 71 of file util-byte.h.

Function Documentation

◆ ByteExtractString()

int WARN_UNUSED ByteExtractString	(	uint64_t *	res,
		int	base,
		size_t	len,
		const char *	str,
		bool	strict
	)

Extract unsigned integer value from a string.

Parameters

res	Stores result
base	Base of the number to extract
len	Number of bytes to extract (23 max or 0 for unbounded)
str	String to extract from
bool	Enable strict check for parsers

Returns: n Number of bytes extracted on success; -1 On error

Definition at line 185 of file util-byte.c.

References len, SCLogDebug, SCLogError, and str.

Referenced by ByteExtractStringUint16(), ByteExtractStringUint32(), ByteExtractStringUint64(), ByteExtractStringUint8(), StringParseU16RangeCheck(), StringParseU32RangeCheck(), StringParseU64RangeCheck(), StringParseU8RangeCheck(), StringParseUint16(), StringParseUint32(), StringParseUint64(), and StringParseUint8().

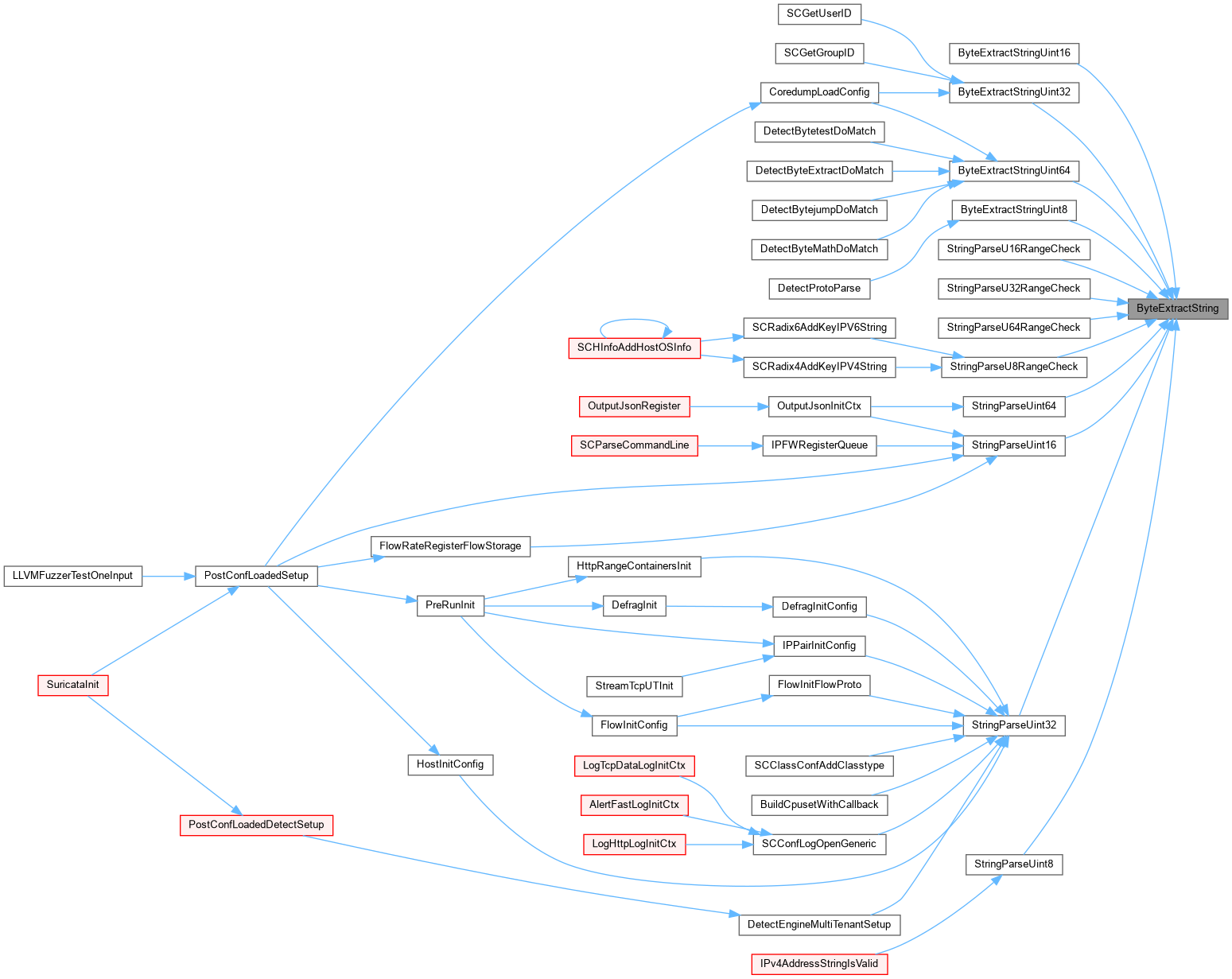

Here is the caller graph for this function:

◆ ByteExtractStringInt16()

int WARN_UNUSED ByteExtractStringInt16	(	int16_t *	res,
		int	base,
		size_t	len,
		const char *	str
	)

Extract signed integer value from a string as uint16_t.

Parameters

res	Stores result
base	Base of the number to extract
len	Number of bytes to extract (23 max or 0 for unbounded)
str	String to extract from

Returns: n Number of bytes extracted on success; -1 On error

Definition at line 567 of file util-byte.c.

References ByteExtractStringSigned(), len, SCLogError, and str.

Here is the call graph for this function:

◆ ByteExtractStringInt32()

int WARN_UNUSED ByteExtractStringInt32	(	int32_t *	res,
		int	base,
		size_t	len,
		const char *	str
	)

Extract signed integer value from a string as uint32_t.

Parameters

res	Stores result
base	Base of the number to extract
len	Number of bytes to extract (23 max or 0 for unbounded)
str	String to extract from

Returns: n Number of bytes extracted on success; -1 On error

Definition at line 542 of file util-byte.c.

References ByteExtractStringSigned(), len, SCLogError, and str.

Here is the call graph for this function:

◆ ByteExtractStringInt64()

int WARN_UNUSED ByteExtractStringInt64	(	int64_t *	res,
		int	base,
		size_t	len,
		const char *	str
	)

Extract signed integer value from a string as uint64_t.

Parameters

res	Stores result
base	Base of the number to extract
len	Number of bytes to extract (23 max or 0 for unbounded)
str	String to extract from

Returns: n Number of bytes extracted on success; -1 On error

Definition at line 537 of file util-byte.c.

References ByteExtractStringSigned(), len, and str.

Here is the call graph for this function:

◆ ByteExtractStringInt8()

int WARN_UNUSED ByteExtractStringInt8	(	int8_t *	res,
		int	base,
		size_t	len,
		const char *	str
	)

Extract signed integer value from a string as uint8_t.

Parameters

res	Stores result
base	Base of the number to extract
len	Number of bytes to extract (23 max or 0 for unbounded)
str	String to extract from

Returns: n Number of bytes extracted on success; -1 On error

Definition at line 592 of file util-byte.c.

References ByteExtractStringSigned(), len, SCLogError, and str.

Here is the call graph for this function:

◆ ByteExtractStringSigned()

int WARN_UNUSED ByteExtractStringSigned	(	int64_t *	res,
		int	base,
		size_t	len,
		const char *	str,
		bool	strict
	)

Extract signed integer value from a string.

Parameters

res	Stores result
base	Base of the number to extract
len	Number of bytes to extract (23 max or 0 for unbounded)
str	String to extract from
bool	Enable strict check for parsers

Returns: n Number of bytes extracted on success; -1 On error

Definition at line 491 of file util-byte.c.

References len, SCLogError, and str.

Referenced by ByteExtractStringInt16(), ByteExtractStringInt32(), ByteExtractStringInt64(), ByteExtractStringInt8(), StringParseI16RangeCheck(), StringParseI32RangeCheck(), StringParseI64RangeCheck(), StringParseI8RangeCheck(), StringParseInt16(), StringParseInt32(), StringParseInt64(), and StringParseInt8().

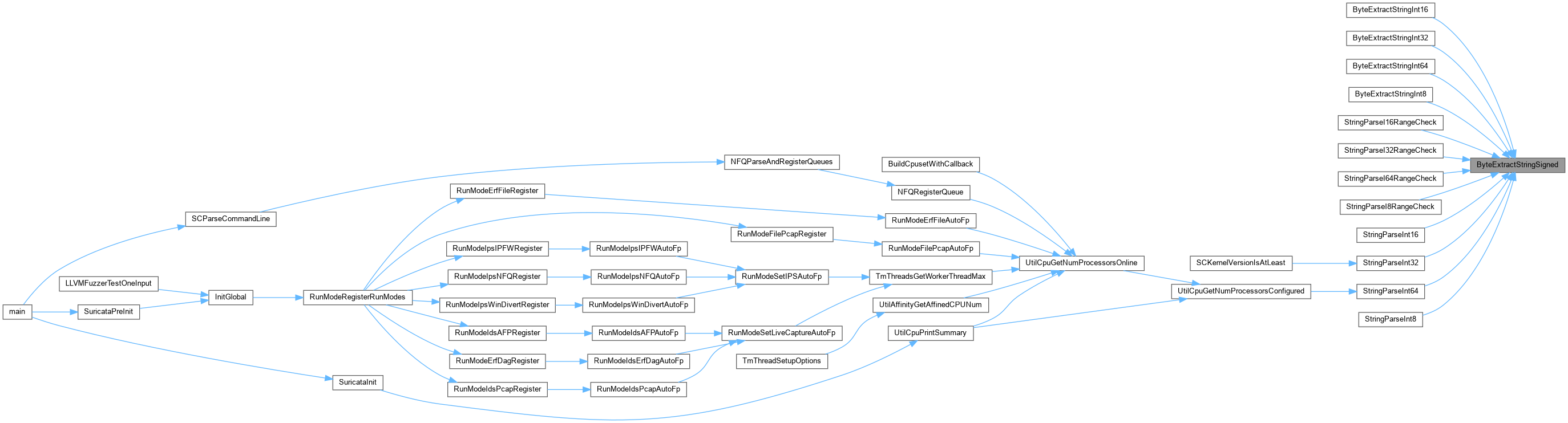

Here is the caller graph for this function:

◆ ByteExtractStringUint16()

int WARN_UNUSED ByteExtractStringUint16	(	uint16_t *	res,
		int	base,
		size_t	len,
		const char *	str
	)

Extract unsigned integer value from a string as uint16_t.

Parameters

res	Stores result
base	Base of the number to extract
len	Number of bytes to extract (23 max or 0 for unbounded)
str	String to extract from

Returns: n Number of bytes extracted on success; -1 On error

Definition at line 262 of file util-byte.c.

References ByteExtractString(), len, SCLogDebug, and str.

Here is the call graph for this function:

◆ ByteExtractStringUint32()

int WARN_UNUSED ByteExtractStringUint32	(	uint32_t *	res,
		int	base,
		size_t	len,
		const char *	str
	)

Extract unsigned integer value from a string as uint32_t.

Parameters

res	Stores result
base	Base of the number to extract
len	Number of bytes to extract (23 max or 0 for unbounded)
str	String to extract from

Returns: n Number of bytes extracted on success; -1 On error

Definition at line 239 of file util-byte.c.

References ByteExtractString(), len, SCLogDebug, and str.

Referenced by CoredumpLoadConfig(), SCGetGroupID(), and SCGetUserID().

Here is the call graph for this function:

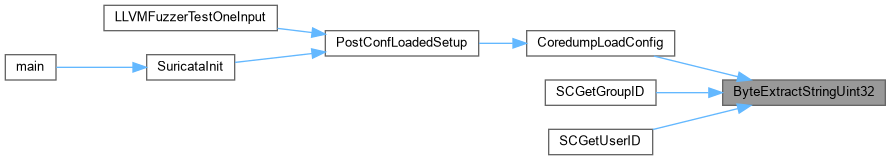

Here is the caller graph for this function:

◆ ByteExtractStringUint64()

int WARN_UNUSED ByteExtractStringUint64	(	uint64_t *	res,
		int	base,
		size_t	len,
		const char *	str
	)

Extract unsigned integer value from a string as uint64_t.

Parameters

res	Stores result
base	Base of the number to extract
len	Number of bytes to extract (23 max or 0 for unbounded)
str	String to extract from

Returns: n Number of bytes extracted on success; -1 On error

Definition at line 234 of file util-byte.c.

References ByteExtractString(), len, and str.

Referenced by CoredumpLoadConfig(), DetectByteExtractDoMatch(), DetectBytejumpDoMatch(), DetectByteMathDoMatch(), and DetectBytetestDoMatch().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ByteExtractStringUint8()

int WARN_UNUSED ByteExtractStringUint8	(	uint8_t *	res,
		int	base,
		size_t	len,
		const char *	str
	)

Extract unsigned integer value from a string as uint8_t.

Parameters

res	Stores result
base	Base of the number to extract
len	Number of bytes to extract (23 max or 0 for unbounded)
str	String to extract from

Returns: n Number of bytes extracted on success; -1 On error

Definition at line 285 of file util-byte.c.

References ByteExtractString(), len, SCLogDebug, and str.

Referenced by DetectProtoParse().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ByteExtractUint16()

int WARN_UNUSED ByteExtractUint16	(	uint16_t *	res,
		int	e,
		uint16_t	len,
		const uint8_t *	bytes
	)

Extract bytes from a byte string and convert to a unint16_t.

Parameters

res	Stores result
e	Endianness (BYTE_BIG_ENDIAN or BYTE_LITTLE_ENDIAN)
len	Number of bytes to extract (8 max)
bytes	Data to extract from

Returns: n Number of bytes extracted on success; -1 On error

Todo:: Need standard return values

Definition at line 164 of file util-byte.c.

References len.

◆ ByteExtractUint32()

int WARN_UNUSED ByteExtractUint32	(	uint32_t *	res,
		int	e,
		uint16_t	len,
		const uint8_t *	bytes
	)

Extract bytes from a byte string and convert to a uint32_t.

Parameters

res	Stores result
e	Endianness (BYTE_BIG_ENDIAN or BYTE_LITTLE_ENDIAN)
len	Number of bytes to extract (8 max)
bytes	Data to extract from

Returns: n Number of bytes extracted on success; -1 On error

Todo:: Need standard return values

Definition at line 143 of file util-byte.c.

References len.

◆ ByteExtractUint64()

int WARN_UNUSED ByteExtractUint64	(	uint64_t *	res,
		int	e,
		uint16_t	len,
		const uint8_t *	bytes
	)

Extract bytes from a byte string and convert to a unint64_t.

Parameters

res	Stores result
e	Endianness (BYTE_BIG_ENDIAN or BYTE_LITTLE_ENDIAN)
len	Number of bytes to extract (8 max)
bytes	Data to extract from

Returns: n Number of bytes extracted on success; -1 On error

Todo:: Need standard return values

Definition at line 122 of file util-byte.c.

References len.

Referenced by DetectByteExtractDoMatch(), DetectBytejumpDoMatch(), DetectByteMathDoMatch(), and DetectBytetestDoMatch().

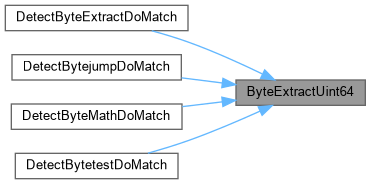

Here is the caller graph for this function:

◆ ByteRegisterTests()

void ByteRegisterTests ( void )

Definition at line 1064 of file util-byte.c.

References UtRegisterTest().

Here is the call graph for this function:

◆ BytesToString()

char * BytesToString	(	const uint8_t *	bytes,
		size_t	nbytes
	)

Turn byte array into string.

All non-printables are copied over, except for '\0', which is turned into literal \0 in the string.

Parameters

bytes	byte array
nbytes	number of bytes

Returns: string nul-terminated string or NULL on error

Definition at line 41 of file util-byte.c.

References dst, and SCCalloc.

◆ BytesToStringBuffer()

void BytesToStringBuffer	(	const uint8_t *	bytes,
		size_t	nbytes,
		char *	outstr,
		size_t	outlen
	)

Turn byte array into string.

All non-printables are copied over, except for '\0', which is turned into literal \0 in the string.

Parameters

bytes	byte array
nbytes	number of bytes
outstr[out]	buffer to fill
outlen	size of outstr. Must be at least 2 * nbytes + 1 in size

Definition at line 85 of file util-byte.c.

References DEBUG_VALIDATE_BUG_ON, dst, and strlcpy().

Here is the call graph for this function:

◆ HexToRaw()

int HexToRaw	(	const uint8_t *	in,
		size_t	ins,
		uint8_t *	out,
		size_t	outs
	)

Definition at line 806 of file util-byte.c.

References SCLogError.

Referenced by DatajsonAddSerialized().

Here is the caller graph for this function:

◆ StringParseI16RangeCheck()

int WARN_UNUSED StringParseI16RangeCheck	(	int16_t *	res,
		int	base,
		size_t	len,
		const char *	str,
		int16_t	min,
		int16_t	max
	)

Extract signed integer value from a string as int16_t strictly within the range.

Parameters

res	Stores result
base	Base of the number to extract
len	Number of bytes to extract (23 max or 0 for unbounded)
str	String to extract from

Returns: n Number of bytes extracted on success; -1 On error

Definition at line 746 of file util-byte.c.

References ByteExtractStringSigned(), len, SCLogError, and str.

Here is the call graph for this function:

◆ StringParseI32RangeCheck()

int WARN_UNUSED StringParseI32RangeCheck	(	int32_t *	res,
		int	base,
		size_t	len,
		const char *	str,
		int32_t	min,
		int32_t	max
	)

Extract signed integer value from a string as int32_t strictly within the range.

Parameters

res	Stores result
base	Base of the number to extract
len	Number of bytes to extract (23 max or 0 for unbounded)
str	String to extract from

Returns: n Number of bytes extracted on success; -1 On error

Definition at line 716 of file util-byte.c.

References ByteExtractStringSigned(), len, SCLogError, and str.

Here is the call graph for this function:

◆ StringParseI64RangeCheck()

int WARN_UNUSED StringParseI64RangeCheck	(	int64_t *	res,
		int	base,
		size_t	len,
		const char *	str,
		int64_t	min,
		int64_t	max
	)

Extract signed integer value from a string as int64_t strictly within the range.

Parameters

res	Stores result
base	Base of the number to extract
len	Number of bytes to extract (23 max or 0 for unbounded)
str	String to extract from

Returns: n Number of bytes extracted on success; -1 On error

Definition at line 697 of file util-byte.c.

References ByteExtractStringSigned(), len, and str.

Here is the call graph for this function:

◆ StringParseI8RangeCheck()

int WARN_UNUSED StringParseI8RangeCheck	(	int8_t *	res,
		int	base,
		size_t	len,
		const char *	str,
		int8_t	min,
		int8_t	max
	)

Extract signed integer value from a string as int8_t strictly within the range.

Parameters

res	Stores result
base	Base of the number to extract
len	Number of bytes to extract (23 max or 0 for unbounded)
str	String to extract from

Returns: n Number of bytes extracted on success; -1 On error

Definition at line 776 of file util-byte.c.

References ByteExtractStringSigned(), len, SCLogError, and str.

Here is the call graph for this function:

◆ StringParseInt16()

int StringParseInt16	(	int16_t *	res,
		int	base,
		size_t	len,
		const char *	str
	)

Extract signed integer value from a string as int16_t strictly.

Parameters

res	Stores result
base	Base of the number to extract
len	Number of bytes to extract (23 max or 0 for unbounded)
str	String to extract from

Returns: n Number of bytes extracted on success; -1 On error

Definition at line 647 of file util-byte.c.

References ByteExtractStringSigned(), len, SCLogError, and str.

Here is the call graph for this function:

◆ StringParseInt32()

int StringParseInt32	(	int32_t *	res,
		int	base,
		size_t	len,
		const char *	str
	)

Extract signed integer value from a string as int32_t strictly.

Parameters

res	Stores result
base	Base of the number to extract
len	Number of bytes to extract (23 max or 0 for unbounded)
str	String to extract from

Returns: n Number of bytes extracted on success; -1 On error

Definition at line 622 of file util-byte.c.

References ByteExtractStringSigned(), len, SCLogError, and str.

Referenced by SCKernelVersionIsAtLeast().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ StringParseInt64()

int StringParseInt64	(	int64_t *	res,
		int	base,
		size_t	len,
		const char *	str
	)

Extract signed integer value from a string as int64_t strictly.

Parameters

res	Stores result
base	Base of the number to extract
len	Number of bytes to extract (23 max or 0 for unbounded)
str	String to extract from

Returns: n Number of bytes extracted on success; -1 On error

Definition at line 617 of file util-byte.c.

References ByteExtractStringSigned(), len, and str.

Referenced by UtilCpuGetNumProcessorsConfigured().

Here is the call graph for this function:

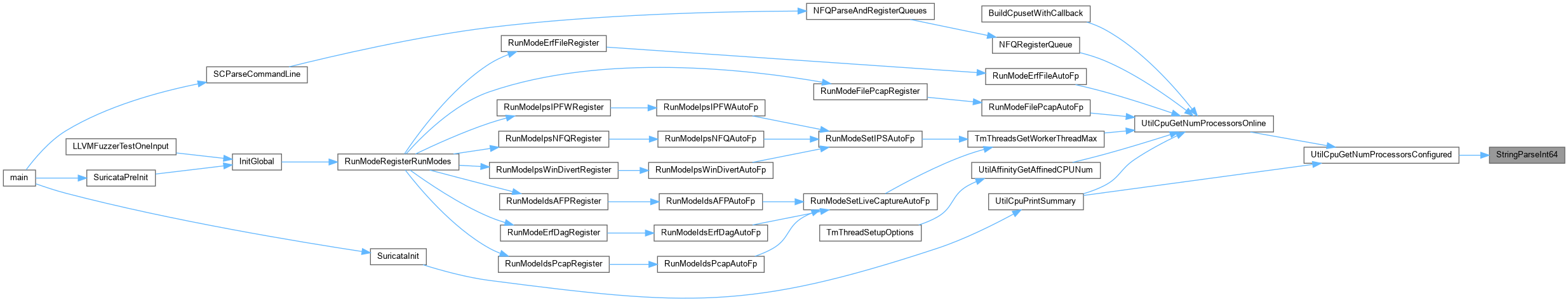

Here is the caller graph for this function:

◆ StringParseInt8()

int StringParseInt8	(	int8_t *	res,
		int	base,
		size_t	len,
		const char *	str
	)

Extract signed integer value from a string as int8_t strictly.

Parameters

res	Stores result
base	Base of the number to extract
len	Number of bytes to extract (23 max or 0 for unbounded)
str	String to extract from

Returns: n Number of bytes extracted on success; -1 On error

Definition at line 672 of file util-byte.c.

References ByteExtractStringSigned(), len, SCLogError, and str.

Here is the call graph for this function:

◆ StringParseU16RangeCheck()

int WARN_UNUSED StringParseU16RangeCheck	(	uint16_t *	res,
		int	base,
		size_t	len,
		const char *	str,
		uint16_t	min,
		uint16_t	max
	)

Extract unsigned integer value from a string as uint16_t strictly within the range.

Parameters

res	Stores result
base	Base of the number to extract
len	Number of bytes to extract (23 max or 0 for unbounded)
str	String to extract from

Returns: n Number of bytes extracted on success; -1 On error

Definition at line 433 of file util-byte.c.

References ByteExtractString(), len, SCLogError, and str.

Here is the call graph for this function:

◆ StringParseU32RangeCheck()

int WARN_UNUSED StringParseU32RangeCheck	(	uint32_t *	res,
		int	base,
		size_t	len,
		const char *	str,
		uint32_t	min,
		uint32_t	max
	)

Extract unsigned integer value from a string as uint32_t strictly within the range.

Parameters

res	Stores result
base	Base of the number to extract
len	Number of bytes to extract (23 max or 0 for unbounded)
str	String to extract from

Returns: n Number of bytes extracted on success; -1 On error

Definition at line 404 of file util-byte.c.

References ByteExtractString(), len, SCLogError, and str.

Here is the call graph for this function:

◆ StringParseU64RangeCheck()

int WARN_UNUSED StringParseU64RangeCheck	(	uint64_t *	res,
		int	base,
		size_t	len,
		const char *	str,
		uint64_t	min,
		uint64_t	max
	)

Extract unsigned integer value from a string as uint64_t strictly within the range.

Parameters

res	Stores result
base	Base of the number to extract
len	Number of bytes to extract (23 max or 0 for unbounded)
str	String to extract from

Returns: n Number of bytes extracted on success; -1 On error

Definition at line 385 of file util-byte.c.

References ByteExtractString(), len, and str.

Here is the call graph for this function:

◆ StringParseU8RangeCheck()

int WARN_UNUSED StringParseU8RangeCheck	(	uint8_t *	res,
		int	base,
		size_t	len,
		const char *	str,
		uint8_t	min,
		uint8_t	max
	)

Extract unsigned integer value from a string as uint8_t strictly within the range.

Parameters

res	Stores result
base	Base of the number to extract
len	Number of bytes to extract (23 max or 0 for unbounded)
str	String to extract from

Returns: n Number of bytes extracted on success; -1 On error

Definition at line 462 of file util-byte.c.

References ByteExtractString(), len, SCLogError, and str.

Referenced by SCRadix4AddKeyIPV4String(), and SCRadix6AddKeyIPV6String().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ StringParseUint16()

int StringParseUint16	(	uint16_t *	res,
		int	base,
		size_t	len,
		const char *	str
	)

Extract unsigned integer value from a string as uint16_t strictly.

Parameters

res	Stores result
base	Base of the number to extract
len	Number of bytes to extract (23 max or 0 for unbounded)
str	String to extract from

Returns: n Number of bytes extracted on success; -1 On error

Definition at line 337 of file util-byte.c.

References ByteExtractString(), len, SCLogError, and str.

Referenced by FlowRateRegisterFlowStorage(), IPFWRegisterQueue(), OutputJsonInitCtx(), and PostConfLoadedSetup().

Here is the call graph for this function:

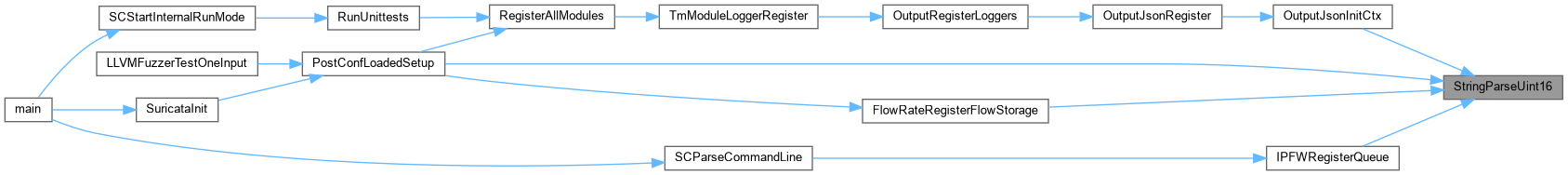

Here is the caller graph for this function:

◆ StringParseUint32()

int StringParseUint32	(	uint32_t *	res,
		int	base,
		size_t	len,
		const char *	str
	)

Extract unsigned integer value from a string as uint32_t strictly.

Parameters

res	Stores result
base	Base of the number to extract
len	Number of bytes to extract (23 max or 0 for unbounded)
str	String to extract from

Returns: n Number of bytes extracted on success; -1 On error

Definition at line 313 of file util-byte.c.

References ByteExtractString(), len, SCLogError, and str.

Referenced by BuildCpusetWithCallback(), DefragInitConfig(), DetectEngineMultiTenantSetup(), FlowInitConfig(), FlowInitFlowProto(), HostInitConfig(), HttpRangeContainersInit(), IPPairInitConfig(), SCClassConfAddClasstype(), and SCConfLogOpenGeneric().

Here is the call graph for this function:

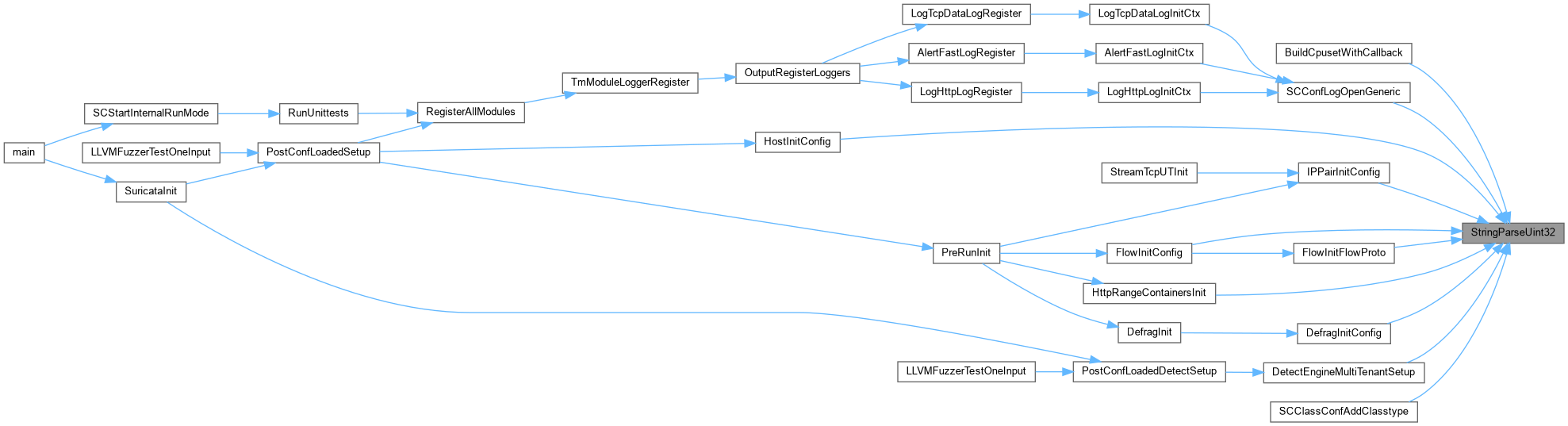

Here is the caller graph for this function:

◆ StringParseUint64()

int StringParseUint64	(	uint64_t *	res,
		int	base,
		size_t	len,
		const char *	str
	)

Extract unsigned integer value from a string as uint64_t strictly.

Parameters

res	Stores result
base	Base of the number to extract
len	Number of bytes to extract (23 max or 0 for unbounded)
str	String to extract from

Returns: n Number of bytes extracted on success; -1 On error

Definition at line 308 of file util-byte.c.

References ByteExtractString(), len, and str.

Referenced by OutputJsonInitCtx().

Here is the call graph for this function:

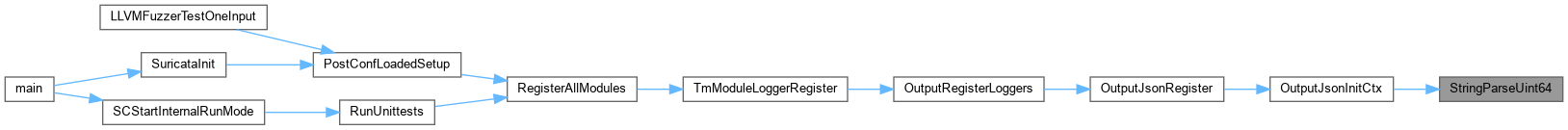

Here is the caller graph for this function:

◆ StringParseUint8()

int StringParseUint8	(	uint8_t *	res,
		int	base,
		size_t	len,
		const char *	str
	)

Extract unsigned integer value from a string as uint8_t strictly.

Parameters

res	Stores result
base	Base of the number to extract
len	Number of bytes to extract (23 max or 0 for unbounded)
str	String to extract from

Returns: n Number of bytes extracted on success; -1 On error

Definition at line 361 of file util-byte.c.

References ByteExtractString(), len, SCLogError, and str.

Referenced by IPv4AddressStringIsValid().

Here is the call graph for this function:

Here is the caller graph for this function:

Macros

Functions

Detailed Description

Macro Definition Documentation

◆ BYTE_BIG_ENDIAN

◆ BYTE_LITTLE_ENDIAN

◆ SCByteSwap16

◆ SCByteSwap32

◆ SCByteSwap64

Function Documentation

◆ ByteExtractString()

◆ ByteExtractStringInt16()

◆ ByteExtractStringInt32()

◆ ByteExtractStringInt64()

◆ ByteExtractStringInt8()

◆ ByteExtractStringSigned()

◆ ByteExtractStringUint16()

◆ ByteExtractStringUint32()

◆ ByteExtractStringUint64()

◆ ByteExtractStringUint8()

◆ ByteExtractUint16()

◆ ByteExtractUint32()

◆ ByteExtractUint64()

◆ ByteRegisterTests()

◆ BytesToString()

◆ BytesToStringBuffer()

◆ HexToRaw()

◆ StringParseI16RangeCheck()

◆ StringParseI32RangeCheck()

◆ StringParseI64RangeCheck()

◆ StringParseI8RangeCheck()

◆ StringParseInt16()

◆ StringParseInt32()

◆ StringParseInt64()

◆ StringParseInt8()

◆ StringParseU16RangeCheck()

◆ StringParseU32RangeCheck()

◆ StringParseU64RangeCheck()

◆ StringParseU8RangeCheck()

◆ StringParseUint16()

◆ StringParseUint32()

◆ StringParseUint64()

◆ StringParseUint8()
