app-layer-frames.h File Reference

#include "rust.h"

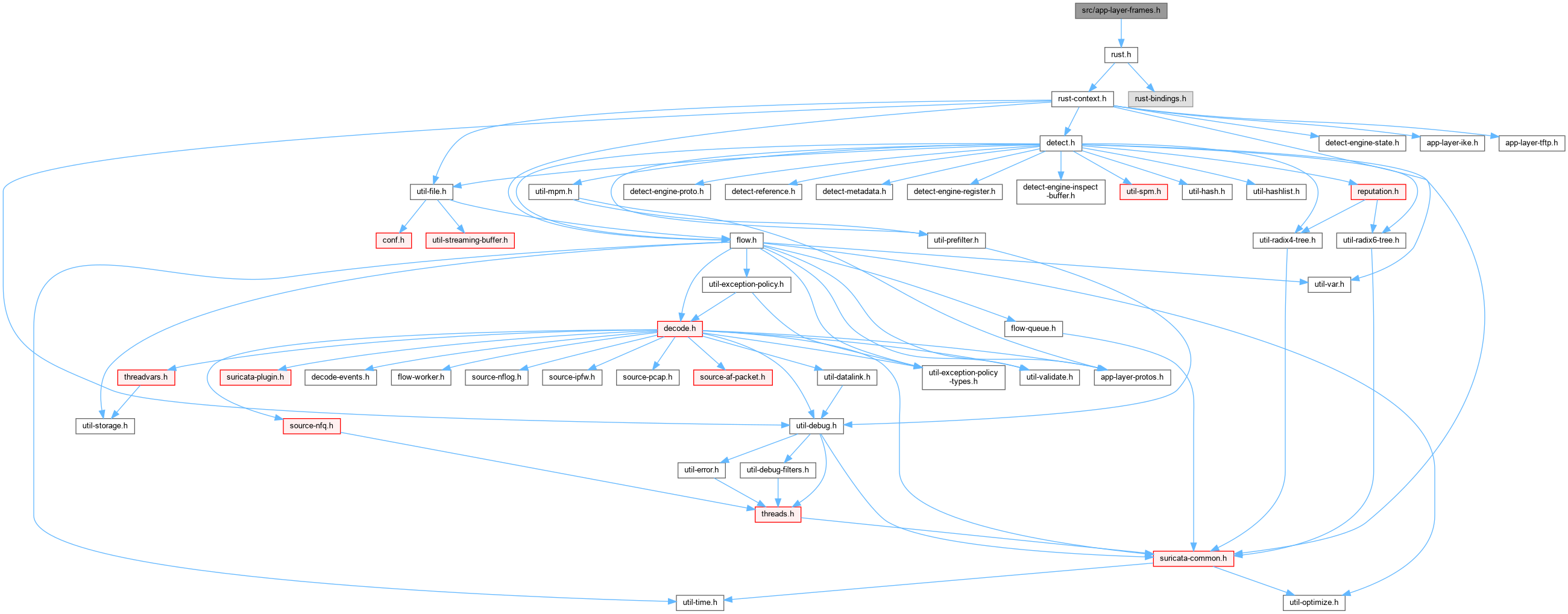

Include dependency graph for app-layer-frames.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	Frame
struct	Frames
struct	FramesContainer

Macros
#define	FRAME_ANY_TYPE   62
#define	FRAME_STREAM_TYPE   63
#define	FRAME_FLAG_TX_ID_SET   BIT_U8(FRAME_FLAGE_TX_ID_SET)
#define	FRAME_FLAG_ENDS_AT_EOF   BIT_U8(FRAME_FLAGE_ENDS_AT_EOF)
#define	FRAME_FLAG_LOGGED   BIT_U8(FRAME_FLAGE_LOGGED)
#define	FRAMES_STATIC_CNT   3

Typedefs
typedef int64_t	FrameId
typedef struct Frame	Frame
typedef struct Frames	Frames
typedef struct FramesContainer	FramesContainer

Enumerations
enum	{ FRAME_FLAGE_TX_ID_SET , FRAME_FLAGE_ENDS_AT_EOF , FRAME_FLAGE_LOGGED }

Functions
void	FramesFree (Frames *frames)
void	FramesPrune (Flow *f, Packet *p)
Frame *	AppLayerFrameNewByPointer (Flow *f, const StreamSlice *stream_slice, const uint8_t *frame_start, const int64_t len, int dir, uint8_t frame_type)
	create new frame using a pointer to start of the frame
Frame *	AppLayerFrameNewByRelativeOffset (Flow *f, const StreamSlice *stream_slice, const uint32_t frame_start_rel, const int64_t len, int dir, uint8_t frame_type)
	create new frame using a relative offset from the start of the stream slice
Frame *	AppLayerFrameNewByAbsoluteOffset (Flow *f, const StreamSlice *stream_slice, const uint64_t frame_start, const int64_t len, int dir, uint8_t frame_type)
	create new frame using the absolute offset from the start of the stream
void	AppLayerFrameDump (Flow *f)
Frame *	FrameGetByIndex (Frames *frames, const uint32_t idx)
Frame *	FrameGetById (Frames *frames, const int64_t id)
Frame *	FrameGetLastOpenByType (Frames *frames, const uint8_t frame_type)
Frame *	AppLayerFrameGetById (Flow *f, const int direction, const FrameId frame_id)
Frame *	AppLayerFrameGetLastOpenByType (Flow *f, const int direction, const uint8_t frame_type)
FrameId	AppLayerFrameGetId (Frame *r)
void	AppLayerFrameAddEvent (Frame *frame, uint8_t e)
void	AppLayerFrameAddEventById (Flow *f, const int dir, const FrameId id, uint8_t e)
void	AppLayerFrameSetLength (Frame *frame, int64_t len)
void	AppLayerFrameSetLengthById (Flow *f, const int dir, const FrameId id, int64_t len)
void	AppLayerFrameSetTxId (Frame *r, uint64_t tx_id)
void	AppLayerFrameSetTxIdById (Flow *f, const int dir, const FrameId id, uint64_t tx_id)
void	AppLayerFramesSlide (Flow *f, const uint32_t slide, const uint8_t direction)
FramesContainer *	AppLayerFramesGetContainer (Flow *f)
FramesContainer *	AppLayerFramesSetupContainer (Flow *f)
void	FrameConfigInit (void)
void	FrameConfigDeInit (void)
void	FrameConfigEnableAll (void)
void	FrameConfigEnable (const AppProto p, const uint8_t type)

Detailed Description

Author

Victor Julien victo.nosp@m.r@in.nosp@m.linia.nosp@m.c.ne.nosp@m.t

Definition in file app-layer-frames.h.

Macro Definition Documentation

FRAME_ANY_TYPE

#define FRAME_ANY_TYPE   62

special value for matching any type

Definition at line 30 of file app-layer-frames.h.

FRAME_FLAG_ENDS_AT_EOF

#define FRAME_FLAG_ENDS_AT_EOF   BIT_U8(FRAME_FLAGE_ENDS_AT_EOF)

Definition at line 40 of file app-layer-frames.h.

FRAME_FLAG_LOGGED

#define FRAME_FLAG_LOGGED   BIT_U8(FRAME_FLAGE_LOGGED)

Definition at line 42 of file app-layer-frames.h.

FRAME_FLAG_TX_ID_SET

#define FRAME_FLAG_TX_ID_SET   BIT_U8(FRAME_FLAGE_TX_ID_SET)

Definition at line 38 of file app-layer-frames.h.

FRAME_STREAM_TYPE

#define FRAME_STREAM_TYPE   63

max 63 to fit the 64 bit per protocol space

Definition at line 32 of file app-layer-frames.h.

FRAMES_STATIC_CNT

#define FRAMES_STATIC_CNT   3

Definition at line 58 of file app-layer-frames.h.

Typedef Documentation

Frame

typedef struct Frame Frame

FrameId

typedef int64_t FrameId

Definition at line 34 of file app-layer-frames.h.

Frames

typedef struct Frames Frames

FramesContainer

typedef struct FramesContainer FramesContainer

Enumeration Type Documentation

anonymous enum

anonymous enum

Enumerator
FRAME_FLAGE_TX_ID_SET
FRAME_FLAGE_ENDS_AT_EOF
FRAME_FLAGE_LOGGED

Definition at line 36 of file app-layer-frames.h.

Function Documentation

AppLayerFrameAddEvent()

void AppLayerFrameAddEvent	(	Frame *	frame,
		uint8_t	e
	)

Definition at line 646 of file app-layer-frames.c.

References Frame::event_cnt, Frame::events, and FrameDebug.

Referenced by AppLayerFrameAddEventById().

Here is the caller graph for this function:

AppLayerFrameAddEventById()

void AppLayerFrameAddEventById	(	Flow *	f,
		const int	dir,
		const FrameId	id,
		uint8_t	e
	)

Definition at line 656 of file app-layer-frames.c.

References AppLayerFrameAddEvent(), and AppLayerFrameGetById().

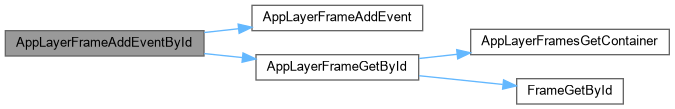

Here is the call graph for this function:

AppLayerFrameDump()

void AppLayerFrameDump

(

Flow *

f

)

Definition at line 589 of file app-layer-frames.c.

References Flow_::alparser, AppLayerFramesGetContainer(), Flow_::proto, Flow_::protoctx, FramesContainer::toclient, and FramesContainer::toserver.

Here is the call graph for this function:

AppLayerFrameGetById()

Frame * AppLayerFrameGetById	(	Flow *	f,
		const int	direction,
		const FrameId	frame_id
	)

Definition at line 700 of file app-layer-frames.c.

References AppLayerFramesGetContainer(), FrameGetById(), SCLogDebug, FramesContainer::toclient, and FramesContainer::toserver.

Referenced by AppLayerFrameAddEventById(), AppLayerFrameSetLengthById(), and AppLayerFrameSetTxIdById().

Here is the call graph for this function:

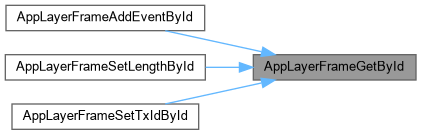

Here is the caller graph for this function:

AppLayerFrameGetId()

FrameId AppLayerFrameGetId

(

Frame *

r

)

Definition at line 662 of file app-layer-frames.c.

References Frame::id.

AppLayerFrameGetLastOpenByType()

Frame * AppLayerFrameGetLastOpenByType	(	Flow *	f,
		const int	direction,
		const uint8_t	frame_type
	)

Definition at line 718 of file app-layer-frames.c.

References Flow_::alproto, AppLayerFramesGetContainer(), FrameGetLastOpenByType(), SCLogDebug, FramesContainer::toclient, and FramesContainer::toserver.

Here is the call graph for this function:

AppLayerFrameNewByAbsoluteOffset()

Frame * AppLayerFrameNewByAbsoluteOffset	(	Flow *	f,
		const StreamSlice *	stream_slice,
		const uint64_t	frame_start,
		const int64_t	len,
		int	dir,
		uint8_t	frame_type
	)

create new frame using the absolute offset from the start of the stream

Definition at line 604 of file app-layer-frames.c.

References Flow_::alparser, Flow_::alproto, AppLayerFramesSetupContainer(), DEBUG_VALIDATE_BUG_ON, len, offset, Flow_::proto, Flow_::protoctx, SCLogDebug, FramesContainer::toclient, and FramesContainer::toserver.

Here is the call graph for this function:

AppLayerFrameNewByPointer()

Frame * AppLayerFrameNewByPointer	(	Flow *	f,
		const StreamSlice *	stream_slice,
		const uint8_t *	frame_start,
		const int64_t	len,
		int	dir,
		uint8_t	frame_type
	)

create new frame using a pointer to start of the frame

Definition at line 463 of file app-layer-frames.c.

References Flow_::alparser, Flow_::alproto, AppLayerFramesSetupContainer(), DEBUG_VALIDATE_BUG_ON, FrameDebug, len, offset, Flow_::proto, Flow_::protoctx, SCLogDebug, FramesContainer::toclient, FramesContainer::toserver, and Frame::type.

Here is the call graph for this function:

AppLayerFrameNewByRelativeOffset()

Frame * AppLayerFrameNewByRelativeOffset	(	Flow *	f,
		const StreamSlice *	stream_slice,
		const uint32_t	frame_start_rel,
		const int64_t	len,
		int	dir,
		uint8_t	frame_type
	)

create new frame using a relative offset from the start of the stream slice

Definition at line 542 of file app-layer-frames.c.

References Flow_::alparser, Flow_::alproto, AppLayerFramesSetupContainer(), BUG_ON, TcpSession_::client, DEBUG_VALIDATE_BUG_ON, len, Flow_::proto, Flow_::protoctx, TcpSession_::server, STREAM_APP_PROGRESS, FramesContainer::toclient, FramesContainer::toserver, and Frame::type.

Here is the call graph for this function:

AppLayerFrameSetLength()

void AppLayerFrameSetLength	(	Frame *	frame,
		int64_t	len
	)

Definition at line 671 of file app-layer-frames.c.

References FrameDebug, len, and Frame::len.

Referenced by AppLayerFrameSetLengthById().

Here is the caller graph for this function:

AppLayerFrameSetLengthById()

void AppLayerFrameSetLengthById	(	Flow *	f,
		const int	dir,
		const FrameId	id,
		int64_t	len
	)

Definition at line 679 of file app-layer-frames.c.

References AppLayerFrameGetById(), AppLayerFrameSetLength(), and len.

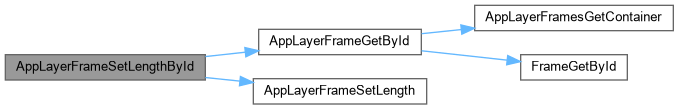

Here is the call graph for this function:

AppLayerFrameSetTxId()

void AppLayerFrameSetTxId	(	Frame *	r,
		uint64_t	tx_id
	)

Definition at line 685 of file app-layer-frames.c.

References Frame::flags, FRAME_FLAG_TX_ID_SET, FrameDebug, and Frame::tx_id.

Referenced by AppLayerFrameSetTxIdById().

Here is the caller graph for this function:

AppLayerFrameSetTxIdById()

void AppLayerFrameSetTxIdById	(	Flow *	f,
		const int	dir,
		const FrameId	id,
		uint64_t	tx_id
	)

Definition at line 694 of file app-layer-frames.c.

References AppLayerFrameGetById(), and AppLayerFrameSetTxId().

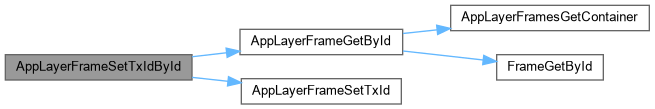

Here is the call graph for this function:

AppLayerFramesGetContainer()

FramesContainer * AppLayerFramesGetContainer

(

Flow *

f

)

Definition at line 184 of file app-layer-parser.c.

References Flow_::alparser, and AppLayerParserState_::frames.

Referenced by AppLayerFrameDump(), AppLayerFrameGetById(), AppLayerFrameGetLastOpenByType(), AppLayerFramesSlide(), FlowNeedsReassembly(), and FramesPrune().

Here is the caller graph for this function:

AppLayerFramesSetupContainer()

FramesContainer * AppLayerFramesSetupContainer

(

Flow *

f

)

Definition at line 191 of file app-layer-parser.c.

References Flow_::alparser, Flow_::alproto, DEBUG_VALIDATE_BUG_ON, AppLayerParserState_::frames, Flow_::proto, Flow_::protoctx, SCCalloc, FramesContainer::toclient, and FramesContainer::toserver.

Referenced by AppLayerFrameNewByAbsoluteOffset(), AppLayerFrameNewByPointer(), and AppLayerFrameNewByRelativeOffset().

Here is the caller graph for this function:

AppLayerFramesSlide()

void AppLayerFramesSlide	(	Flow *	f,
		const uint32_t	slide,
		const uint8_t	direction
	)

Definition at line 408 of file app-layer-frames.c.

References AppLayerFramesGetContainer(), TcpSession_::client, Flow_::protoctx, TcpSession_::server, FramesContainer::toclient, and FramesContainer::toserver.

Referenced by StreamTcpPruneSession().

Here is the call graph for this function:

Here is the caller graph for this function:

FrameConfigDeInit()

void FrameConfigDeInit

(

void

)

Definition at line 50 of file app-layer-frames.c.

References SCFree.

Referenced by AppLayerDeSetup().

Here is the caller graph for this function:

FrameConfigEnable()

void FrameConfigEnable	(	const AppProto	p,
		const uint8_t	type
	)

Definition at line 64 of file app-layer-frames.c.

References BIT_U64, SC_ATOMIC_OR, and type.

FrameConfigEnableAll()

void FrameConfigEnableAll

(

void

)

Definition at line 55 of file app-layer-frames.c.

References g_alproto_max, and SC_ATOMIC_OR.

FrameConfigInit()

void FrameConfigInit

(

void

)

Definition at line 39 of file app-layer-frames.c.

References FatalError, g_alproto_max, SC_ATOMIC_INIT, SCCalloc, and unlikely.

Referenced by AppLayerSetup().

Here is the caller graph for this function:

FrameGetById()

Frame * FrameGetById	(	Frames *	frames,
		const int64_t	id
	)

Definition at line 124 of file app-layer-frames.c.

References Frames::cnt, Frames::dframes, FrameDebug, FRAMES_STATIC_CNT, Frame::id, SCLogDebug, and Frames::sframes.

Referenced by AppLayerFrameGetById().

Here is the caller graph for this function:

FrameGetByIndex()

Frame * FrameGetByIndex	(	Frames *	frames,
		const uint32_t	idx
	)

Definition at line 144 of file app-layer-frames.c.

References Frames::cnt, Frames::dframes, FrameDebug, FRAMES_STATIC_CNT, and Frames::sframes.

FrameGetLastOpenByType()

Frame * FrameGetLastOpenByType	(	Frames *	frames,
		const uint8_t	frame_type
	)

Note

"open" means a frame that has no length set (len == -1)

Todo:

perhaps we can search backwards

Definition at line 101 of file app-layer-frames.c.

References Frames::cnt, Frames::dframes, FrameDebug, FRAMES_STATIC_CNT, Frame::len, SCLogDebug, Frames::sframes, and Frame::type.

Referenced by AppLayerFrameGetLastOpenByType().

Here is the caller graph for this function:

FramesFree()

void FramesFree

(

Frames *

frames

)

Definition at line 453 of file app-layer-frames.c.

References DEBUG_VALIDATE_BUG_ON, Frames::dframes, and SCFree.

FramesPrune()

void FramesPrune	(	Flow *	f,
		Packet *	p
	)

Definition at line 840 of file app-layer-frames.c.

References AppLayerFramesFreeContainer(), AppLayerFramesGetContainer(), TcpSession_::client, TcpSession_::flags, PKT_IS_PSEUDOPKT, PKT_IS_TOSERVER, Packet_::proto, Flow_::proto, Flow_::protoctx, SCLogDebug, TcpSession_::server, TcpSession_::state, STREAMTCP_FLAG_APP_LAYER_DISABLED, TCP_CLOSED, FramesContainer::toclient, and FramesContainer::toserver.

Here is the call graph for this function:
