detect-flowbits.c File Reference

#include "suricata-common.h"
#include "decode.h"
#include "action-globals.h"
#include "detect.h"
#include "threads.h"
#include "flow.h"
#include "flow-bit.h"
#include "flow-util.h"
#include "detect-flowbits.h"
#include "util-spm.h"
#include "rust.h"
#include "app-layer-parser.h"
#include "detect-parse.h"
#include "detect-engine.h"
#include "detect-engine-mpm.h"
#include "detect-engine-state.h"
#include "detect-engine-build.h"
#include "detect-engine-prefilter.h"
#include "tree.h"
#include "util-var-name.h"
#include "util-unittest.h"
#include "util-debug.h"
#include "util-conf.h"

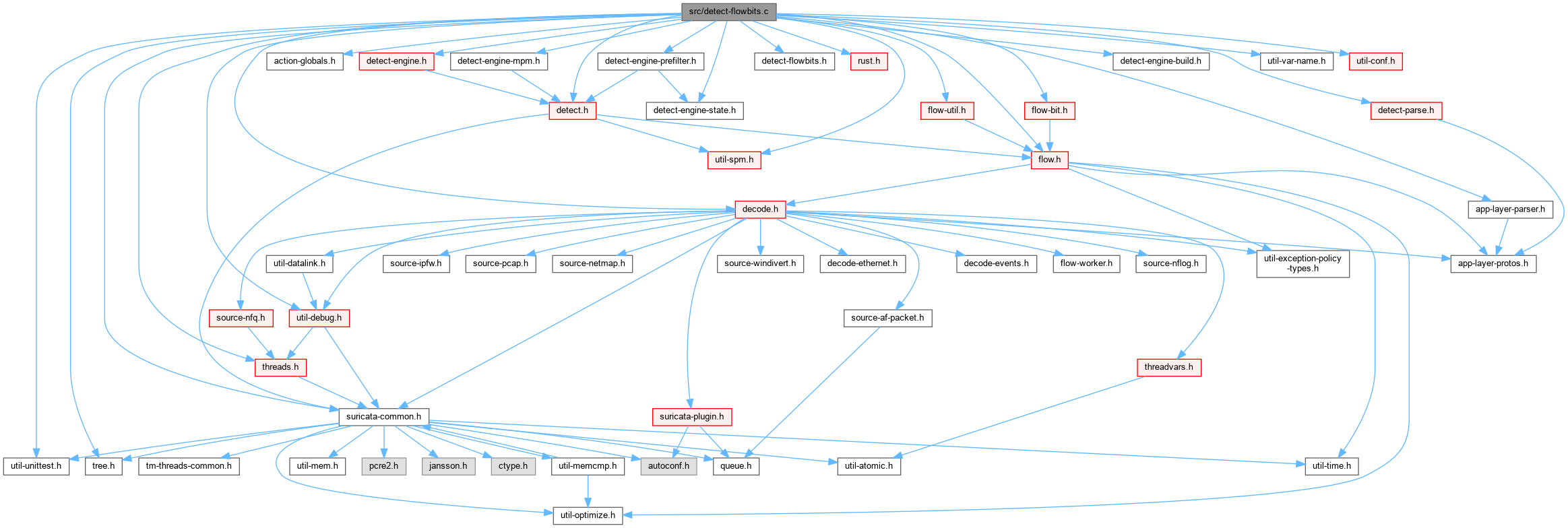

Include dependency graph for detect-flowbits.c:

Go to the source code of this file.

Data Structures
struct	FBAnalyzer
struct	FBAnalyze
struct	PrefilterFlowbit
struct	PrefilterEngineFlowbits

Macros
#define	PARSE_REGEX   "^([a-z]+)(?:,\\s*(.*))?"
#define	MAX_TOKENS   100
#define	MAX_SIDS   8
#define	BLOCK_SIZE   8

Functions
int	DetectFlowbitMatch (DetectEngineThreadCtx *, Packet *, const Signature *, const SigMatchCtx *)
void	DetectFlowbitFree (DetectEngineCtx *, void *)
void	FlowBitsRegisterTests (void)
	this function registers unit tests for FlowBits
void	DetectFlowbitsRegister (void)
int	DetectFlowbitsAnalyze (DetectEngineCtx *de_ctx)
struct PrefilterFlowbit	__attribute__ ((__packed__))
	DNP3 link header.
	RB_HEAD (PFB, PrefilterFlowbit)
	RB_PROTOTYPE (PFB, PrefilterFlowbit, rb, PrefilterFlowbitCompare)
	RB_GENERATE (PFB, PrefilterFlowbit, rb, PrefilterFlowbitCompare)

Variables
bool	rule_engine_analysis_set
SCMutex	g_flowbits_dump_write_m = SCMUTEX_INITIALIZER
uint32_t	id
uint32_t	rule_id_size
uint32_t	rule_id_cnt
uint32_t *	rule_id
struct PrefilterEngineFlowbits	__attribute__
	DNP3 application header.

Detailed Description

Author

Victor Julien victo.nosp@m.r@in.nosp@m.linia.nosp@m.c.ne.nosp@m.t

Breno Silva breno.nosp@m..sil.nosp@m.va@gm.nosp@m.ail..nosp@m.com

Implements the flowbits keyword

Definition in file detect-flowbits.c.

Macro Definition Documentation

BLOCK_SIZE

#define BLOCK_SIZE   8

Definition at line 1044 of file detect-flowbits.c.

MAX_SIDS

#define MAX_SIDS   8

Definition at line 470 of file detect-flowbits.c.

MAX_TOKENS

#define MAX_TOKENS   100

Definition at line 58 of file detect-flowbits.c.

PARSE_REGEX

#define PARSE_REGEX   "^([a-z]+)(?:,\\s*(.*))?"

Definition at line 55 of file detect-flowbits.c.

Function Documentation

DetectFlowbitFree()

void DetectFlowbitFree	(	DetectEngineCtx *	de_ctx,
		void *	ptr
	)

Definition at line 398 of file detect-flowbits.c.

References DetectFlowbitsData_::idx, DetectFlowbitsData_::or_list, DetectFlowbitsData_::or_list_size, SCFree, VAR_TYPE_FLOW_BIT, and VarNameStoreUnregister().

Referenced by DetectFlowbitsRegister().

Here is the call graph for this function:

Here is the caller graph for this function:

DetectFlowbitMatch()

int DetectFlowbitMatch	(	DetectEngineThreadCtx *	det_ctx,
		Packet *	p,
		const Signature *	s,
		const SigMatchCtx *	ctx
	)

Definition at line 206 of file detect-flowbits.c.

References DetectFlowbitsData_::cmd, ctx, DETECT_FLOWBITS, DETECT_FLOWBITS_CMD_ISNOTSET, DETECT_FLOWBITS_CMD_ISSET, DETECT_FLOWBITS_CMD_SET, DETECT_FLOWBITS_CMD_TOGGLE, DETECT_FLOWBITS_CMD_UNSET, DetectFlowbitsData_::idx, DetectFlowbitsData_::post_rule_match_prefilter, PostRuleMatchWorkQueueAppend(), SCLogDebug, and SCLogError.

Referenced by DetectFlowbitsRegister().

Here is the call graph for this function:

Here is the caller graph for this function:

DetectFlowbitsAnalyze()

int DetectFlowbitsAnalyze

(

DetectEngineCtx *

de_ctx

)

Definition at line 569 of file detect-flowbits.c.

References FBAnalyzer::array, FBAnalyzer::array_size, FBAnalyze::cnts, de_ctx, DETECT_FLOWBITS_CMD_ISNOTSET, DETECT_FLOWBITS_CMD_ISSET, DETECT_FLOWBITS_CMD_SET, DETECT_FLOWBITS_CMD_TOGGLE, DETECT_FLOWBITS_CMD_UNSET, Signature_::id, Signature_::init_data, SignatureInitData_::init_flags, SignatureInitData_::is_rule_state_dependant, FBAnalyze::isset_sids, FBAnalyze::isset_sids_idx, DetectEngineCtx_::max_fb_id, rule_engine_analysis_set, SignatureInitData_::rule_state_dependant_sids_array, SignatureInitData_::rule_state_dependant_sids_idx, SignatureInitData_::rule_state_dependant_sids_size, SignatureInitData_::rule_state_flowbits_ids_array, SignatureInitData_::rule_state_flowbits_ids_size, SCCalloc, SCLogDebug, SCLogError, SCLogWarning, SCRealloc, FBAnalyze::set_sids, FBAnalyze::set_sids_idx, DetectEngineCtx_::sig_array, DetectEngineCtx_::sig_array_len, SIG_FLAG_INIT_STATE_MATCH, FBAnalyze::state_cnts, VAR_TYPE_FLOW_BIT, and VarNameStoreSetupLookup().

Referenced by SigPrepareStage1().

Here is the call graph for this function:

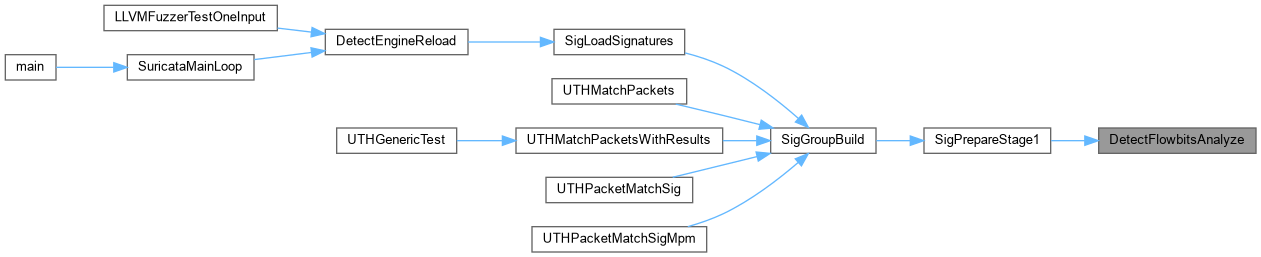

Here is the caller graph for this function:

DetectFlowbitsRegister()

void DetectFlowbitsRegister

(

void

)

Definition at line 71 of file detect-flowbits.c.

References SigTableElmt_::desc, DETECT_FLOWBITS, DETECT_TABLE_APP_FILTER_FLAG, DETECT_TABLE_APP_TD_FLAG, DETECT_TABLE_PACKET_FILTER_FLAG, DETECT_TABLE_PACKET_PRE_STREAM_FLAG, DETECT_TABLE_PACKET_TD_FLAG, DetectFlowbitFree(), DetectFlowbitMatch(), DetectSetupParseRegexes(), SigTableElmt_::flags, FlowBitsRegisterTests(), SigTableElmt_::Free, SigTableElmt_::Match, SigTableElmt_::name, PARSE_REGEX, SigTableElmt_::RegisterTests, SigTableElmt_::Setup, SigTableElmt_::SetupPrefilter, SIGMATCH_IPONLY_COMPAT, SIGMATCH_SUPPORT_FIREWALL, sigmatch_table, SigTableElmt_::SupportsPrefilter, SigTableElmt_::tables, and SigTableElmt_::url.

Referenced by SigTableSetup().

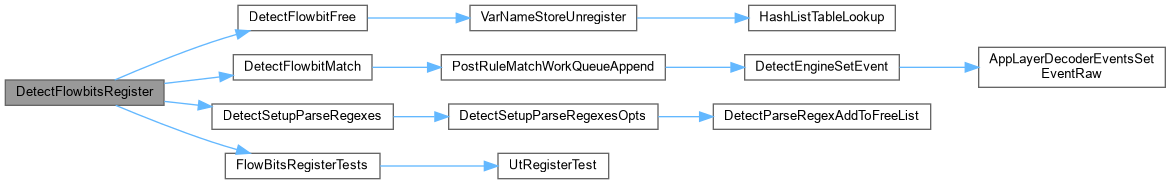

Here is the call graph for this function:

Here is the caller graph for this function:

FlowBitsRegisterTests()

void FlowBitsRegisterTests

(

void

)

this function registers unit tests for FlowBits

Definition at line 1790 of file detect-flowbits.c.

References UtRegisterTest().

Referenced by DetectFlowbitsRegister().

Here is the call graph for this function:

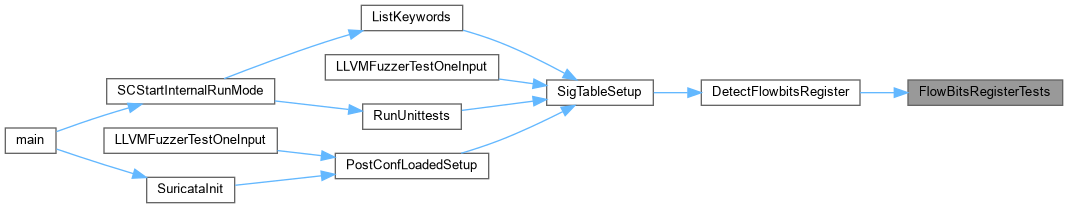

Here is the caller graph for this function:

RB_GENERATE()

RB_GENERATE	(	PFB	,
		PrefilterFlowbit	,
		rb	,
		PrefilterFlowbitCompare
	)

RB_HEAD()

RB_HEAD	(	PFB	,
		PrefilterFlowbit
	)

red-black tree prototype for PFB (Prefilter Flow Bits)

RB_PROTOTYPE()

RB_PROTOTYPE	(	PFB	,
		PrefilterFlowbit	,
		rb	,
		PrefilterFlowbitCompare
	)

Variable Documentation

__attribute__

struct StreamingBufferSegment_ __attribute__

DNP3 application header.

DNP3 internal indicators.

Part of the application header for responses only.

g_flowbits_dump_write_m

SCMutex g_flowbits_dump_write_m = SCMUTEX_INITIALIZER

Definition at line 816 of file detect-flowbits.c.

id

uint32_t id

flowbit id

Definition at line 938 of file detect-flowbits.c.

Referenced by AppLayerProtoDetectDeSetup(), DetectAppLayerMpmRegisterByParentId(), DetectEngineBufferTypeGetById(), DetectRegisterThreadCtxGlobalFuncs(), DetectThreadCtxGetGlobalKeywordThreadCtx(), DetectThreadCtxGetKeywordThreadCtx(), PktVarAdd(), PoolThreadGetById(), PoolThreadLock(), PoolThreadReturn(), PoolThreadReturnRaw(), PoolThreadUnlock(), SCDetectHelperKeywordSetCleanCString(), SCOutputRegisterFiledataLogger(), SCOutputRegisterFileLogger(), SCOutputRegisterStreamingLogger(), SCOutputRegisterTxLogger(), SCProfilingKeywordUpdateCounter(), SCProfilingPrefilterUpdateCounter(), SigMatchSilentErrorEnabled(), StatsAddUI64(), StatsDecr(), StatsGetLocalCounterValue(), StatsIncr(), StatsRegisterAvgCounter(), StatsRegisterCounter(), StatsRegisterGlobalCounter(), StatsRegisterMaxCounter(), StatsSetUI64(), StorageAllocByIdPrealloc(), StorageFreeById(), StorageGetById(), StorageSetById(), TmModuleGetById(), TmqhGetQueueHandlerByID(), and VarNameStoreRegister().

rule_engine_analysis_set

bool rule_engine_analysis_set

extern

Definition at line 56 of file detect-engine-loader.c.

Referenced by DetectFlowbitsAnalyze(), and SigLoadSignatures().

rule_id

uint32_t* rule_id

array of signature iid that are part of this prefilter

Definition at line 941 of file detect-flowbits.c.

rule_id_cnt

uint32_t rule_id_cnt

usage in elements of rule_id

Definition at line 940 of file detect-flowbits.c.

rule_id_size

uint32_t rule_id_size

size in elements of rule_id

Definition at line 939 of file detect-flowbits.c.
