#include "decode-tcp.h"
#include "decode-udp.h"

Include dependency graph for decode-icmpv4.h:

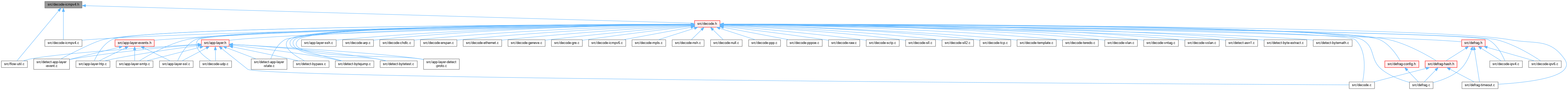

This graph shows which files directly or indirectly include this file:

Data Structures
struct	ICMPV4Hdr_

struct	ICMPV4ExtHdr_

struct	ICMPV4Vars_

struct	ICMPV4RtrAdvert_

struct	ICMPV4Timestamp_

Macros
#define	ICMPV4_HEADER_LEN 8

#define	ICMP_ECHOREPLY 0 /* Echo Reply */

#define	ICMP_DEST_UNREACH 3 /* Destination Unreachable */

#define	ICMP_SOURCE_QUENCH 4 /* Source Quench */

#define	ICMP_REDIRECT 5 /* Redirect (change route) */

#define	ICMP_ECHO 8 /* Echo Request */

#define	ICMP_ROUTERADVERT 9

#define	ICMP_ROUTERSOLICIT 10

#define	ICMP_TIME_EXCEEDED 11 /* Time Exceeded */

#define	ICMP_PARAMETERPROB 12 /* Parameter Problem */

#define	ICMP_TIMESTAMP 13 /* Timestamp Request */

#define	ICMP_TIMESTAMPREPLY 14 /* Timestamp Reply */

#define	ICMP_INFO_REQUEST 15 /* Information Request */

#define	ICMP_INFO_REPLY 16 /* Information Reply */

#define	ICMP_ADDRESS 17 /* Address Mask Request */

#define	ICMP_ADDRESSREPLY 18 /* Address Mask Reply */

#define	NR_ICMP_TYPES 18

#define	ICMP_NET_UNREACH 0 /* Network Unreachable */

#define	ICMP_HOST_UNREACH 1 /* Host Unreachable */

#define	ICMP_PROT_UNREACH 2 /* Protocol Unreachable */

#define	ICMP_PORT_UNREACH 3 /* Port Unreachable */

#define	ICMP_FRAG_NEEDED 4 /* Fragmentation Needed/DF set */

#define	ICMP_SR_FAILED 5 /* Source Route failed */

#define	ICMP_NET_UNKNOWN 6

#define	ICMP_HOST_UNKNOWN 7

#define	ICMP_HOST_ISOLATED 8

#define	ICMP_NET_ANO 9

#define	ICMP_HOST_ANO 10

#define	ICMP_NET_UNR_TOS 11

#define	ICMP_HOST_UNR_TOS 12

#define	ICMP_PKT_FILTERED 13 /* Packet filtered */

#define	ICMP_PREC_VIOLATION 14 /* Precedence violation */

#define	ICMP_PREC_CUTOFF 15 /* Precedence cut off */

#define	NR_ICMP_UNREACH 15 /* instead of hardcoding immediate value */

#define	ICMP_REDIR_NET 0 /* Redirect Net */

#define	ICMP_REDIR_HOST 1 /* Redirect Host */

#define	ICMP_REDIR_NETTOS 2 /* Redirect Net for TOS */

#define	ICMP_REDIR_HOSTTOS 3 /* Redirect Host for TOS */

#define	ICMP_EXC_TTL 0 /* TTL count exceeded */

#define	ICMP_EXC_FRAGTIME 1 /* Fragment Reass time exceeded */

#define	ICMPV4_GET_TYPE(p) (p)->icmpv4h->type

#define	ICMPV4_GET_CODE(p) (p)->icmpv4h->code

#define	CLEAR_ICMPV4_PACKET(p)

#define	ICMPV4_HEADER_PKT_OFFSET 8

#define	ICMPV4_GET_TYPE(p) (p)->icmpv4h->type

#define	ICMPV4_GET_CODE(p) (p)->icmpv4h->code

#define	ICMPV4_GET_RAW_CSUM(p) SCNtohs((p)->icmpv4h->checksum)

#define	ICMPV4_GET_CSUM(p) (p)->icmpv4h->checksum

#define	ICMPV4_GET_ID(p) ((p)->l4.vars.icmpv4.id)

#define	ICMPV4_GET_SEQ(p) ((p)->l4.vars.icmpv4.seq)

#define	ICMPV4_GET_EMB_PROTO(p) (p)->l4.vars.icmpv4.emb_ip4_proto

#define	ICMPV4_GET_HLEN_ICMPV4H(p) (p)->l4.vars.icmpv4.hlen

#define	ICMPV4_DEST_UNREACH_IS_VALID(p)

#define	ICMPV4_IS_ERROR_MSG(type)

Typedefs
typedef struct ICMPV4Hdr_	ICMPV4Hdr

typedef struct ICMPV4ExtHdr_	ICMPV4ExtHdr

typedef struct ICMPV4Vars_	ICMPV4Vars

Functions
struct ICMPV4RtrAdvert_	__attribute__ ((__packed__)) ICMPV4RtrAdvert
	DNP3 link header.

void	DecodeICMPV4RegisterTests (void)
	Registers ICMPV4 unit test.

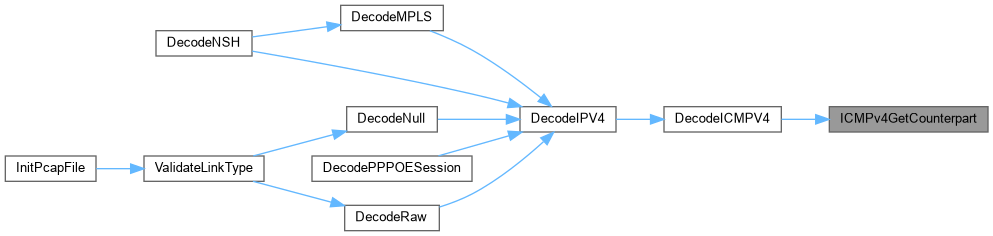

int	ICMPv4GetCounterpart (uint8_t type)

Variables
uint8_t	naddr

uint8_t	addr_sz

uint32_t	orig_ts

uint32_t	rx_ts

uint32_t	tx_ts

Detailed Description

Author: Victor Julien victo.nosp@m.r@in.nosp@m.linia.nosp@m.c.ne.nosp@m.t

Definition in file decode-icmpv4.h.

Macro Definition Documentation

◆ CLEAR_ICMPV4_PACKET

#define CLEAR_ICMPV4_PACKET ( p )

Value:

    do {                                                                                           \
        PACKET_CLEAR_L4VARS((p));                                                                  \
        (p)->icmpv4h = NULL;                                                                       \
    } while (0)

Definition at line 217 of file decode-icmpv4.h.

◆ ICMP_ADDRESS

#define ICMP_ADDRESS 17 /* Address Mask Request */

Definition at line 72 of file decode-icmpv4.h.

◆ ICMP_ADDRESSREPLY

#define ICMP_ADDRESSREPLY 18 /* Address Mask Reply */

Definition at line 75 of file decode-icmpv4.h.

◆ ICMP_DEST_UNREACH

#define ICMP_DEST_UNREACH 3 /* Destination Unreachable */

Definition at line 36 of file decode-icmpv4.h.

◆ ICMP_ECHO

#define ICMP_ECHO 8 /* Echo Request */

Definition at line 45 of file decode-icmpv4.h.

◆ ICMP_ECHOREPLY

#define ICMP_ECHOREPLY 0 /* Echo Reply */

Definition at line 33 of file decode-icmpv4.h.

◆ ICMP_EXC_FRAGTIME

#define ICMP_EXC_FRAGTIME 1 /* Fragment Reass time exceeded */

Definition at line 155 of file decode-icmpv4.h.

◆ ICMP_EXC_TTL

#define ICMP_EXC_TTL 0 /* TTL count exceeded */

Definition at line 152 of file decode-icmpv4.h.

◆ ICMP_FRAG_NEEDED

#define ICMP_FRAG_NEEDED 4 /* Fragmentation Needed/DF set */

Definition at line 96 of file decode-icmpv4.h.

◆ ICMP_HOST_ANO

#define ICMP_HOST_ANO 10

Definition at line 114 of file decode-icmpv4.h.

◆ ICMP_HOST_ISOLATED

#define ICMP_HOST_ISOLATED 8

Definition at line 108 of file decode-icmpv4.h.

◆ ICMP_HOST_UNKNOWN

#define ICMP_HOST_UNKNOWN 7

Definition at line 105 of file decode-icmpv4.h.

◆ ICMP_HOST_UNR_TOS

#define ICMP_HOST_UNR_TOS 12

Definition at line 120 of file decode-icmpv4.h.

◆ ICMP_HOST_UNREACH

#define ICMP_HOST_UNREACH 1 /* Host Unreachable */

Definition at line 87 of file decode-icmpv4.h.

◆ ICMP_INFO_REPLY

#define ICMP_INFO_REPLY 16 /* Information Reply */

Definition at line 69 of file decode-icmpv4.h.

◆ ICMP_INFO_REQUEST

#define ICMP_INFO_REQUEST 15 /* Information Request */

Definition at line 66 of file decode-icmpv4.h.

◆ ICMP_NET_ANO

#define ICMP_NET_ANO 9

Definition at line 111 of file decode-icmpv4.h.

◆ ICMP_NET_UNKNOWN

#define ICMP_NET_UNKNOWN 6

Definition at line 102 of file decode-icmpv4.h.

◆ ICMP_NET_UNR_TOS

#define ICMP_NET_UNR_TOS 11

Definition at line 117 of file decode-icmpv4.h.

◆ ICMP_NET_UNREACH

#define ICMP_NET_UNREACH 0 /* Network Unreachable */

Definition at line 84 of file decode-icmpv4.h.

◆ ICMP_PARAMETERPROB

#define ICMP_PARAMETERPROB 12 /* Parameter Problem */

Definition at line 57 of file decode-icmpv4.h.

◆ ICMP_PKT_FILTERED

#define ICMP_PKT_FILTERED 13 /* Packet filtered */

Definition at line 123 of file decode-icmpv4.h.

◆ ICMP_PORT_UNREACH

#define ICMP_PORT_UNREACH 3 /* Port Unreachable */

Definition at line 93 of file decode-icmpv4.h.

◆ ICMP_PREC_CUTOFF

#define ICMP_PREC_CUTOFF 15 /* Precedence cut off */

Definition at line 130 of file decode-icmpv4.h.

◆ ICMP_PREC_VIOLATION

#define ICMP_PREC_VIOLATION 14 /* Precedence violation */

Definition at line 126 of file decode-icmpv4.h.

◆ ICMP_PROT_UNREACH

#define ICMP_PROT_UNREACH 2 /* Protocol Unreachable */

Definition at line 90 of file decode-icmpv4.h.

◆ ICMP_REDIR_HOST

#define ICMP_REDIR_HOST 1 /* Redirect Host */

Definition at line 141 of file decode-icmpv4.h.

◆ ICMP_REDIR_HOSTTOS

#define ICMP_REDIR_HOSTTOS 3 /* Redirect Host for TOS */

Definition at line 147 of file decode-icmpv4.h.

◆ ICMP_REDIR_NET

#define ICMP_REDIR_NET 0 /* Redirect Net */

Definition at line 138 of file decode-icmpv4.h.

◆ ICMP_REDIR_NETTOS

#define ICMP_REDIR_NETTOS 2 /* Redirect Net for TOS */

Definition at line 144 of file decode-icmpv4.h.

◆ ICMP_REDIRECT

#define ICMP_REDIRECT 5 /* Redirect (change route) */

Definition at line 42 of file decode-icmpv4.h.

◆ ICMP_ROUTERADVERT

#define ICMP_ROUTERADVERT 9

Definition at line 48 of file decode-icmpv4.h.

◆ ICMP_ROUTERSOLICIT

#define ICMP_ROUTERSOLICIT 10

Definition at line 51 of file decode-icmpv4.h.

◆ ICMP_SOURCE_QUENCH

#define ICMP_SOURCE_QUENCH 4 /* Source Quench */

Definition at line 39 of file decode-icmpv4.h.

◆ ICMP_SR_FAILED

#define ICMP_SR_FAILED 5 /* Source Route failed */

Definition at line 99 of file decode-icmpv4.h.

◆ ICMP_TIME_EXCEEDED

#define ICMP_TIME_EXCEEDED 11 /* Time Exceeded */

Definition at line 54 of file decode-icmpv4.h.

◆ ICMP_TIMESTAMP

#define ICMP_TIMESTAMP 13 /* Timestamp Request */

Definition at line 60 of file decode-icmpv4.h.

◆ ICMP_TIMESTAMPREPLY

#define ICMP_TIMESTAMPREPLY 14 /* Timestamp Reply */

Definition at line 63 of file decode-icmpv4.h.

◆ ICMPV4_DEST_UNREACH_IS_VALID

#define ICMPV4_DEST_UNREACH_IS_VALID ( p )

Value:

    ((!((p)->flags & PKT_IS_INVALID)) && PacketIsICMPv4((p)) &&                                    \
            ((p)->icmp_s.type == ICMP_DEST_UNREACH) && (PacketGetICMPv4EmbIPv4((p)) != NULL) &&    \
            (p)->l4.vars.icmpv4.emb_ports_set)

macro for checking if a ICMP DEST UNREACH packet is valid for use in other parts of the engine, such as the flow engine.

Warning: use only after the decoder has processed the packet

Definition at line 253 of file decode-icmpv4.h.

◆ ICMPV4_GET_CODE [1/2]

#define ICMPV4_GET_CODE ( p ) (p)->icmpv4h->code

marco for icmpv4 code access

macro for icmpv4 "code" access

Definition at line 161 of file decode-icmpv4.h.

◆ ICMPV4_GET_CODE [2/2]

#define ICMPV4_GET_CODE ( p ) (p)->icmpv4h->code

marco for icmpv4 code access

macro for icmpv4 "code" access

Definition at line 161 of file decode-icmpv4.h.

◆ ICMPV4_GET_CSUM

#define ICMPV4_GET_CSUM ( p ) (p)->icmpv4h->checksum

Definition at line 231 of file decode-icmpv4.h.

◆ ICMPV4_GET_EMB_PROTO

#define ICMPV4_GET_EMB_PROTO ( p ) (p)->l4.vars.icmpv4.emb_ip4_proto

macro for icmpv4 embedded "protocol" access

Definition at line 243 of file decode-icmpv4.h.

◆ ICMPV4_GET_HLEN_ICMPV4H

#define ICMPV4_GET_HLEN_ICMPV4H ( p ) (p)->l4.vars.icmpv4.hlen

macro for icmpv4 header length

Definition at line 246 of file decode-icmpv4.h.

◆ ICMPV4_GET_ID

#define ICMPV4_GET_ID ( p ) ((p)->l4.vars.icmpv4.id)

macro for icmpv4 "id" access

Definition at line 236 of file decode-icmpv4.h.

◆ ICMPV4_GET_RAW_CSUM

#define ICMPV4_GET_RAW_CSUM ( p ) SCNtohs((p)->icmpv4h->checksum)

macro for icmpv4 "csum" access

Definition at line 230 of file decode-icmpv4.h.

◆ ICMPV4_GET_SEQ

#define ICMPV4_GET_SEQ ( p ) ((p)->l4.vars.icmpv4.seq)

macro for icmpv4 "seq" access

Definition at line 238 of file decode-icmpv4.h.

◆ ICMPV4_GET_TYPE [1/2]

#define ICMPV4_GET_TYPE ( p ) (p)->icmpv4h->type

marco for icmpv4 type access

macro for icmpv4 "type" access

Definition at line 159 of file decode-icmpv4.h.

◆ ICMPV4_GET_TYPE [2/2]

#define ICMPV4_GET_TYPE ( p ) (p)->icmpv4h->type

marco for icmpv4 type access

macro for icmpv4 "type" access

Definition at line 159 of file decode-icmpv4.h.

◆ ICMPV4_HEADER_LEN

#define ICMPV4_HEADER_LEN 8

Definition at line 30 of file decode-icmpv4.h.

◆ ICMPV4_HEADER_PKT_OFFSET

#define ICMPV4_HEADER_PKT_OFFSET 8

Definition at line 223 of file decode-icmpv4.h.

◆ ICMPV4_IS_ERROR_MSG

#define ICMPV4_IS_ERROR_MSG ( type )

Value:

((type) == ICMP_DEST_UNREACH || (type) == ICMP_SOURCE_QUENCH || (type) == ICMP_REDIRECT || \

(type) == ICMP_TIME_EXCEEDED || (type) == ICMP_PARAMETERPROB)

ICMP_SOURCE_QUENCH

#define ICMP_SOURCE_QUENCH

Definition decode-icmpv4.h:39

ICMP_TIME_EXCEEDED

#define ICMP_TIME_EXCEEDED

Definition decode-icmpv4.h:54

ICMP_PARAMETERPROB

#define ICMP_PARAMETERPROB

Definition decode-icmpv4.h:57

ICMP_REDIRECT

#define ICMP_REDIRECT

Definition decode-icmpv4.h:42

type

uint16_t type

Definition decode-vlan.c:106

marco for checking if a ICMP packet is an error message or an query message.

Todo:: This check is used in the flow engine and needs to be as cheap as possible. Consider setting a bitflag at the decoder stage so we can to a bit check instead of the more expensive check below.

Definition at line 267 of file decode-icmpv4.h.

◆ NR_ICMP_TYPES

#define NR_ICMP_TYPES 18

Definition at line 78 of file decode-icmpv4.h.

◆ NR_ICMP_UNREACH

#define NR_ICMP_UNREACH 15 /* instead of hardcoding immediate value */

Definition at line 133 of file decode-icmpv4.h.

Typedef Documentation

◆ ICMPV4ExtHdr

typedef struct ICMPV4ExtHdr_ ICMPV4ExtHdr

◆ ICMPV4Hdr

typedef struct ICMPV4Hdr_ ICMPV4Hdr

◆ ICMPV4Vars

typedef struct ICMPV4Vars_ ICMPV4Vars

Function Documentation

◆ DecodeICMPV4RegisterTests()

void DecodeICMPV4RegisterTests ( void )

Registers ICMPV4 unit test.

Definition at line 793 of file decode-icmpv4.c.

References UtRegisterTest().

Here is the call graph for this function:

◆ ICMPv4GetCounterpart()

int ICMPv4GetCounterpart ( uint8_t type )

Return values

type	counterpart type or -1

Definition at line 345 of file decode-icmpv4.c.

References CASE_CODE, ICMP_ADDRESS, ICMP_ADDRESSREPLY, ICMP_ECHO, ICMP_ECHOREPLY, ICMP_INFO_REPLY, ICMP_INFO_REQUEST, ICMP_ROUTERADVERT, ICMP_ROUTERSOLICIT, ICMP_TIMESTAMP, ICMP_TIMESTAMPREPLY, and type.

Referenced by DecodeICMPV4().

Here is the caller graph for this function:

Variable Documentation

◆ addr_sz

uint8_t addr_sz

Size of each advertised address

Definition at line 4 of file decode-icmpv4.h.

◆ naddr

uint8_t naddr

Number of advertised addresses

Definition at line 1 of file decode-icmpv4.h.

◆ orig_ts

uint32_t orig_ts

Definition at line 0 of file decode-icmpv4.h.

◆ rx_ts

uint32_t rx_ts

Definition at line 1 of file decode-icmpv4.h.

◆ tx_ts

uint32_t tx_ts

Definition at line 2 of file decode-icmpv4.h.

Data Structures

Macros

Typedefs

Functions

Variables

Detailed Description

Macro Definition Documentation

◆ CLEAR_ICMPV4_PACKET

◆ ICMP_ADDRESS

◆ ICMP_ADDRESSREPLY

◆ ICMP_DEST_UNREACH

◆ ICMP_ECHO

◆ ICMP_ECHOREPLY

◆ ICMP_EXC_FRAGTIME

◆ ICMP_EXC_TTL

◆ ICMP_FRAG_NEEDED

◆ ICMP_HOST_ANO

◆ ICMP_HOST_ISOLATED

◆ ICMP_HOST_UNKNOWN

◆ ICMP_HOST_UNR_TOS

◆ ICMP_HOST_UNREACH

◆ ICMP_INFO_REPLY

◆ ICMP_INFO_REQUEST

◆ ICMP_NET_ANO

◆ ICMP_NET_UNKNOWN

◆ ICMP_NET_UNR_TOS

◆ ICMP_NET_UNREACH

◆ ICMP_PARAMETERPROB

◆ ICMP_PKT_FILTERED

◆ ICMP_PORT_UNREACH

◆ ICMP_PREC_CUTOFF

◆ ICMP_PREC_VIOLATION

◆ ICMP_PROT_UNREACH

◆ ICMP_REDIR_HOST

◆ ICMP_REDIR_HOSTTOS

◆ ICMP_REDIR_NET

◆ ICMP_REDIR_NETTOS

◆ ICMP_REDIRECT

◆ ICMP_ROUTERADVERT

◆ ICMP_ROUTERSOLICIT

◆ ICMP_SOURCE_QUENCH

◆ ICMP_SR_FAILED

◆ ICMP_TIME_EXCEEDED

◆ ICMP_TIMESTAMP

◆ ICMP_TIMESTAMPREPLY

◆ ICMPV4_DEST_UNREACH_IS_VALID

◆ ICMPV4_GET_CODE [1/2]

◆ ICMPV4_GET_CODE [2/2]

◆ ICMPV4_GET_CSUM

◆ ICMPV4_GET_EMB_PROTO

◆ ICMPV4_GET_HLEN_ICMPV4H

◆ ICMPV4_GET_ID

◆ ICMPV4_GET_RAW_CSUM

◆ ICMPV4_GET_SEQ

◆ ICMPV4_GET_TYPE [1/2]

◆ ICMPV4_GET_TYPE [2/2]

◆ ICMPV4_HEADER_LEN

◆ ICMPV4_HEADER_PKT_OFFSET

◆ ICMPV4_IS_ERROR_MSG

◆ NR_ICMP_TYPES

◆ NR_ICMP_UNREACH

Typedef Documentation

◆ ICMPV4ExtHdr

◆ ICMPV4Hdr

◆ ICMPV4Vars

Function Documentation

◆ DecodeICMPV4RegisterTests()

◆ ICMPv4GetCounterpart()

Variable Documentation

◆ addr_sz

◆ naddr

◆ orig_ts

◆ rx_ts

◆ tx_ts
