#include "suricata-common.h"
#include "queue.h"
#include "suricata.h"
#include "threads.h"
#include "conf.h"
#include "decode-ipv6.h"
#include "util-hashlist.h"
#include "util-pool.h"
#include "util-time.h"
#include "util-print.h"
#include "util-debug.h"
#include "util-fix_checksum.h"
#include "util-random.h"
#include "stream-tcp-private.h"
#include "stream-tcp-reassemble.h"
#include "util-host-os-info.h"
#include "util-validate.h"
#include "defrag.h"
#include "defrag-hash.h"
#include "defrag-config.h"
#include "tmqh-packetpool.h"
#include "decode.h"
#include "util-unittest.h"
#include "util-unittest-helper.h"
#include "packet.h"

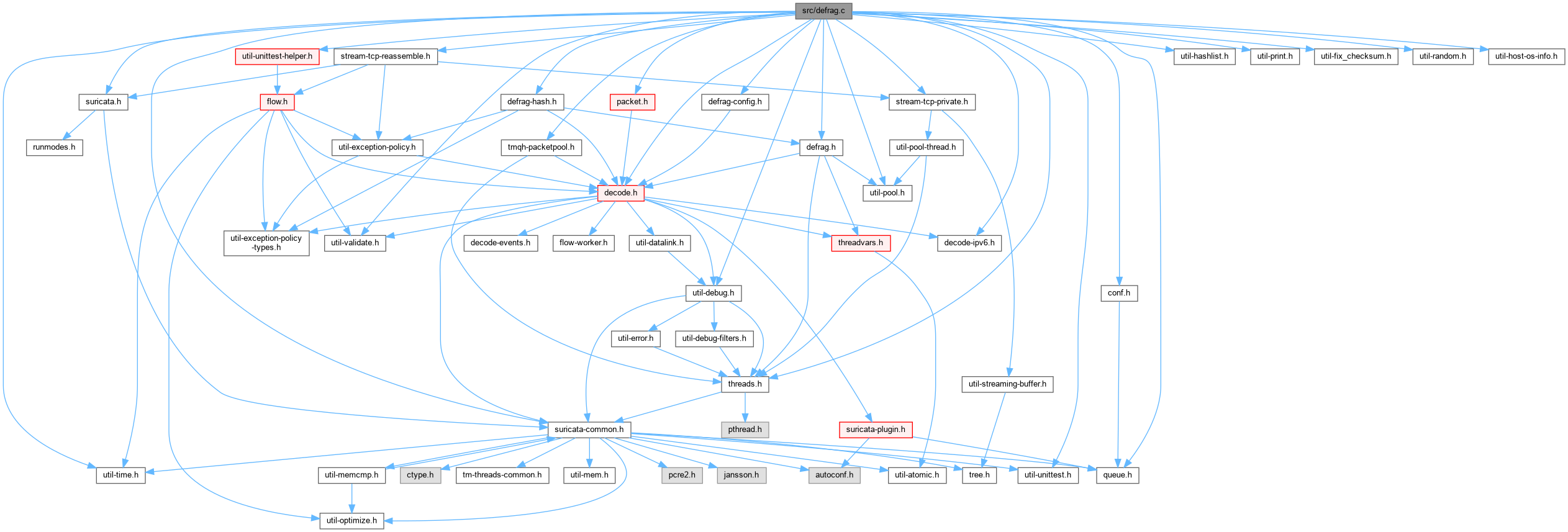

Include dependency graph for defrag.c:

Macros
#define	DEFAULT_DEFRAG_HASH_SIZE 0xffff

#define	DEFAULT_DEFRAG_POOL_SIZE 0xffff

#define	TIMEOUT_DEFAULT 60

#define	TIMEOUT_MAX (60 * 60 * 24)

#define	TIMEOUT_MIN 1

#define	IP_MF 0x2000

#define	D_1 'A', 'A', 'A', 'A', 'A', 'A', 'A', 'A'

#define	D_2 'B', 'B', 'B', 'B', 'B', 'B', 'B', 'B'

#define	D_3 'C', 'C', 'C', 'C', 'C', 'C', 'C', 'C'

#define	D_3_1 'D', 'D', 'D', 'D', 'D', 'D', 'D', 'D'

#define	D_3_2 'E', 'E', 'E', 'E', 'E', 'E', 'E', 'E'

#define	D_3_3 'F', 'F', 'F', 'F', 'F', 'F', 'F', 'F'

#define	D_3_4 'G', 'G', 'G', 'G', 'G', 'G', 'G', 'G'

#define	D_3_5 'H', 'H', 'H', 'H', 'H', 'H', 'H', 'H'

#define	D_3_6 'I', 'I', 'I', 'I', 'I', 'I', 'I', 'I'

#define	D_4 'J', 'J', 'J', 'J', 'J', 'J', 'J', 'J'

#define	D_5 'K', 'K', 'K', 'K', 'K', 'K', 'K', 'K'

#define	D_6 'L', 'L', 'L', 'L', 'L', 'L', 'L', 'L'

#define	D_7 'M', 'M', 'M', 'M', 'M', 'M', 'M', 'M'

#define	D_8 'N', 'N', 'N', 'N', 'N', 'N', 'N', 'N'

#define	D_9 'O', 'O', 'O', 'O', 'O', 'O', 'O', 'O'

#define	D_10 'P', 'P', 'P', 'P', 'P', 'P', 'P', 'P'

#define	D_11 'Q', 'Q', 'Q', 'Q', 'Q', 'Q', 'Q', 'Q'

Enumerations
enum	defrag_policies { DEFRAG_POLICY_FIRST = 1 , DEFRAG_POLICY_LAST , DEFRAG_POLICY_BSD , DEFRAG_POLICY_BSD_RIGHT , DEFRAG_POLICY_LINUX , DEFRAG_POLICY_WINDOWS , DEFRAG_POLICY_SOLARIS , DEFRAG_POLICY_DEFAULT = DEFRAG_POLICY_BSD }

Functions
	RB_GENERATE (IP_FRAGMENTS, Frag_, rb, DefragRbFragCompare)

void	DefragTrackerFreeFrags (DefragTracker *tracker)
	Free all frags associated with a tracker.

int	DefragRbFragCompare (struct Frag_ a, struct Frag_ b)

uint8_t	DefragGetOsPolicy (Packet *p)
	Get the defrag policy based on the destination address of the packet.

Packet *	Defrag (ThreadVars tv, DecodeThreadVars dtv, Packet *p)
	Entry point for IPv4 and IPv6 fragments.

void	DefragInit (void)

void	DefragDestroy (void)

void	DefragRegisterTests (void)

Variables
ThreadVars	test_tv = { 0 }

DecodeThreadVars	test_dtv = { 0 }

Detailed Description

Author: Endace Technology Limited, Jason Ish jason.nosp@m..ish.nosp@m.@enda.nosp@m.ce.c.nosp@m.om

Defragmentation module. References:

RFC 815
OpenBSD PF's IP normalization (pf_norm.c)

Todo:

pool for frag packet storage

policy bsd-right

profile hash function

log anomalies

Definition in file defrag.c.

Macro Definition Documentation

◆ D_1

#define D_1 'A', 'A', 'A', 'A', 'A', 'A', 'A', 'A'

Definition at line 1845 of file defrag.c.

◆ D_10

#define D_10 'P', 'P', 'P', 'P', 'P', 'P', 'P', 'P'

Definition at line 1860 of file defrag.c.

◆ D_11

#define D_11 'Q', 'Q', 'Q', 'Q', 'Q', 'Q', 'Q', 'Q'

Definition at line 1861 of file defrag.c.

◆ D_2

#define D_2 'B', 'B', 'B', 'B', 'B', 'B', 'B', 'B'

Definition at line 1846 of file defrag.c.

◆ D_3

#define D_3 'C', 'C', 'C', 'C', 'C', 'C', 'C', 'C'

Definition at line 1847 of file defrag.c.

◆ D_3_1

#define D_3_1 'D', 'D', 'D', 'D', 'D', 'D', 'D', 'D'

Definition at line 1848 of file defrag.c.

◆ D_3_2

#define D_3_2 'E', 'E', 'E', 'E', 'E', 'E', 'E', 'E'

Definition at line 1849 of file defrag.c.

◆ D_3_3

#define D_3_3 'F', 'F', 'F', 'F', 'F', 'F', 'F', 'F'

Definition at line 1850 of file defrag.c.

◆ D_3_4

#define D_3_4 'G', 'G', 'G', 'G', 'G', 'G', 'G', 'G'

Definition at line 1851 of file defrag.c.

◆ D_3_5

#define D_3_5 'H', 'H', 'H', 'H', 'H', 'H', 'H', 'H'

Definition at line 1852 of file defrag.c.

◆ D_3_6

#define D_3_6 'I', 'I', 'I', 'I', 'I', 'I', 'I', 'I'

Definition at line 1853 of file defrag.c.

◆ D_4

#define D_4 'J', 'J', 'J', 'J', 'J', 'J', 'J', 'J'

Definition at line 1854 of file defrag.c.

◆ D_5

#define D_5 'K', 'K', 'K', 'K', 'K', 'K', 'K', 'K'

Definition at line 1855 of file defrag.c.

◆ D_6

#define D_6 'L', 'L', 'L', 'L', 'L', 'L', 'L', 'L'

Definition at line 1856 of file defrag.c.

◆ D_7

#define D_7 'M', 'M', 'M', 'M', 'M', 'M', 'M', 'M'

Definition at line 1857 of file defrag.c.

◆ D_8

#define D_8 'N', 'N', 'N', 'N', 'N', 'N', 'N', 'N'

Definition at line 1858 of file defrag.c.

◆ D_9

#define D_9 'O', 'O', 'O', 'O', 'O', 'O', 'O', 'O'

Definition at line 1859 of file defrag.c.

◆ DEFAULT_DEFRAG_HASH_SIZE

#define DEFAULT_DEFRAG_HASH_SIZE 0xffff

Definition at line 65 of file defrag.c.

◆ DEFAULT_DEFRAG_POOL_SIZE

#define DEFAULT_DEFRAG_POOL_SIZE 0xffff

Definition at line 66 of file defrag.c.

◆ IP_MF

#define IP_MF 0x2000

Definition at line 1141 of file defrag.c.

◆ TIMEOUT_DEFAULT

#define TIMEOUT_DEFAULT 60

Default timeout (in seconds) before a defragmentation tracker will be released.

Definition at line 72 of file defrag.c.

◆ TIMEOUT_MAX

#define TIMEOUT_MAX (60 * 60 * 24)

Maximum allowed timeout, 24 hours.

Definition at line 77 of file defrag.c.

◆ TIMEOUT_MIN

#define TIMEOUT_MIN 1

Minimum allowed timeout, 1 second.

Definition at line 82 of file defrag.c.

Enumeration Type Documentation

◆ defrag_policies

enum defrag_policies

Fragment reassembly policies.

Enumerator
DEFRAG_POLICY_FIRST
DEFRAG_POLICY_LAST
DEFRAG_POLICY_BSD
DEFRAG_POLICY_BSD_RIGHT
DEFRAG_POLICY_LINUX
DEFRAG_POLICY_WINDOWS
DEFRAG_POLICY_SOLARIS
DEFRAG_POLICY_DEFAULT

Definition at line 85 of file defrag.c.

Function Documentation

◆ Defrag()

Packet * Defrag	(	ThreadVars *	tv,
		DecodeThreadVars *	dtv,
		Packet *	p
	)

Entry point for IPv4 and IPv6 fragments.

Parameters

tv	ThreadVars for the calling decoder.
p	The packet fragment.

Return values

A	new Packet resembling the re-assembled packet if the most recent fragment allowed the packet to be re-assembled, otherwise NULL is returned.

Definition at line 1063 of file defrag.c.

References af, DecodeThreadVars_::counter_defrag_ipv4_fragments, DecodeThreadVars_::counter_defrag_ipv6_fragments, DecodeThreadVars_::counter_defrag_max_hit, DefragTrackerRelease(), dtv, IPV4_GET_RAW_FLAG_MF, IPV4_GET_RAW_FRAGOFFSET, IPV6_EXTHDR_GET_FH_FLAG, IPV6_EXTHDR_GET_FH_OFFSET, StatsIncr(), and tv.

Referenced by DecodeIPV4(), and DecodeIPV6().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DefragDestroy()

void DefragDestroy ( void )

Definition at line 1129 of file defrag.c.

References DefragHashShutdown(), and DefragTreeDestroy().

Referenced by PostRunDeinit().

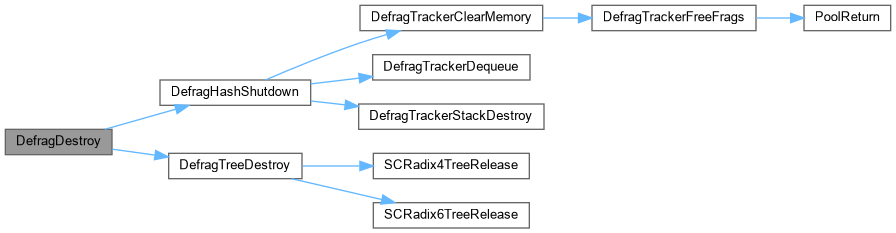

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DefragGetOsPolicy()

uint8_t DefragGetOsPolicy ( Packet * p )

Get the defrag policy based on the destination address of the packet.

Parameters

p	The packet used to get the destination address.

Return values

The	defrag policy to use.

Definition at line 985 of file defrag.c.

References DEFRAG_POLICY_BSD, DEFRAG_POLICY_BSD_RIGHT, DEFRAG_POLICY_FIRST, DEFRAG_POLICY_LAST, DEFRAG_POLICY_LINUX, DEFRAG_POLICY_SOLARIS, DEFRAG_POLICY_WINDOWS, GET_IPV4_DST_ADDR_PTR, GET_IPV6_DST_ADDR, OS_POLICY_BSD, OS_POLICY_BSD_RIGHT, OS_POLICY_FIRST, OS_POLICY_HPUX10, OS_POLICY_HPUX11, OS_POLICY_IRIX, OS_POLICY_LAST, OS_POLICY_LINUX, OS_POLICY_MACOS, OS_POLICY_OLD_LINUX, OS_POLICY_OLD_SOLARIS, OS_POLICY_SOLARIS, OS_POLICY_VISTA, OS_POLICY_WINDOWS, OS_POLICY_WINDOWS2K3, SCHInfoGetIPv4HostOSFlavour(), and SCHInfoGetIPv6HostOSFlavour().

Here is the call graph for this function:

◆ DefragInit()

void DefragInit ( void )

Definition at line 1109 of file defrag.c.

References DEFAULT_DEFRAG_HASH_SIZE, DefragInitConfig(), DefragPolicyLoadFromConfig(), DefragSetDefaultTimeout(), FatalError, SCConfGetInt(), and DefragContext_::timeout.

Referenced by PreRunInit().

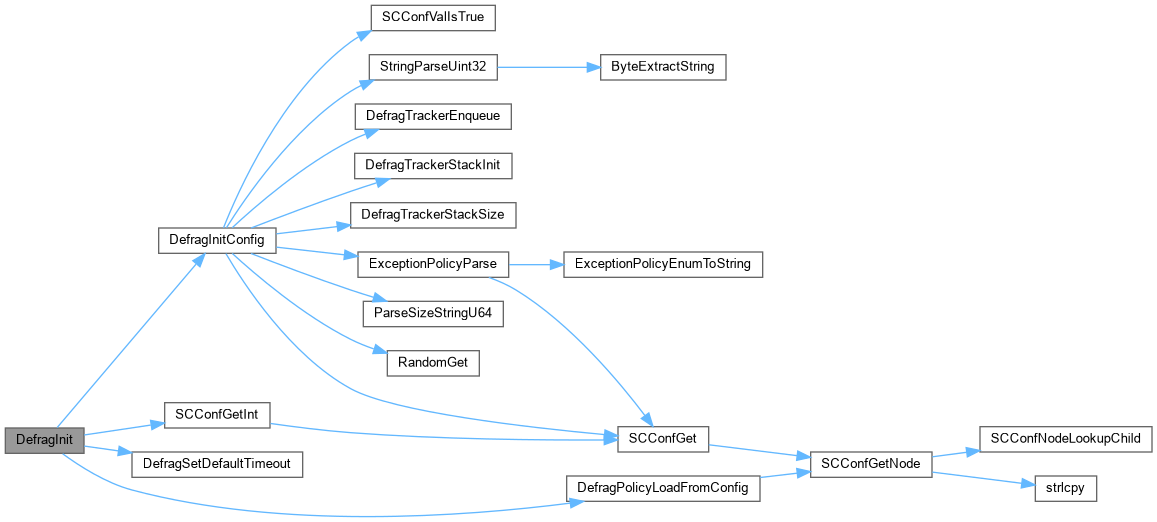

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DefragRbFragCompare()

int DefragRbFragCompare	(	struct Frag_ *	a,
		struct Frag_ *	b
	)

The RB_TREE compare function for fragments.

When it comes to adding fragments, we want subsequent ones with the same offset to be treated as greater than, so we don't have an equal return value here.

Definition at line 537 of file defrag.c.

References Frag_::offset.

◆ DefragRegisterTests()

void DefragRegisterTests ( void )

Definition at line 3111 of file defrag.c.

References UtRegisterTest().

Here is the call graph for this function:

◆ DefragTrackerFreeFrags()

void DefragTrackerFreeFrags ( DefragTracker * tracker )

Free all frags associated with a tracker.

Definition at line 132 of file defrag.c.

References DefragContext_::frag_pool, DefragContext_::frag_pool_lock, DefragTracker_::fragment_tree, PoolReturn(), RB_FOREACH_SAFE, RB_REMOVE, SCMutexLock, and SCMutexUnlock.

Referenced by DefragTrackerClearMemory().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RB_GENERATE()

RB_GENERATE	(	IP_FRAGMENTS	,
		Frag_	,
		rb	,
		DefragRbFragCompare
	)

Variable Documentation

◆ test_dtv

DecodeThreadVars test_dtv = { 0 }

Definition at line 1144 of file defrag.c.

◆ test_tv

ThreadVars test_tv = { 0 }

Definition at line 1143 of file defrag.c.
