stream-tcp.c File Reference

#include "suricata-common.h"
#include "suricata.h"
#include "packet.h"
#include "decode.h"
#include "detect.h"
#include "flow.h"
#include "flow-util.h"
#include "conf.h"
#include "conf-yaml-loader.h"
#include "threads.h"
#include "threadvars.h"
#include "tm-threads.h"
#include "util-pool.h"
#include "util-pool-thread.h"
#include "util-checksum.h"
#include "util-unittest.h"
#include "util-print.h"
#include "util-debug.h"
#include "util-device-private.h"
#include "stream-tcp-private.h"
#include "stream-tcp.h"
#include "stream-tcp-cache.h"
#include "stream-tcp-inline.h"
#include "stream-tcp-reassemble.h"
#include "stream-tcp-sack.h"
#include "stream-tcp-util.h"
#include "stream.h"
#include "pkt-var.h"
#include "host.h"
#include "app-layer.h"
#include "app-layer-parser.h"
#include "app-layer-protos.h"
#include "app-layer-htp-mem.h"
#include "util-host-os-info.h"
#include "util-privs.h"
#include "util-profiling.h"
#include "util-misc.h"
#include "util-validate.h"
#include "util-runmodes.h"
#include "util-random.h"
#include "util-exception-policy.h"
#include "util-time.h"
#include "source-pcap-file.h"
#include "action-globals.h"
#include "tests/stream-tcp.c"

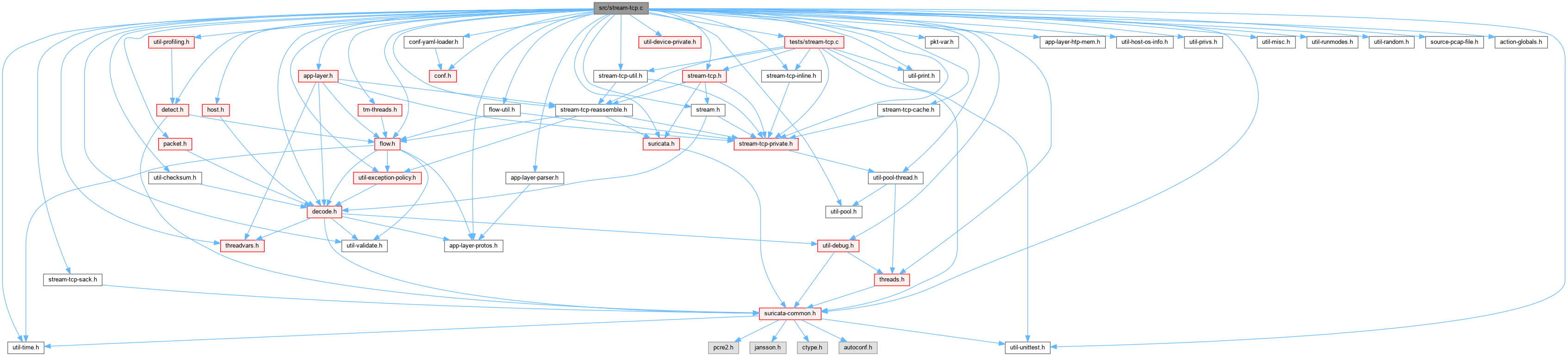

Include dependency graph for stream-tcp.c:

Go to the source code of this file.

Macros
#define	STREAMTCP_DEFAULT_PREALLOC   2048
#define	STREAMTCP_DEFAULT_MEMCAP   (64 * 1024 * 1024) /* 64mb */
#define	STREAMTCP_DEFAULT_REASSEMBLY_MEMCAP   (256 * 1024 * 1024) /* 256mb */
#define	STREAMTCP_DEFAULT_TOSERVER_CHUNK_SIZE   2560
#define	STREAMTCP_DEFAULT_TOCLIENT_CHUNK_SIZE   2560
#define	STREAMTCP_DEFAULT_MAX_SYN_QUEUED   10
#define	STREAMTCP_DEFAULT_MAX_SYNACK_QUEUED   5
#define	StreamTcpUpdateLastAck(ssn, stream, ack)
	macro to update last_ack only if the new value is higher
#define	StreamTcpAsyncLastAckUpdate(ssn, stream)
#define	StreamTcpUpdateNextSeq(ssn, stream, seq)
#define	StreamTcpUpdateNextWin(ssn, stream, win)
	macro to update next_win only if the new value is higher

Functions

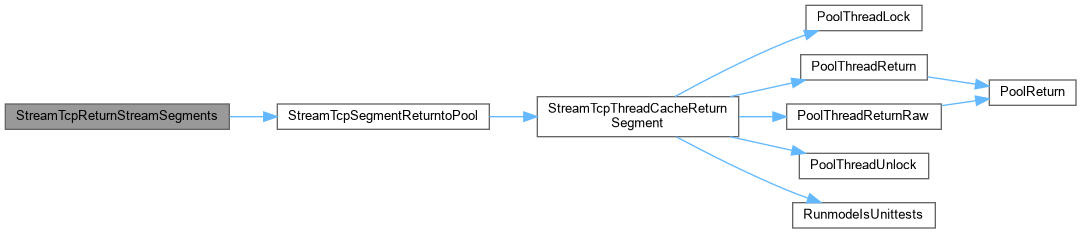

void	StreamTcpReturnStreamSegments (TcpStream *)
	return all segments in this stream into the pool(s)

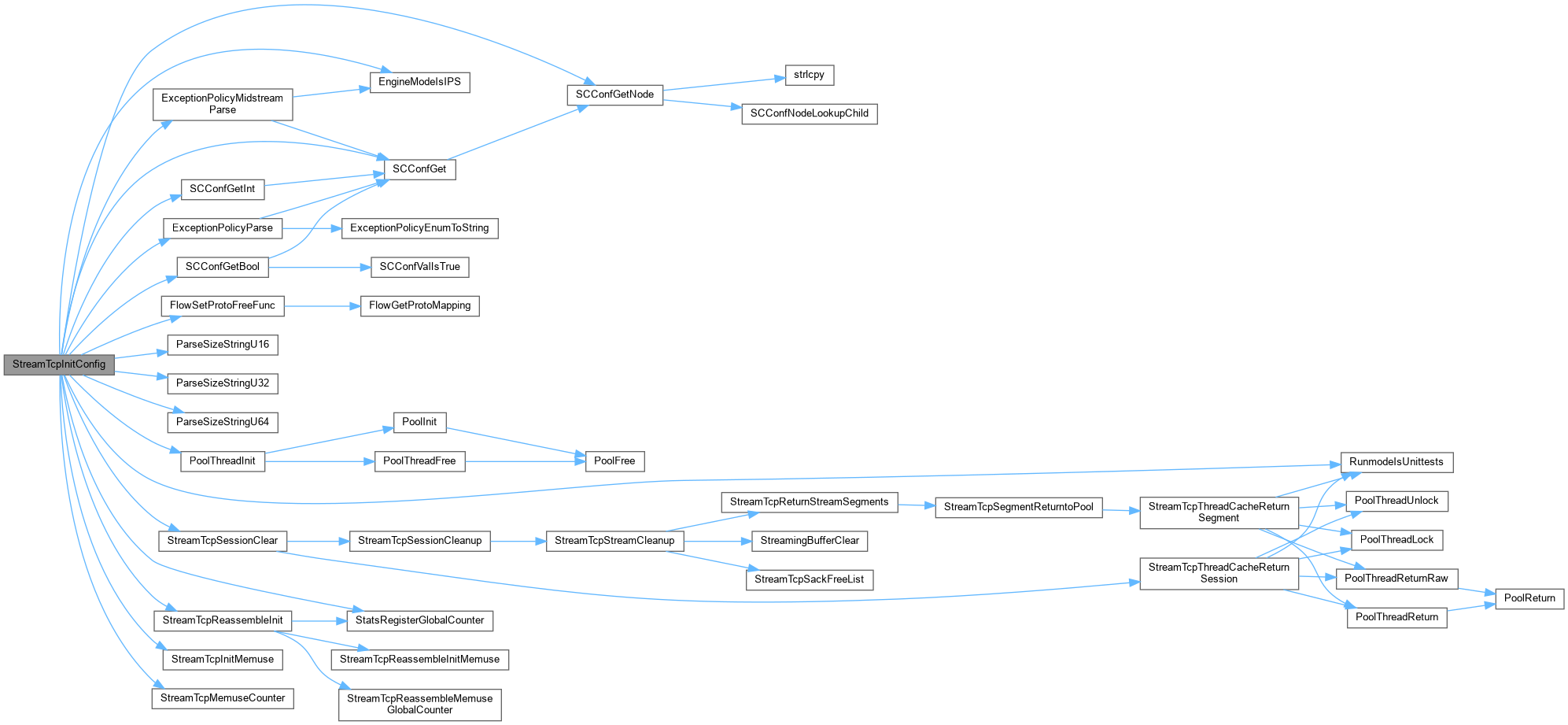

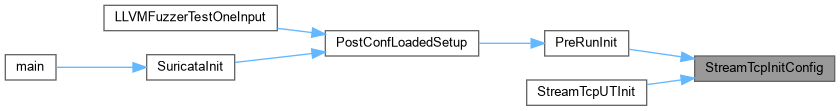

void	StreamTcpInitConfig (bool quiet)
	To initialize the stream global configuration data.
int	StreamTcpGetFlowState (void *)

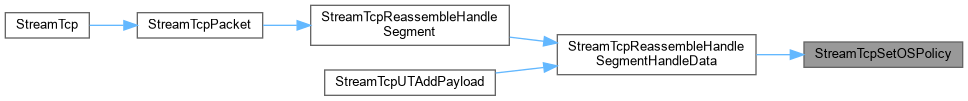

void	StreamTcpSetOSPolicy (TcpStream *stream, Packet *p)
	Function to set the OS policy for the given stream based on the destination of the received packet.

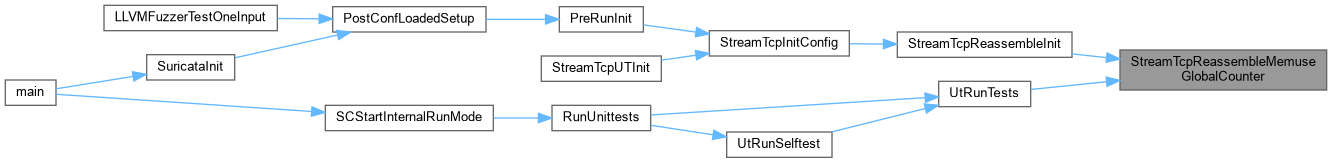

uint64_t	StreamTcpReassembleMemuseGlobalCounter (void)
	SC_ATOMIC_DECLARE (uint64_t, st_memuse)

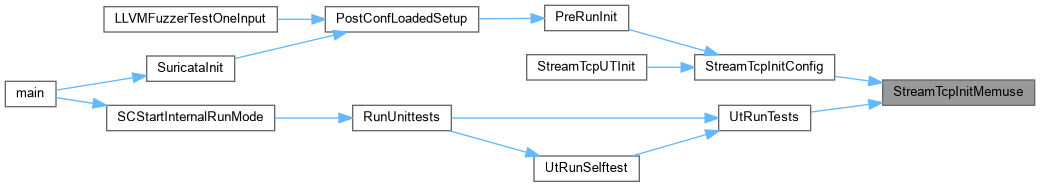

void	StreamTcpInitMemuse (void)
void	StreamTcpIncrMemuse (uint64_t size)
void	StreamTcpDecrMemuse (uint64_t size)
uint64_t	StreamTcpMemuseCounter (void)
int	StreamTcpCheckMemcap (uint64_t size)
	Check if alloc'ing "size" would mean we're over memcap.
int	StreamTcpSetMemcap (uint64_t size)
	Update memcap value.
uint64_t	StreamTcpGetMemcap (void)
	Return memcap value.

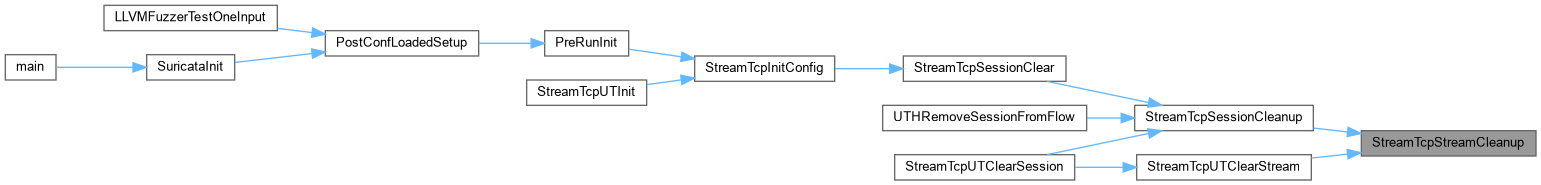

void	StreamTcpStreamCleanup (TcpStream *stream)

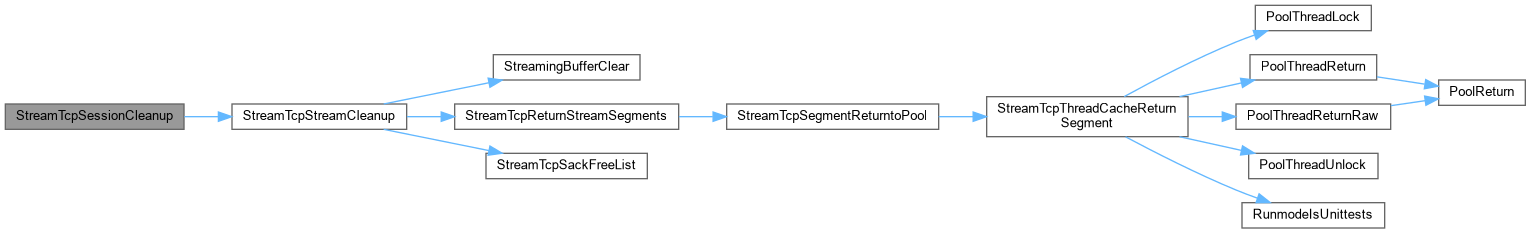

void	StreamTcpSessionCleanup (TcpSession *ssn)
	Session cleanup function. Does not free the ssn.

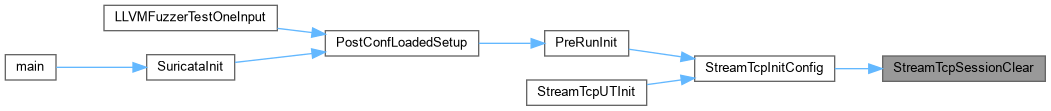

void	StreamTcpSessionClear (void *ssnptr)
	Function to return the stream back to the pool. It returns the segments in the stream to the segment pool.

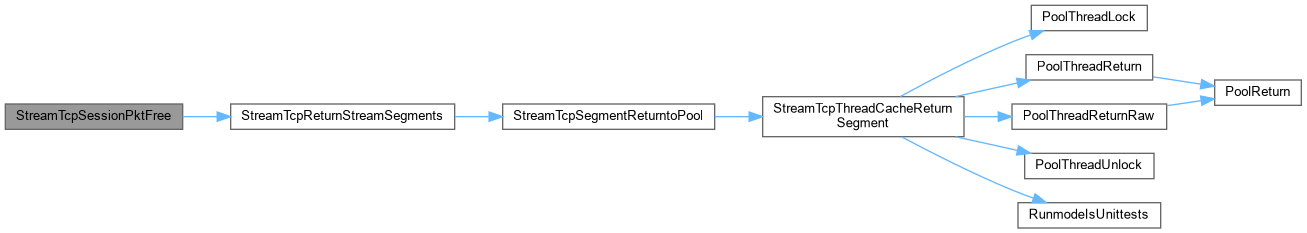

void	StreamTcpSessionPktFree (Packet *p)
	Function to return the stream segments back to the pool.
void	StreamTcpFreeConfig (bool quiet)
enum ExceptionPolicy	StreamTcpSsnMemcapGetExceptionPolicy (void)
enum ExceptionPolicy	StreamTcpReassemblyMemcapGetExceptionPolicy (void)
enum ExceptionPolicy	StreamMidstreamGetExceptionPolicy (void)

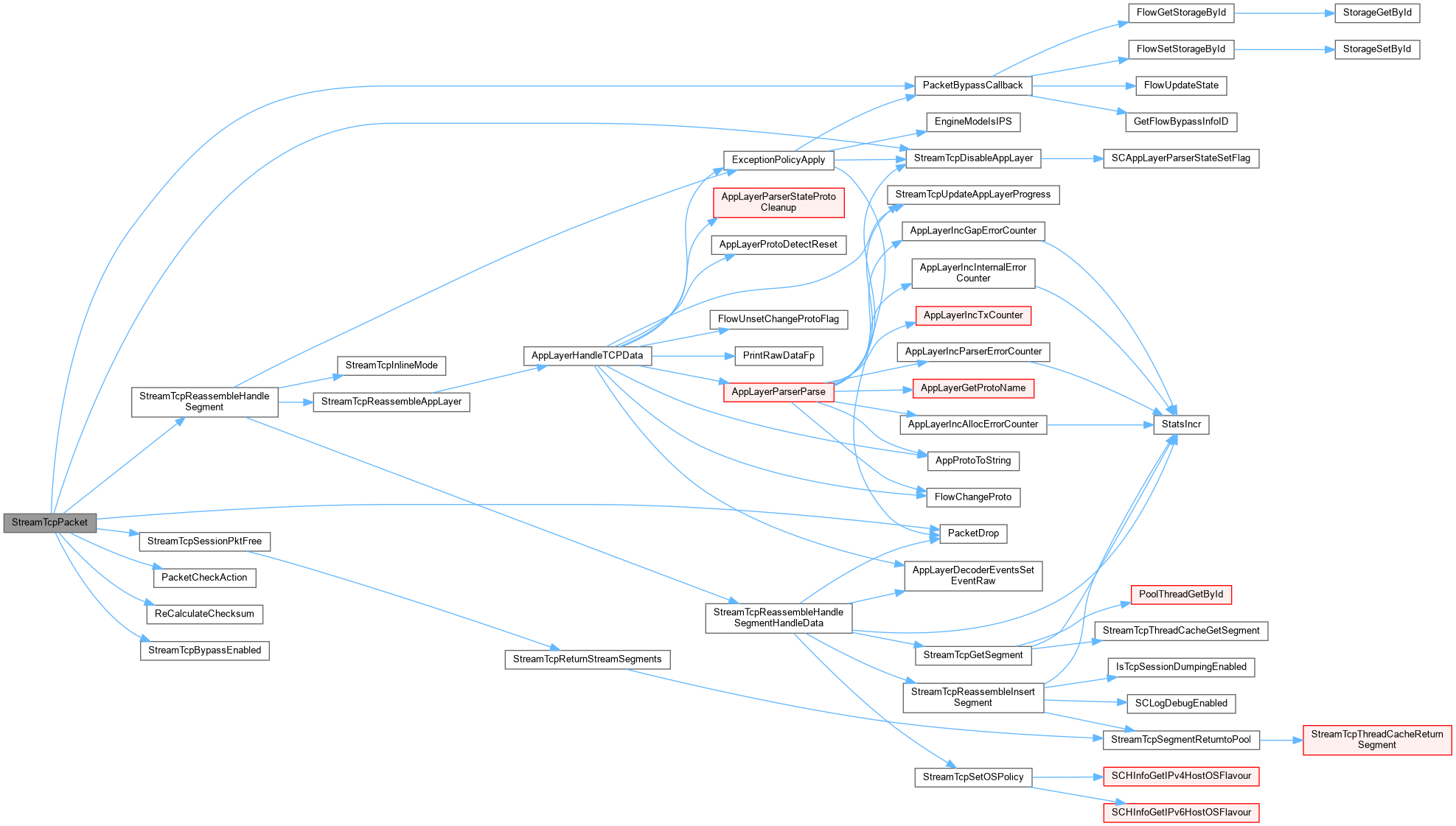

int	StreamTcpPacket (ThreadVars *tv, Packet *p, StreamTcpThread *stt, PacketQueueNoLock *pq)
bool	TcpSessionPacketSsnReuse (const Packet *p, const Flow *f, const void *tcp_ssn)
TmEcode	StreamTcp (ThreadVars *tv, Packet *p, void *data, PacketQueueNoLock *pq)
TmEcode	StreamTcpThreadInit (ThreadVars *tv, void *initdata, void **data)

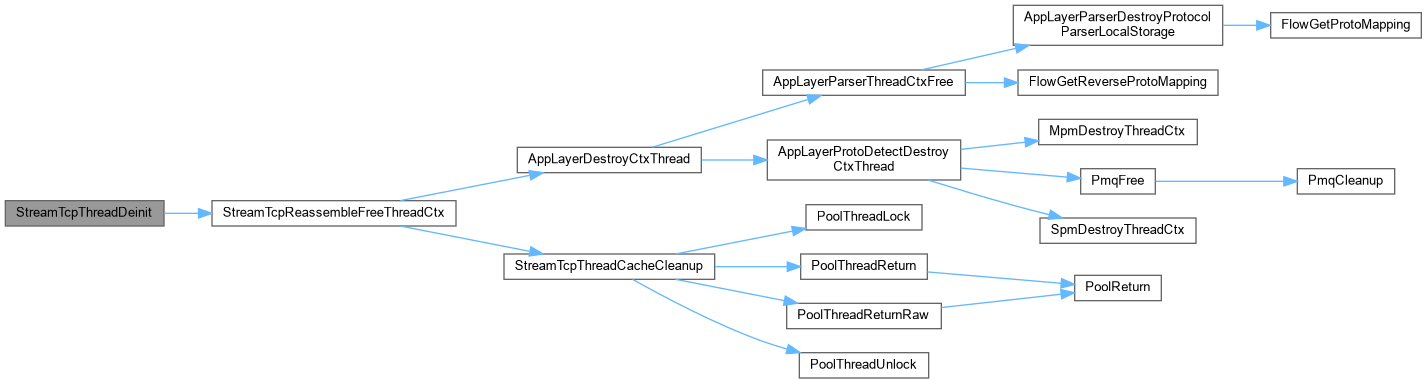

TmEcode	StreamTcpThreadDeinit (ThreadVars *tv, void *data)

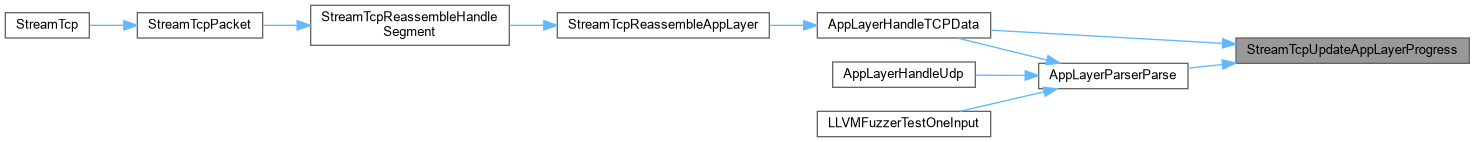

void	StreamTcpUpdateAppLayerProgress (TcpSession *ssn, char direction, const uint32_t progress)
	update reassembly progress

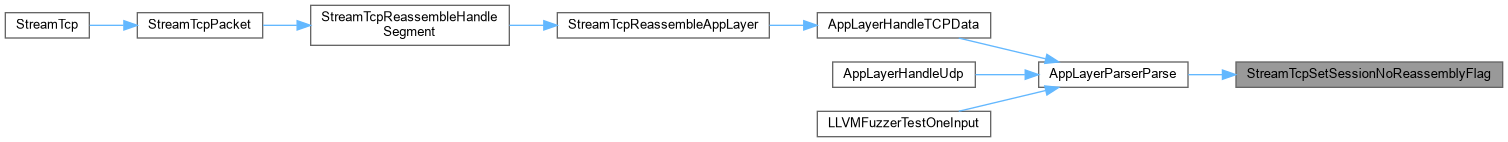

void	StreamTcpSetSessionNoReassemblyFlag (TcpSession *ssn, char direction)
	disable reassembly
void	StreamTcpSetDisableRawReassemblyFlag (TcpSession *ssn, char direction)
	Set the No reassembly flag for the given direction in given TCP session.
void	StreamTcpSetSessionBypassFlag (TcpSession *ssn)
	enable bypass
void	StreamTcpDetectLogFlush (ThreadVars *tv, StreamTcpThread *stt, Flow *f, Packet *p, PacketQueueNoLock *pq)
	create packets in both directions to flush out logging and detection before switching protocols. In IDS mode, create first in packet dir, 2nd in opposing In IPS mode, do the reverse. Flag TCP engine that data needs to be inspected regardless of how far we are wrt inspect limits.
int	StreamTcpSegmentForEach (const Packet *p, uint8_t flag, StreamSegmentCallback CallbackFunc, void *data)
int	StreamTcpSegmentForSession (const Packet *p, uint8_t flag, StreamSegmentCallback CallbackFunc, void *data)
	Run callback function on each TCP segment in both directions of a session.
int	StreamTcpBypassEnabled (void)

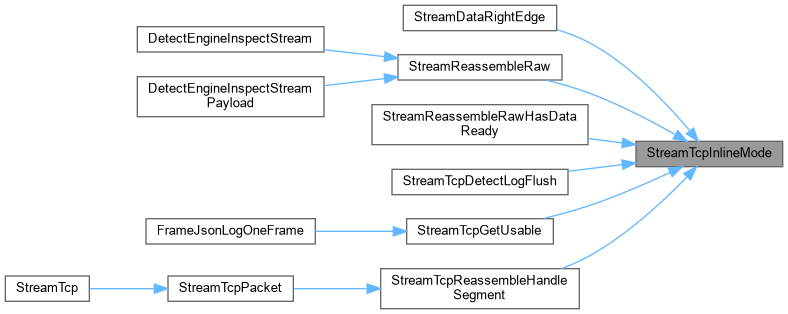

bool	StreamTcpInlineMode (void)
	See if stream engine is operating in inline mode.
void	TcpSessionSetReassemblyDepth (TcpSession *ssn, uint32_t size)
const char *	StreamTcpStateAsString (const enum TcpState state)
const char *	StreamTcpSsnStateAsString (const TcpSession *ssn)

Variables
ExceptionPolicyStatsSetts	stream_memcap_eps_stats
ExceptionPolicyStatsSetts	stream_reassembly_memcap_eps_stats
ExceptionPolicyStatsSetts	stream_midstream_enabled_eps_stats
ExceptionPolicyStatsSetts	stream_midstream_disabled_eps_stats
thread_local uint64_t	t_pcapcnt
int	g_detect_disabled
PoolThread *	ssn_pool = NULL
TcpStreamCnf	stream_config

Detailed Description

Author

Victor Julien victo.nosp@m.r@in.nosp@m.linia.nosp@m.c.ne.nosp@m.t

Gurvinder Singh gurvi.nosp@m.nder.nosp@m.singh.nosp@m.dahi.nosp@m.ya@gm.nosp@m.ail..nosp@m.com

TCP stream tracking and reassembly engine.

Todo:

• 4WHS: what if after the 2nd SYN we turn out to be normal 3WHS anyway?

Definition in file stream-tcp.c.

Macro Definition Documentation

STREAMTCP_DEFAULT_MAX_SYN_QUEUED

#define STREAMTCP_DEFAULT_MAX_SYN_QUEUED   10

Definition at line 90 of file stream-tcp.c.

STREAMTCP_DEFAULT_MAX_SYNACK_QUEUED

#define STREAMTCP_DEFAULT_MAX_SYNACK_QUEUED   5

Definition at line 91 of file stream-tcp.c.

STREAMTCP_DEFAULT_MEMCAP

#define STREAMTCP_DEFAULT_MEMCAP   (64 * 1024 * 1024) /* 64mb */

Definition at line 86 of file stream-tcp.c.

STREAMTCP_DEFAULT_PREALLOC

#define STREAMTCP_DEFAULT_PREALLOC   2048

Definition at line 85 of file stream-tcp.c.

STREAMTCP_DEFAULT_REASSEMBLY_MEMCAP

#define STREAMTCP_DEFAULT_REASSEMBLY_MEMCAP   (256 * 1024 * 1024) /* 256mb */

Definition at line 87 of file stream-tcp.c.

STREAMTCP_DEFAULT_TOCLIENT_CHUNK_SIZE

#define STREAMTCP_DEFAULT_TOCLIENT_CHUNK_SIZE   2560

Definition at line 89 of file stream-tcp.c.

STREAMTCP_DEFAULT_TOSERVER_CHUNK_SIZE

#define STREAMTCP_DEFAULT_TOSERVER_CHUNK_SIZE   2560

Definition at line 88 of file stream-tcp.c.

StreamTcpAsyncLastAckUpdate

#define StreamTcpAsyncLastAckUpdate	(		ssn,
			stream
	)

Value:

    {                              \
    if ((ssn)->flags & STREAMTCP_FLAG_ASYNC) {                                  \
        if (SEQ_GT((stream)->next_seq, (stream)->last_ack)) {                   \
            uint32_t ack_diff = (stream)->next_seq - (stream)->last_ack;        \
            (stream)->last_ack += ack_diff;                                     \
            SCLogDebug("ssn %p: ASYNC last_ack set to %"PRIu32", moved %u forward",     \
                    (ssn), (stream)->next_seq, ack_diff);                               \
        }                                                                       \
    }                                                                           \
}

Definition at line 1077 of file stream-tcp.c.

StreamTcpUpdateLastAck

#define StreamTcpUpdateLastAck	(		ssn,
			stream,
			ack
	)

Value:

    { \
    if (SEQ_GT((ack), (stream)->last_ack)) \
    { \
        SCLogDebug("ssn %p: last_ack set to %"PRIu32", moved %u forward", (ssn), (ack), (ack) - (stream)->last_ack); \
        if ((SEQ_LEQ((stream)->last_ack, (stream)->next_seq) && SEQ_GT((ack),(stream)->next_seq))) { \
            SCLogDebug("last_ack just passed next_seq: %u (was %u) > %u", (ack), (stream)->last_ack, (stream)->next_seq); \
        } else { \
            SCLogDebug("next_seq (%u) <> last_ack now %d", (stream)->next_seq, (int)(stream)->next_seq - (ack)); \
        }\
        (stream)->last_ack = (ack); \
        StreamTcpSackPruneList((stream)); \
    } else { \
        SCLogDebug("ssn %p: no update: ack %u, last_ack %"PRIu32", next_seq %u (state %u)", \
                    (ssn), (ack), (stream)->last_ack, (stream)->next_seq, (ssn)->state); \
    }\
}

macro to update last_ack only if the new value is higher

Parameters

ssn	session
stream	stream to update
ack	ACK value to test and set

Definition at line 1060 of file stream-tcp.c.

StreamTcpUpdateNextSeq

#define StreamTcpUpdateNextSeq	(		ssn,
			stream,
			seq
	)

Value:

    {                      \
    (stream)->next_seq = seq;                                           \
    SCLogDebug("ssn %p: next_seq %" PRIu32, (ssn), (stream)->next_seq); \
    StreamTcpAsyncLastAckUpdate((ssn), (stream));                       \
}

Definition at line 1088 of file stream-tcp.c.

StreamTcpUpdateNextWin

#define StreamTcpUpdateNextWin	(		ssn,
			stream,
			win
	)

Value:

    { \
    uint32_t sacked_size__ = StreamTcpSackedSize((stream)); \
    if (SEQ_GT(((win) + sacked_size__), (stream)->next_win)) { \
        (stream)->next_win = ((win) + sacked_size__); \
        SCLogDebug("ssn %p: next_win set to %"PRIu32, (ssn), (stream)->next_win); \
    } \
}

macro to update next_win only if the new value is higher

Parameters

ssn	session
stream	stream to update
win	window value to test and set

Definition at line 1101 of file stream-tcp.c.

Function Documentation

SC_ATOMIC_DECLARE()

SC_ATOMIC_DECLARE	(	uint64_t	,
		st_memuse
	)

StreamMidstreamGetExceptionPolicy()

enum ExceptionPolicy StreamMidstreamGetExceptionPolicy

(

void

)

Definition at line 909 of file stream-tcp.c.

References TcpStreamCnf_::midstream_policy, and stream_config.

Referenced by ExceptionPolicyTargetPolicy().

Here is the caller graph for this function:

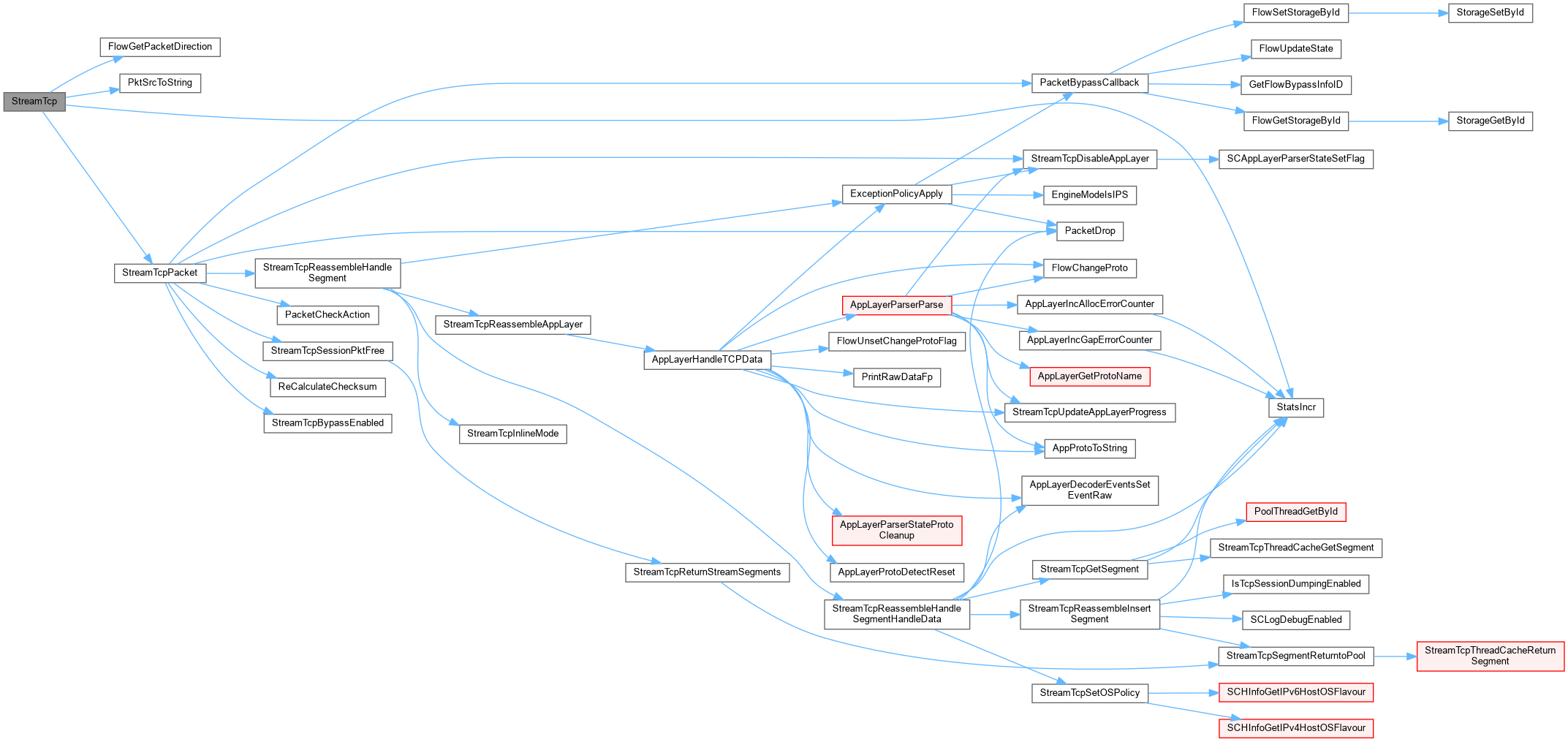

StreamTcp()

TmEcode StreamTcp	(	ThreadVars *	tv,
		Packet *	p,
		void *	data,
		PacketQueueNoLock *	pq
	)

Definition at line 5943 of file stream-tcp.c.

References TcpReassemblyThreadCtx_::app_tctx, AppLayerProfilingReset, StreamTcpThread_::counter_tcp_invalid_checksum, DEBUG_VALIDATE_BUG_ON, Packet_::flags, TcpStreamCnf_::flags, Packet_::flow, FlowGetPacketDirection(), Packet_::pcap_cnt, PKT_PSEUDO_STREAM_END, Packet_::pkt_src, PktSrcToString(), StreamTcpThread_::ra_ctx, SCLogDebug, StatsIncr(), stream_config, STREAMTCP_INIT_FLAG_CHECKSUM_VALIDATION, StreamTcpPacket(), t_pcapcnt, TM_ECODE_OK, TOSERVER, tv, and unlikely.

Here is the call graph for this function:

StreamTcpBypassEnabled()

int StreamTcpBypassEnabled

(

void

)

Definition at line 7088 of file stream-tcp.c.

References TcpStreamCnf_::flags, stream_config, and STREAMTCP_INIT_FLAG_BYPASS.

Referenced by StreamTcpPacket().

Here is the caller graph for this function:

StreamTcpCheckMemcap()

int StreamTcpCheckMemcap

(

uint64_t

size

)

Check if alloc'ing "size" would mean we're over memcap.

Return values

1	if in bounds
0	if not in bounds

Definition at line 266 of file stream-tcp.c.

References SC_ATOMIC_GET, and stream_config.

StreamTcpDecrMemuse()

void StreamTcpDecrMemuse

(

uint64_t

size

)

Definition at line 234 of file stream-tcp.c.

References BUG_ON, RunmodeIsUnittests(), SC_ATOMIC_GET, SC_ATOMIC_SUB, SCLogDebug, and StreamTcpMemuseCounter().

Here is the call graph for this function:

StreamTcpDetectLogFlush()

void StreamTcpDetectLogFlush	(	ThreadVars *	tv,
		StreamTcpThread *	stt,
		Flow *	f,
		Packet *	p,
		PacketQueueNoLock *	pq
	)

create packets in both directions to flush out logging and detection before switching protocols. In IDS mode, create first in packet dir, 2nd in opposing In IPS mode, do the reverse. Flag TCP engine that data needs to be inspected regardless of how far we are wrt inspect limits.

Definition at line 6922 of file stream-tcp.c.

References TcpSession_::client, TcpStream_::flags, PKT_IS_TOSERVER, Flow_::protoctx, TcpSession_::server, STREAMTCP_STREAM_FLAG_TRIGGER_RAW, StreamTcpInlineMode(), ts, and tv.

Here is the call graph for this function:

StreamTcpFreeConfig()

void StreamTcpFreeConfig

(

bool

quiet

)

Definition at line 859 of file stream-tcp.c.

References PoolThreadFree(), SCLogDebug, SCMutexDestroy, SCMutexLock, SCMutexUnlock, ssn_pool, and StreamTcpReassembleFree().

Referenced by PostRunDeinit(), and StreamTcpUTDeinit().

Here is the call graph for this function:

Here is the caller graph for this function:

StreamTcpGetFlowState()

int StreamTcpGetFlowState

(

void *

)

StreamTcpGetMemcap()

uint64_t StreamTcpGetMemcap

(

void

)

Return memcap value.

Parameters

memcap

memcap value

Definition at line 294 of file stream-tcp.c.

References SC_ATOMIC_GET, and stream_config.

StreamTcpIncrMemuse()

void StreamTcpIncrMemuse

(

uint64_t

size

)

Definition at line 228 of file stream-tcp.c.

References SC_ATOMIC_ADD, SCLogDebug, and StreamTcpMemuseCounter().

Here is the call graph for this function:

StreamTcpInitConfig()

void StreamTcpInitConfig

(

bool

quiet

)

To initialize the stream global configuration data.

Parameters

quiet

It tells the mode of operation, if it is true nothing will be get printed.

Definition at line 488 of file stream-tcp.c.

References TcpStreamCnf_::async_oneside, EngineModeIsIPS(), ExceptionPolicyMidstreamParse(), ExceptionPolicyParse(), FatalError, TcpStreamCnf_::flags, FlowSetProtoFreeFunc(), TcpStreamCnf_::liberal_timestamps, TcpStreamCnf_::max_syn_queued, TcpStreamCnf_::max_synack_queued, TcpStreamCnf_::midstream, TcpStreamCnf_::midstream_policy, ParseSizeStringU16(), ParseSizeStringU32(), ParseSizeStringU64(), PoolThreadInit(), TcpStreamCnf_::prealloc_sessions, TcpStreamCnf_::reassembly_depth, TcpStreamCnf_::reassembly_memcap_policy, TcpStreamCnf_::reassembly_toclient_chunk_size, TcpStreamCnf_::reassembly_toserver_chunk_size, RunmodeIsUnittests(), SC_ATOMIC_GET, SC_ATOMIC_INIT, SC_ATOMIC_SET, SCConfGet(), SCConfGetBool(), SCConfGetInt(), SCConfGetNode(), SCLogConfig, SCLogDebug, SCLogError, SCLogWarning, SCMutexLock, SCMutexUnlock, TcpStreamCnf_::ssn_memcap_policy, ssn_pool, StatsRegisterGlobalCounter(), stream_config, TcpStreamCnf_::stream_init_flags, STREAMTCP_DEFAULT_MAX_SYN_QUEUED, STREAMTCP_DEFAULT_MAX_SYNACK_QUEUED, STREAMTCP_DEFAULT_MEMCAP, STREAMTCP_DEFAULT_PREALLOC, STREAMTCP_DEFAULT_REASSEMBLY_MEMCAP, STREAMTCP_DEFAULT_TOCLIENT_CHUNK_SIZE, STREAMTCP_DEFAULT_TOSERVER_CHUNK_SIZE, STREAMTCP_INIT_FLAG_BYPASS, STREAMTCP_INIT_FLAG_CHECKSUM_VALIDATION, STREAMTCP_INIT_FLAG_DROP_INVALID, STREAMTCP_INIT_FLAG_INLINE, STREAMTCP_STREAM_FLAG_DISABLE_RAW, StreamTcpInitMemuse(), StreamTcpMemuseCounter(), StreamTcpReassembleInit(), StreamTcpSessionClear(), TCP_STREAM_URGENT_DEFAULT, TCP_STREAM_URGENT_DROP, TCP_STREAM_URGENT_GAP, TCP_STREAM_URGENT_INLINE, TCP_STREAM_URGENT_OOB, TcpStreamCnf_::urgent_oob_limit_policy, TcpStreamCnf_::urgent_policy, and WarnInvalidConfEntry.

Referenced by PreRunInit(), and StreamTcpUTInit().

Here is the call graph for this function:

Here is the caller graph for this function:

StreamTcpInitMemuse()

void StreamTcpInitMemuse

(

void

)

Definition at line 223 of file stream-tcp.c.

References SC_ATOMIC_INIT.

Referenced by StreamTcpInitConfig(), and UtRunTests().

Here is the caller graph for this function:

StreamTcpInlineMode()

bool StreamTcpInlineMode

(

void

)

See if stream engine is operating in inline mode.

Return values

0	no
1	yes

Definition at line 7099 of file stream-tcp.c.

References TcpStreamCnf_::flags, stream_config, and STREAMTCP_INIT_FLAG_INLINE.

Referenced by StreamDataRightEdge(), StreamReassembleRaw(), StreamReassembleRawHasDataReady(), StreamTcpDetectLogFlush(), StreamTcpGetUsable(), and StreamTcpReassembleHandleSegment().

Here is the caller graph for this function:

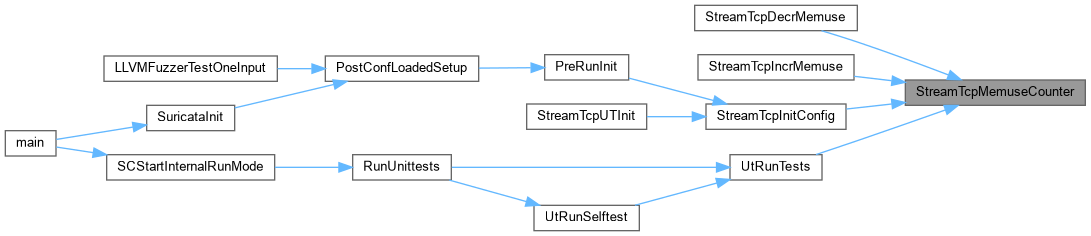

StreamTcpMemuseCounter()

uint64_t StreamTcpMemuseCounter

(

void

)

Definition at line 254 of file stream-tcp.c.

References SC_ATOMIC_GET.

Referenced by StreamTcpDecrMemuse(), StreamTcpIncrMemuse(), StreamTcpInitConfig(), and UtRunTests().

Here is the caller graph for this function:

StreamTcpPacket()

int StreamTcpPacket	(	ThreadVars *	tv,
		Packet *	p,
		StreamTcpThread *	stt,
		PacketQueueNoLock *	pq
	)

Definition at line 5542 of file stream-tcp.c.

References ACTION_DROP, Flow_::alproto, TcpSession_::client, DEBUG_ASSERT_FLOW_LOCKED, DEBUG_VALIDATE_BUG_ON, Packet_::flags, Flow_::flags, TcpStream_::flags, TcpSession_::flags, Packet_::flow, FLOW_WRONG_THREAD, g_detect_disabled, PacketBypassCallback(), PacketCheckAction(), PacketDrop(), Packet_::pcap_cnt, PKT_DROP_REASON_STREAM_ERROR, PKT_DROP_REASON_STREAM_URG, PKT_IS_PSEUDOPKT, PKT_IS_TOCLIENT, PKT_IS_TOSERVER, PKT_PSEUDO_STREAM_END, PKT_STREAM_EST, PKT_STREAM_MODIFIED, PKT_STREAM_NO_EVENTS, PKT_STREAM_NOPCAPLOG, Flow_::protoctx, StreamTcpThread_::ra_ctx, ReCalculateChecksum(), SCEnter, SCLogDebug, SCReturnInt, TcpSession_::server, TcpSession_::state, STREAM_PKT_BROKEN_ACK, STREAM_PKT_FLAG_DUP_ACK, STREAM_PKT_FLAG_SET, STREAM_PKT_FLAG_TCP_ZERO_WIN_PROBE_ACK, STREAM_PKT_SPURIOUS_RETRANSMISSION, STREAMTCP_FLAG_ASYNC, STREAMTCP_FLAG_BYPASS, STREAMTCP_STREAM_FLAG_DEPTH_REACHED, STREAMTCP_STREAM_FLAG_NOREASSEMBLY, StreamTcpBypassEnabled(), StreamTcpDisableAppLayer(), StreamTcpReassembleHandleSegment(), StreamTcpSessionPktFree(), StreamTcpSetEvent, TCP_ESTABLISHED, TcpStream_::tcp_flags, TCP_GET_RAW_ACK, TCP_NONE, TcpSession_::tcp_packet_flags, TH_ACK, TCPHdr_::th_flags, TH_URG, and tv.

Referenced by StreamTcp().

Here is the call graph for this function:

Here is the caller graph for this function:

StreamTcpReassembleMemuseGlobalCounter()

uint64_t StreamTcpReassembleMemuseGlobalCounter

(

void

)

Definition at line 150 of file stream-tcp-reassemble.c.

References SC_ATOMIC_GET.

Referenced by StreamTcpReassembleInit(), and UtRunTests().

Here is the caller graph for this function:

StreamTcpReassemblyMemcapGetExceptionPolicy()

enum ExceptionPolicy StreamTcpReassemblyMemcapGetExceptionPolicy

(

void

)

Definition at line 904 of file stream-tcp.c.

References TcpStreamCnf_::reassembly_memcap_policy, and stream_config.

Referenced by ExceptionPolicyTargetPolicy().

Here is the caller graph for this function:

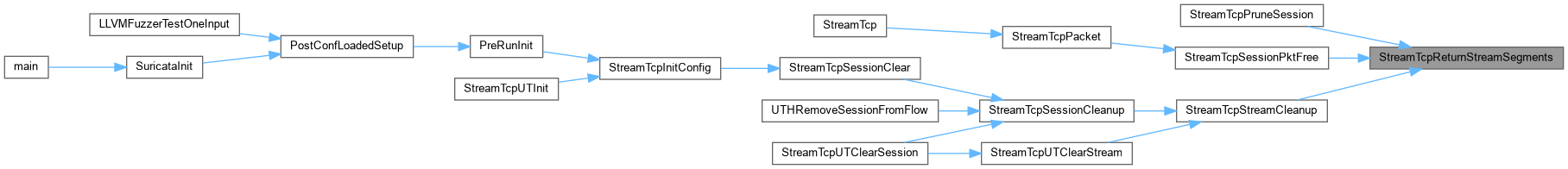

StreamTcpReturnStreamSegments()

void StreamTcpReturnStreamSegments

(

TcpStream *

stream

)

return all segments in this stream into the pool(s)

Parameters

stream

the stream to cleanup

Definition at line 398 of file stream-tcp-reassemble.c.

References RB_FOREACH_SAFE, RB_REMOVE, TcpStream_::seg_tree, and StreamTcpSegmentReturntoPool().

Referenced by StreamTcpPruneSession(), StreamTcpSessionPktFree(), and StreamTcpStreamCleanup().

Here is the call graph for this function:

Here is the caller graph for this function:

StreamTcpSegmentForEach()

int StreamTcpSegmentForEach	(	const Packet *	p,
		uint8_t	flag,
		StreamSegmentCallback	CallbackFunc,
		void *	data
	)

Definition at line 6946 of file stream-tcp.c.

References TcpSession_::client, cnt, TcpStreamCnf_::flags, Packet_::flow, TcpStream_::last_ack, PKT_IS_PSEUDOPKT, Flow_::protoctx, RB_FOREACH, TcpStream_::sb, TcpSegment::sbseg, SCLogDebug, TcpStream_::seg_tree, TcpSegment::seq, SEQ_GEQ, TcpSession_::server, stream_config, STREAM_DUMP_TOSERVER, StreamingBufferSegmentGetData(), and STREAMTCP_INIT_FLAG_INLINE.

Referenced by StreamSegmentForEach().

Here is the call graph for this function:

Here is the caller graph for this function:

StreamTcpSegmentForSession()

int StreamTcpSegmentForSession	(	const Packet *	p,
		uint8_t	flag,
		StreamSegmentCallback	CallbackFunc,
		void *	data
	)

Run callback function on each TCP segment in both directions of a session.

Note

when stream engine is running in inline mode all segments are used, in IDS/non-inline mode only ack'd segments are iterated.

Must be called under flow lock.

Returns

-1 in case of error, the number of segment in case of success

Definition at line 7005 of file stream-tcp.c.

References TcpSession_::client, cnt, Packet_::flow, TcpSegment::pcap_hdr_storage, Flow_::protoctx, RB_MIN, TcpStream_::sb, TcpSegment::sbseg, SCLogDebug, SCTIME_CMP_LT, TcpStream_::seg_tree, TcpSession_::server, StreamingBufferSegmentGetData(), and TcpSegmentPcapHdrStorage_::ts.

Referenced by StreamSegmentForSession().

Here is the call graph for this function:

Here is the caller graph for this function:

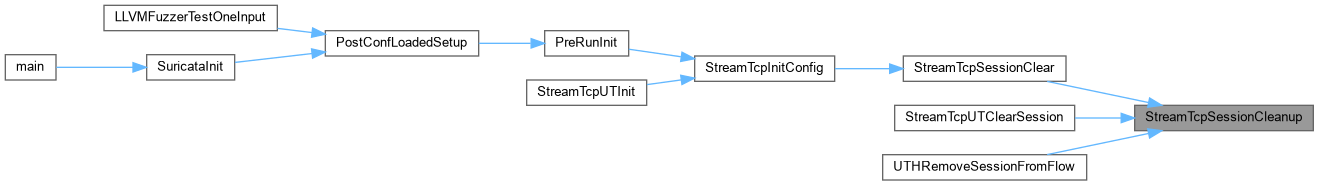

StreamTcpSessionCleanup()

void StreamTcpSessionCleanup

(

TcpSession *

ssn

)

Session cleanup function. Does not free the ssn.

Parameters

ssn	tcp session

Definition at line 327 of file stream-tcp.c.

References TcpSession_::client, SCEnter, SCReturn, TcpSession_::server, and StreamTcpStreamCleanup().

Referenced by StreamTcpSessionClear(), StreamTcpUTClearSession(), and UTHRemoveSessionFromFlow().

Here is the call graph for this function:

Here is the caller graph for this function:

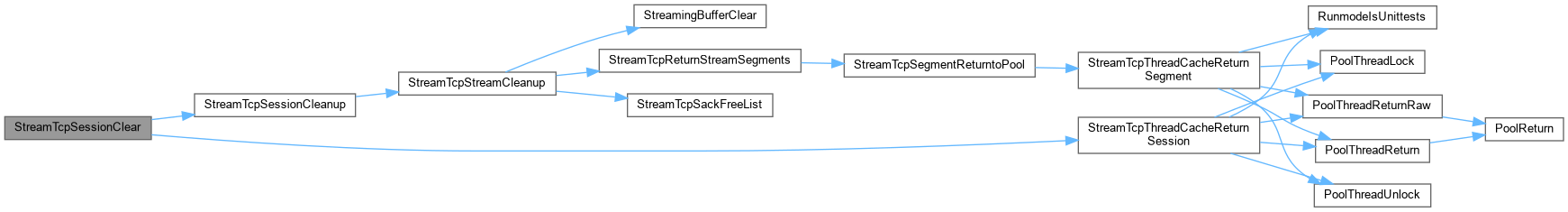

StreamTcpSessionClear()

void StreamTcpSessionClear

(

void *

ssnptr

)

Function to return the stream back to the pool. It returns the segments in the stream to the segment pool.

This function is called when the flow is destroyed, so it should free everything related to the tcp session. So including the app layer data.

Parameters

ssn	Void ptr to the ssn.

Definition at line 351 of file stream-tcp.c.

References pool_id, TcpSession_::pool_id, SCEnter, SCMutexLock, SCMutexUnlock, SCReturn, StreamTcpSessionCleanup(), and StreamTcpThreadCacheReturnSession().

Referenced by StreamTcpInitConfig().

Here is the call graph for this function:

Here is the caller graph for this function:

StreamTcpSessionPktFree()

void StreamTcpSessionPktFree

(

Packet *

p

)

Function to return the stream segments back to the pool.

Parameters

p	Packet used to identify the stream.

Definition at line 380 of file stream-tcp.c.

References TcpSession_::client, Packet_::flow, Flow_::protoctx, SCEnter, SCReturn, TcpSession_::server, and StreamTcpReturnStreamSegments().

Referenced by StreamTcpPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

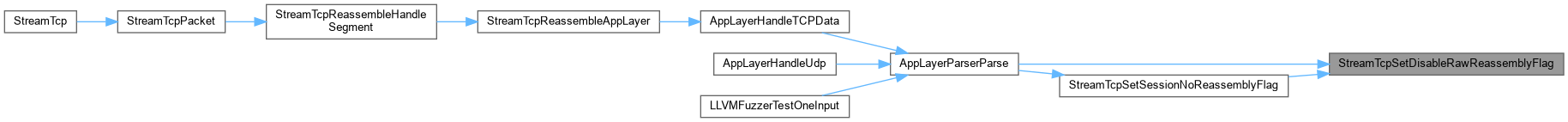

StreamTcpSetDisableRawReassemblyFlag()

void StreamTcpSetDisableRawReassemblyFlag	(	TcpSession *	ssn,
		char	direction
	)

Set the No reassembly flag for the given direction in given TCP session.

Parameters

ssn	TCP Session to set the flag in
direction	direction to set the flag in: 0 toserver, 1 toclient

Definition at line 6706 of file stream-tcp.c.

References TcpSession_::client, TcpStream_::flags, TcpSession_::server, and STREAMTCP_STREAM_FLAG_NEW_RAW_DISABLED.

Referenced by AppLayerParserParse(), and StreamTcpSetSessionNoReassemblyFlag().

Here is the caller graph for this function:

StreamTcpSetMemcap()

int StreamTcpSetMemcap

(

uint64_t

size

)

Update memcap value.

Parameters

size	new memcap value

Definition at line 279 of file stream-tcp.c.

References SC_ATOMIC_GET, SC_ATOMIC_SET, and stream_config.

StreamTcpSetOSPolicy()

void StreamTcpSetOSPolicy	(	TcpStream *	stream,
		Packet *	p
	)

Function to set the OS policy for the given stream based on the destination of the received packet.

Parameters

stream	TcpStream of which os_policy needs to set
p	Packet which is used to set the os policy

Definition at line 1022 of file stream-tcp.c.

References GET_IPV4_DST_ADDR_PTR, GET_IPV6_DST_ADDR, TcpStream_::os_policy, OS_POLICY_BSD, OS_POLICY_BSD_RIGHT, OS_POLICY_DEFAULT, OS_POLICY_OLD_SOLARIS, OS_POLICY_SOLARIS, SCHInfoGetIPv4HostOSFlavour(), SCHInfoGetIPv6HostOSFlavour(), and SCLogDebug.

Referenced by StreamTcpReassembleHandleSegmentHandleData().

Here is the call graph for this function:

Here is the caller graph for this function:

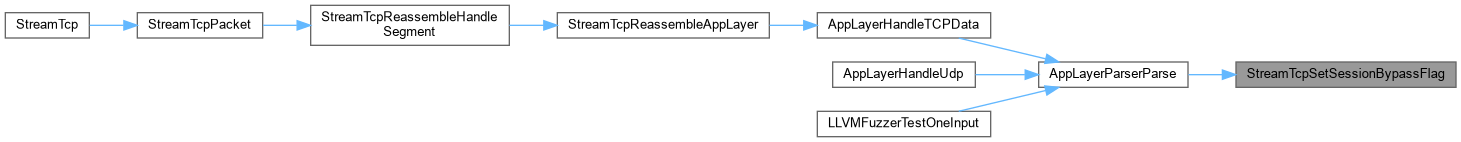

StreamTcpSetSessionBypassFlag()

void StreamTcpSetSessionBypassFlag

(

TcpSession *

ssn

)

enable bypass

Parameters

ssn	TCP Session to set the flag in
direction	direction to set the flag in: 0 toserver, 1 toclient

Definition at line 6717 of file stream-tcp.c.

References TcpSession_::flags, and STREAMTCP_FLAG_BYPASS.

Referenced by AppLayerParserParse().

Here is the caller graph for this function:

StreamTcpSetSessionNoReassemblyFlag()

void StreamTcpSetSessionNoReassemblyFlag	(	TcpSession *	ssn,
		char	direction
	)

disable reassembly

Disable app layer and set raw inspect to no longer accept new data. Stream engine will then fully disable raw after last inspection.

Parameters

ssn	TCP Session to set the flag in
direction	direction to set the flag in: 0 toserver, 1 toclient

Definition at line 6694 of file stream-tcp.c.

References TcpSession_::flags, STREAMTCP_FLAG_APP_LAYER_DISABLED, and StreamTcpSetDisableRawReassemblyFlag().

Referenced by AppLayerParserParse().

Here is the call graph for this function:

Here is the caller graph for this function:

StreamTcpSsnMemcapGetExceptionPolicy()

enum ExceptionPolicy StreamTcpSsnMemcapGetExceptionPolicy

(

void

)

Definition at line 899 of file stream-tcp.c.

References TcpStreamCnf_::ssn_memcap_policy, and stream_config.

Referenced by ExceptionPolicyTargetPolicy().

Here is the caller graph for this function:

StreamTcpSsnStateAsString()

const char * StreamTcpSsnStateAsString

(

const TcpSession *

ssn

)

Definition at line 7153 of file stream-tcp.c.

References TcpSession_::state, and StreamTcpStateAsString().

Here is the call graph for this function:

StreamTcpStateAsString()

const char * StreamTcpStateAsString

(

const enum TcpState

state

)

Definition at line 7112 of file stream-tcp.c.

References TCP_CLOSE_WAIT, TCP_CLOSED, TCP_CLOSING, TCP_ESTABLISHED, TCP_FIN_WAIT1, TCP_FIN_WAIT2, TCP_LAST_ACK, TCP_NONE, TCP_SYN_RECV, TCP_SYN_SENT, and TCP_TIME_WAIT.

Referenced by StreamTcpSsnStateAsString().

Here is the caller graph for this function:

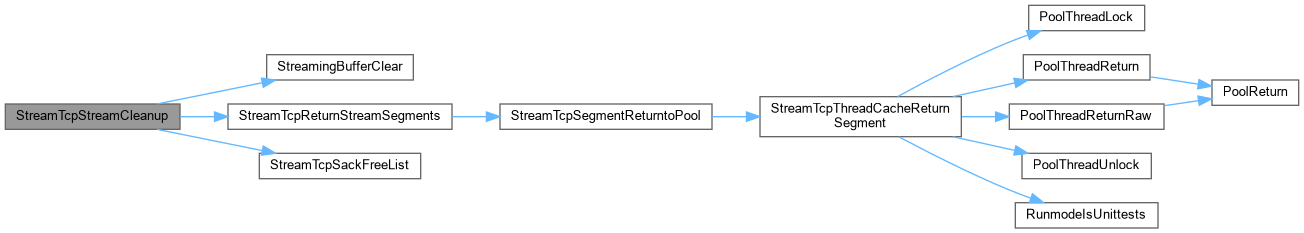

StreamTcpStreamCleanup()

void StreamTcpStreamCleanup

(

TcpStream *

stream

)

Definition at line 300 of file stream-tcp.c.

References TcpStream_::sb, TcpStreamCnf_::sbcnf, stream_config, StreamingBufferClear(), StreamTcpReturnStreamSegments(), and StreamTcpSackFreeList().

Referenced by StreamTcpSessionCleanup(), and StreamTcpUTClearStream().

Here is the call graph for this function:

Here is the caller graph for this function:

StreamTcpThreadDeinit()

TmEcode StreamTcpThreadDeinit	(	ThreadVars *	tv,
		void *	data
	)

Definition at line 6068 of file stream-tcp.c.

References StreamTcpThread_::ra_ctx, SCEnter, SCFree, SCReturnInt, StreamTcpReassembleFreeThreadCtx(), and TM_ECODE_OK.

Here is the call graph for this function:

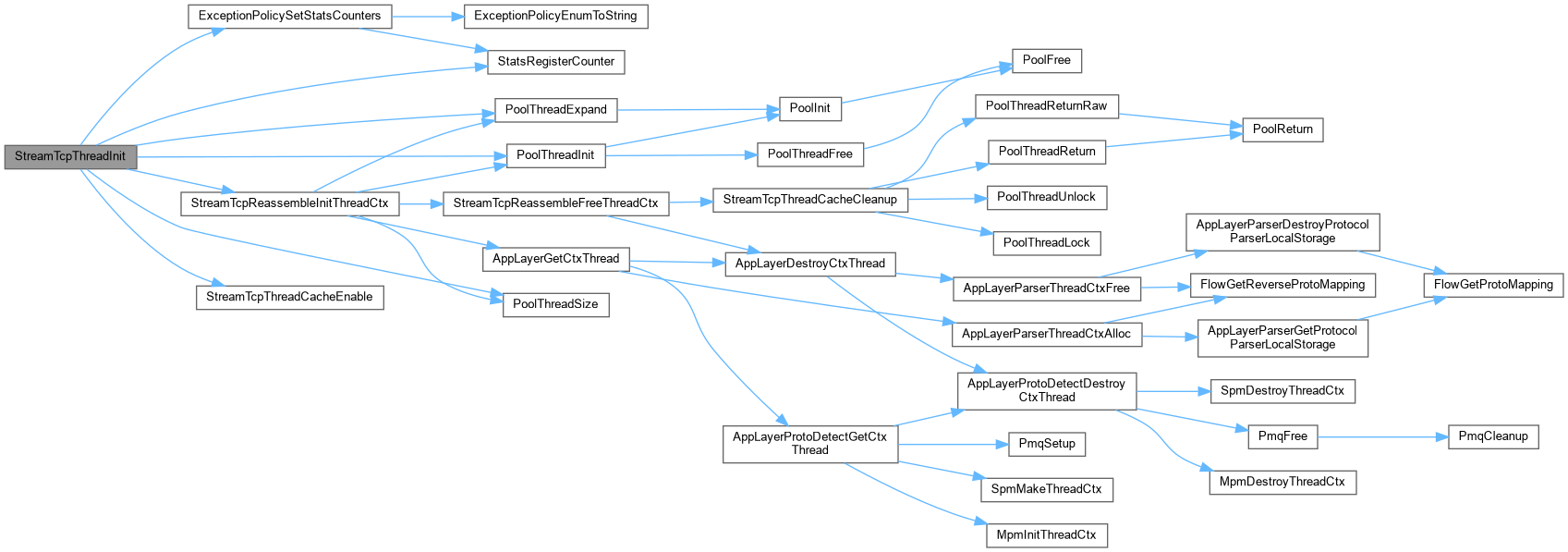

StreamTcpThreadInit()

TmEcode StreamTcpThreadInit	(	ThreadVars *	tv,
		void *	initdata,
		void **	data
	)

Definition at line 5981 of file stream-tcp.c.

References StreamTcpThread_::counter_tcp_ack_unseen_data, StreamTcpThread_::counter_tcp_active_sessions, StreamTcpThread_::counter_tcp_invalid_checksum, StreamTcpThread_::counter_tcp_midstream_eps, StreamTcpThread_::counter_tcp_midstream_pickups, StreamTcpThread_::counter_tcp_pseudo, TcpReassemblyThreadCtx_::counter_tcp_reas_eps, TcpReassemblyThreadCtx_::counter_tcp_reass_data_normal_fail, TcpReassemblyThreadCtx_::counter_tcp_reass_data_overlap_fail, TcpReassemblyThreadCtx_::counter_tcp_reass_gap, TcpReassemblyThreadCtx_::counter_tcp_reass_overlap, TcpReassemblyThreadCtx_::counter_tcp_reass_overlap_diff_data, TcpReassemblyThreadCtx_::counter_tcp_segment_from_cache, TcpReassemblyThreadCtx_::counter_tcp_segment_from_pool, TcpReassemblyThreadCtx_::counter_tcp_segment_memcap, StreamTcpThread_::counter_tcp_sessions, StreamTcpThread_::counter_tcp_ssn_from_cache, StreamTcpThread_::counter_tcp_ssn_from_pool, StreamTcpThread_::counter_tcp_ssn_memcap, StreamTcpThread_::counter_tcp_ssn_memcap_eps, TcpReassemblyThreadCtx_::counter_tcp_stream_depth, TcpReassemblyThreadCtx_::counter_tcp_urgent_oob, StreamTcpThread_::counter_tcp_wrong_thread, ExceptionPolicySetStatsCounters(), TcpStreamCnf_::midstream, TcpStreamCnf_::midstream_policy, PoolThreadExpand(), PoolThreadInit(), PoolThreadSize(), TcpStreamCnf_::prealloc_sessions, StreamTcpThread_::ra_ctx, TcpStreamCnf_::reassembly_memcap_policy, SCCalloc, SCEnter, SCLogDebug, SCLogError, SCMutexLock, SCMutexUnlock, SCReturnInt, TcpStreamCnf_::ssn_memcap_policy, ssn_pool, StreamTcpThread_::ssn_pool_id, StatsRegisterCounter(), stream_config, stream_memcap_eps_stats, stream_midstream_disabled_eps_stats, stream_midstream_enabled_eps_stats, stream_reassembly_memcap_eps_stats, StreamTcpReassembleInitThreadCtx(), StreamTcpThreadCacheEnable(), TM_ECODE_FAILED, TM_ECODE_OK, tv, and unlikely.

Here is the call graph for this function:

StreamTcpUpdateAppLayerProgress()

void StreamTcpUpdateAppLayerProgress	(	TcpSession *	ssn,
		char	direction,
		const uint32_t	progress
	)

update reassembly progress

Parameters

ssn	TCP Session
direction	direction to set the flag in: 0 toserver, 1 toclient

Definition at line 6674 of file stream-tcp.c.

References TcpStream_::app_progress_rel, TcpSession_::client, SCLogDebug, TcpSession_::server, and STREAM_APP_PROGRESS.

Referenced by AppLayerHandleTCPData(), and AppLayerParserParse().

Here is the caller graph for this function:

TcpSessionPacketSsnReuse()

bool TcpSessionPacketSsnReuse	(	const Packet *	p,
		const Flow *	f,
		const void *	tcp_ssn
	)

Definition at line 5931 of file stream-tcp.c.

References Packet_::proto.

Referenced by FlowGetFlowFromHash().

Here is the caller graph for this function:

TcpSessionSetReassemblyDepth()

void TcpSessionSetReassemblyDepth	(	TcpSession *	ssn,
		uint32_t	size
	)

Definition at line 7105 of file stream-tcp.c.

References TcpSession_::reassembly_depth.

Variable Documentation

g_detect_disabled

int g_detect_disabled

extern

global indicating if detection is enabled

Definition at line 186 of file suricata.c.

Referenced by StreamTcpPacket().

ssn_pool

PoolThread* ssn_pool = NULL

Definition at line 213 of file stream-tcp.c.

Referenced by StreamTcpFreeConfig(), StreamTcpInitConfig(), StreamTcpThreadCacheCleanup(), StreamTcpThreadCacheReturnSession(), and StreamTcpThreadInit().

stream_config

TcpStreamCnf stream_config

Definition at line 219 of file stream-tcp.c.

Referenced by AppLayerParserPostStreamSetup(), FileReassemblyDepth(), SCOutputRegisterStreamingLogger(), StreamMidstreamGetExceptionPolicy(), StreamTcp(), StreamTcpBypassEnabled(), StreamTcpCheckMemcap(), StreamTcpGetMemcap(), StreamTcpInitConfig(), StreamTcpInlineMode(), StreamTcpPruneSession(), StreamTcpReassembleCheckMemcap(), StreamTcpReassembleGetMemcap(), StreamTcpReassembleHandleSegment(), StreamTcpReassembleHandleSegmentHandleData(), StreamTcpReassembleInitThreadCtx(), StreamTcpReassembleRealloc(), StreamTcpReassembleSetMemcap(), StreamTcpReassemblyMemcapGetExceptionPolicy(), StreamTcpSegmentForEach(), StreamTcpSetMemcap(), StreamTcpSsnMemcapGetExceptionPolicy(), StreamTcpStreamCleanup(), StreamTcpThreadInit(), StreamTcpUTDeinit(), StreamTcpUTInitInline(), and UTHAddStreamToFlow().

stream_memcap_eps_stats

ExceptionPolicyStatsSetts stream_memcap_eps_stats

Initial value:

= {
    .valid_settings_ids = {
          false,
             false,
      true,
        true,
      true,
      false,
        false,
           true,
    },
    .valid_settings_ips = {
          false,
             false,
      true,
        true,
      true,
      true,
        true,
           true,
    },
}

Definition at line 95 of file stream-tcp.c.

Referenced by StreamTcpThreadInit().

stream_midstream_disabled_eps_stats

ExceptionPolicyStatsSetts stream_midstream_disabled_eps_stats

Initial value:

= {
    .valid_settings_ids = {
          false,
             false,
      false,
        true,
      true,
      false,
        false,
           true,
    },
    .valid_settings_ips = {
          false,
             false,
      false,
        true,
      true,
      false,
        true,
           true,
    },
}

Definition at line 173 of file stream-tcp.c.

Referenced by StreamTcpThreadInit().

stream_midstream_enabled_eps_stats

ExceptionPolicyStatsSetts stream_midstream_enabled_eps_stats

Initial value:

= {
    .valid_settings_ids = {
          false,
             false,
      false,
        true,
      false,
      false,
        false,
           false,
    },
    .valid_settings_ips = {
          false,
             false,
      false,
        true,
      false,
      false,
        false,
           false,
    },
}

Definition at line 147 of file stream-tcp.c.

Referenced by StreamTcpThreadInit().

stream_reassembly_memcap_eps_stats

ExceptionPolicyStatsSetts stream_reassembly_memcap_eps_stats

Initial value:

= {
    .valid_settings_ids = {
          false,
             false,
      true,
        true,
      true,
      false,
        false,
           true,
    },
    .valid_settings_ips = {
          false,
             false,
      true,
        true,
      true,
      true,
        true,
           true,
    },
}

Definition at line 121 of file stream-tcp.c.

Referenced by StreamTcpThreadInit().

t_pcapcnt

thread_local uint64_t t_pcapcnt

extern

Definition at line 80 of file stream-tcp-reassemble.c.

Referenced by StreamTcp(), and StreamTcpReassembleCheckMemcap().
