#include "util-cpu.h"
#include "detect.h"
#include "util-profiling-locks.h"

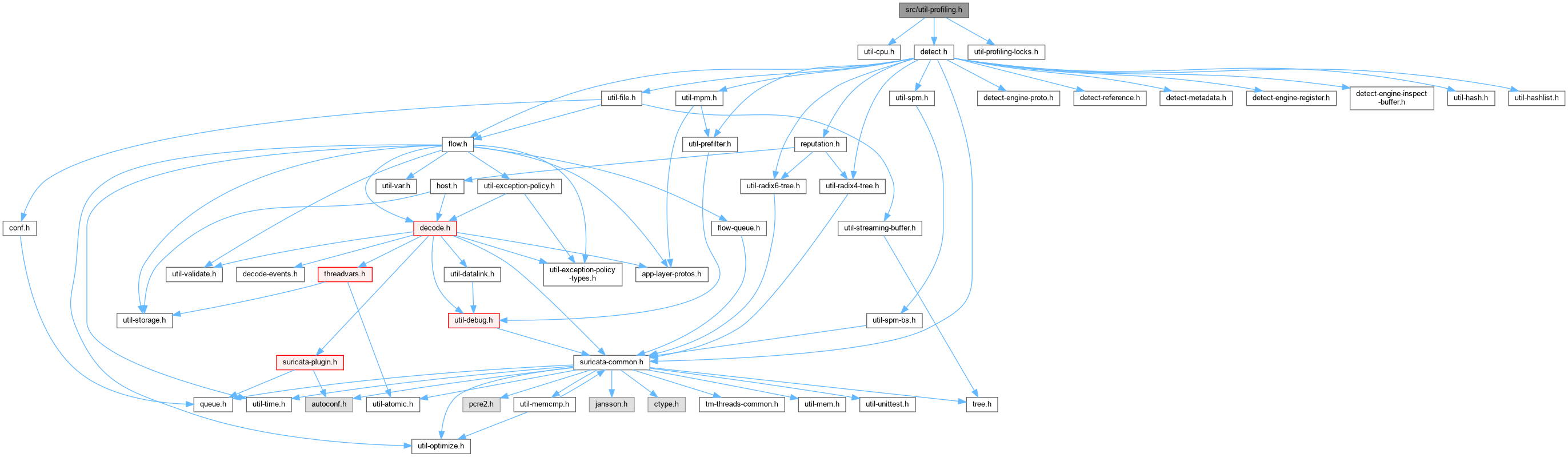

Include dependency graph for util-profiling.h:

Macros
#define	KEYWORD_PROFILING_SET_LIST(ctx, list)

#define	KEYWORD_PROFILING_START

#define	KEYWORD_PROFILING_END(ctx, type, m)

#define	PACKET_PROFILING_START(p)

#define	PACKET_PROFILING_RESTART(p)

#define	PACKET_PROFILING_END(p)

#define	PACKET_PROFILING_RESET_LOCKS

#define	PACKET_PROFILING_COPY_LOCKS(p, id)

#define	PACKET_PROFILING_TMM_START(p, id)

#define	PACKET_PROFILING_TMM_END(p, id)

#define	FLOWWORKER_PROFILING_START(p, id)

#define	FLOWWORKER_PROFILING_END(p, id)

#define	PACKET_PROFILING_RESET(p)

#define	PACKET_PROFILING_APP_START(dp, id)

#define	PACKET_PROFILING_APP_END(dp)

#define	PACKET_PROFILING_APP_PD_START(dp)

#define	PACKET_PROFILING_APP_PD_END(dp)

#define	PACKET_PROFILING_APP_RESET(dp)

#define	PACKET_PROFILING_APP_STORE(dp, p)

#define	PACKET_PROFILING_DETECT_START(p, id)

#define	PACKET_PROFILING_DETECT_END(p, id)

#define	PACKET_PROFILING_LOGGER_START(p, id)

#define	PACKET_PROFILING_LOGGER_END(p, id)

#define	SGH_PROFILING_RECORD(det_ctx, sgh)

#define	PREFILTER_PROFILING_START(det_ctx)

#define	PREFILTER_PROFILING_END(ctx, profile_id)

#define	PREFILTER_PROFILING_ADD_BYTES(det_ctx, bytes)

#define	RULE_PROFILING_START(p)

#define	RULE_PROFILING_END(a, b, c, p)

Functions
void	SCProfilingPrintPacketProfile (Packet *)

void	SCProfilingAddPacket (Packet *)

PktProfiling *	SCProfilePacketStart (void)

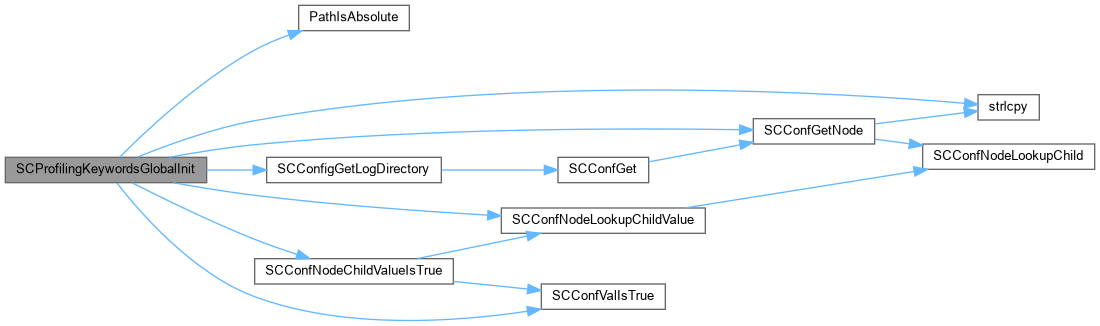

void	SCProfilingKeywordsGlobalInit (void)

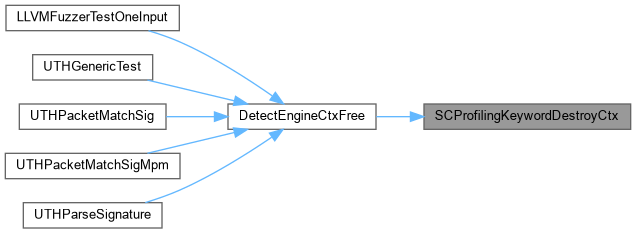

void	SCProfilingKeywordDestroyCtx (DetectEngineCtx *)

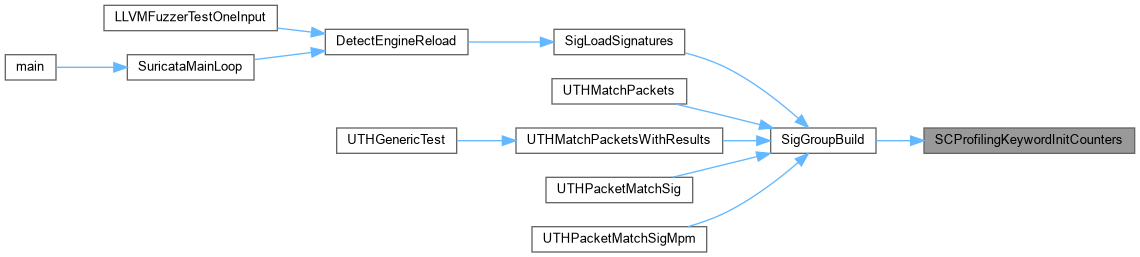

void	SCProfilingKeywordInitCounters (DetectEngineCtx *)
	Register the keyword profiling counters.

void	SCProfilingKeywordUpdateCounter (DetectEngineThreadCtx *det_ctx, int id, uint64_t ticks, int match)
	Update a rule counter.

void	SCProfilingKeywordThreadSetup (struct SCProfileKeywordDetectCtx_ , DetectEngineThreadCtx )

void	SCProfilingKeywordThreadCleanup (DetectEngineThreadCtx *)

void	SCProfilingPrefilterGlobalInit (void)

void	SCProfilingPrefilterDestroyCtx (DetectEngineCtx *)

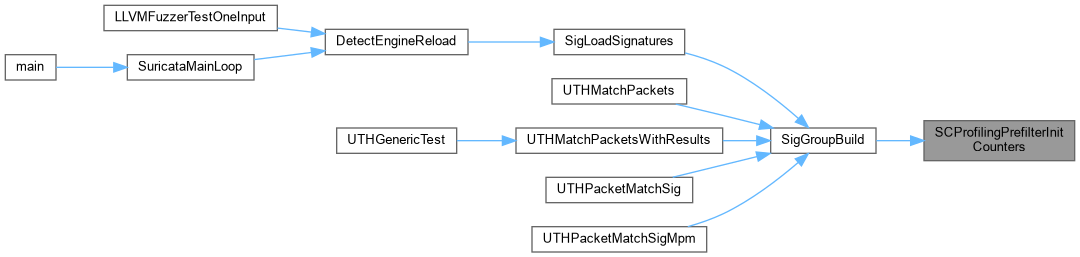

void	SCProfilingPrefilterInitCounters (DetectEngineCtx *)
	Register the prefilter profiling counters.

void	SCProfilingPrefilterUpdateCounter (DetectEngineThreadCtx *det_ctx, int id, uint64_t ticks, uint64_t bytes, uint64_t bytes_called)
	Update a rule counter.

void	SCProfilingPrefilterThreadSetup (struct SCProfilePrefilterDetectCtx_ , DetectEngineThreadCtx )

void	SCProfilingPrefilterThreadCleanup (DetectEngineThreadCtx *)

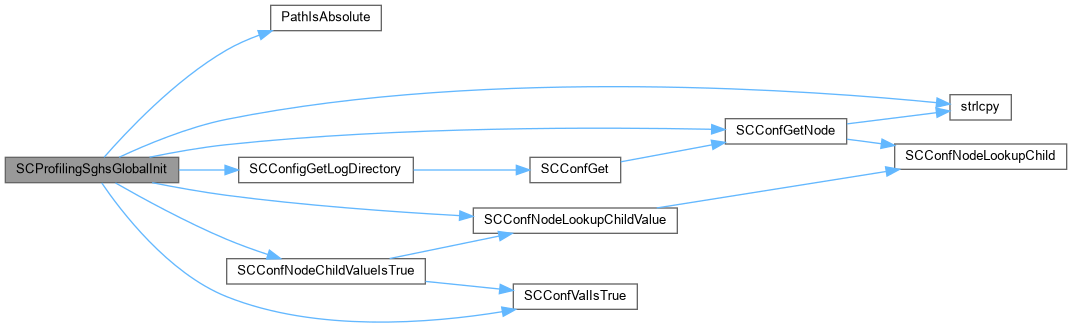

void	SCProfilingSghsGlobalInit (void)

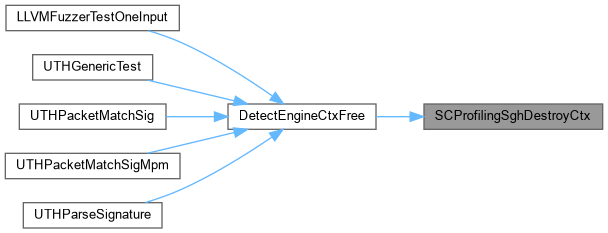

void	SCProfilingSghDestroyCtx (DetectEngineCtx *)

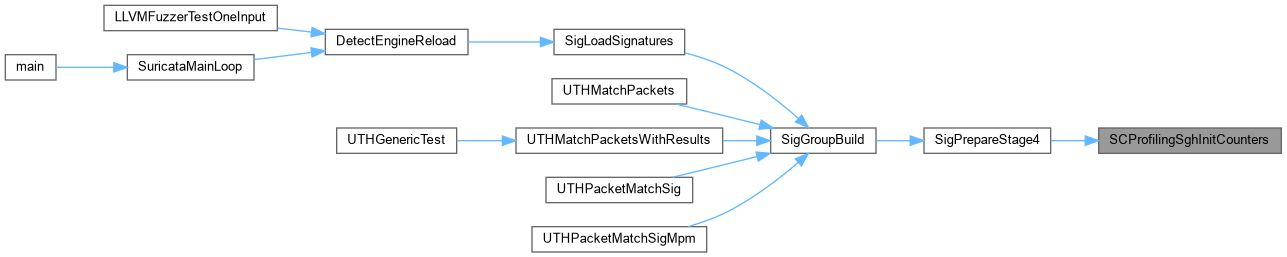

void	SCProfilingSghInitCounters (DetectEngineCtx *)
	Register the keyword profiling counters.

void	SCProfilingSghUpdateCounter (DetectEngineThreadCtx det_ctx, const SigGroupHead sgh)
	Update a rule counter.

void	SCProfilingSghThreadSetup (struct SCProfileSghDetectCtx_ , DetectEngineThreadCtx )

void	SCProfilingSghThreadCleanup (DetectEngineThreadCtx *)

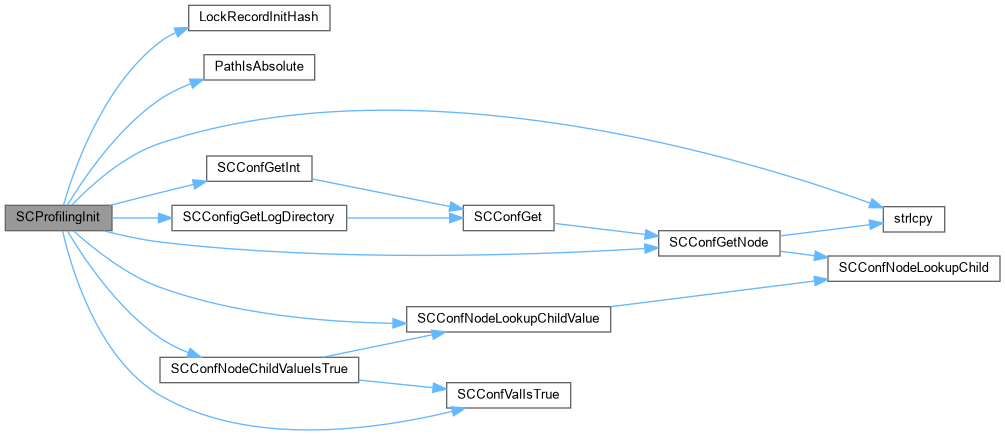

void	SCProfilingInit (void)
	Initialize profiling.

void	SCProfilingDestroy (void)
	Free resources used by profiling.

void	SCProfilingRegisterTests (void)

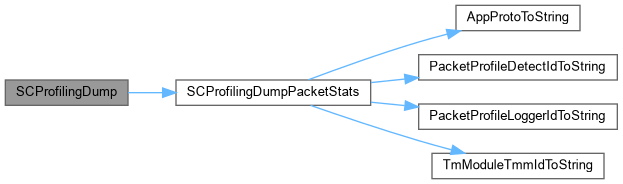

void	SCProfilingDump (void)

Variables
int	profiling_rules_enabled

int	profiling_packets_enabled

int	profiling_sghs_enabled

int	profiling_keyword_enabled

thread_local int	profiling_keyword_entered

int	profiling_prefilter_enabled

thread_local int	profiling_prefilter_entered

Detailed Description

Author: Endace Technology Limited.; Victor Julien victo.nosp@m.r@in.nosp@m.linia.nosp@m.c.ne.nosp@m.t

Definition in file util-profiling.h.

Macro Definition Documentation

◆ FLOWWORKER_PROFILING_END

#define FLOWWORKER_PROFILING_END	(	p,
		id
	)

Value:

    if (profiling_packets_enabled && (p)->profile != NULL) {        \
        if ((id) < PROFILE_FLOWWORKER_SIZE) {                       \
            (p)->profile->flowworker[(id)].ticks_end = UtilCpuGetTicks();  \
        }                                                           \
    }

Definition at line 154 of file util-profiling.h.

◆ FLOWWORKER_PROFILING_START

#define FLOWWORKER_PROFILING_START	(	p,
		id
	)

Value:

    if (profiling_packets_enabled && (p)->profile != NULL) {        \
        if ((id) < PROFILE_FLOWWORKER_SIZE) {                       \
            (p)->profile->flowworker[(id)].ticks_start = UtilCpuGetTicks();\
        }                                                           \
    }

Definition at line 147 of file util-profiling.h.

◆ KEYWORD_PROFILING_END

#define KEYWORD_PROFILING_END	(	ctx,
		type,
		m
	)

Value:

    if (profiling_keyword_enabled && profiling_keyword_entered) { \
        profile_keyword_end_ = UtilCpuGetTicks(); \
        SCProfilingKeywordUpdateCounter((ctx),(type),(profile_keyword_end_ - profile_keyword_start_),(m)); \
        profiling_keyword_entered--; \
    }

Definition at line 64 of file util-profiling.h.

◆ KEYWORD_PROFILING_SET_LIST

#define KEYWORD_PROFILING_SET_LIST	(	ctx,
		list
	)

Value:

    { \
    (ctx)->keyword_perf_list = (list); \
}

Definition at line 46 of file util-profiling.h.

◆ KEYWORD_PROFILING_START

#define KEYWORD_PROFILING_START

Value:

    uint64_t profile_keyword_start_ = 0;                                                           \
    uint64_t profile_keyword_end_ = 0;                                                             \
    if (profiling_keyword_enabled) {                                                               \
        if (profiling_keyword_entered > 0) {                                                       \
            SCLogError("Re-entered profiling, exiting.");                                          \
            abort();                                                                               \
        }                                                                                          \
        profiling_keyword_entered++;                                                               \
        profile_keyword_start_ = UtilCpuGetTicks();                                                \
    }

Definition at line 50 of file util-profiling.h.

◆ PACKET_PROFILING_APP_END

#define PACKET_PROFILING_APP_END ( dp )

Value:

    if (profiling_packets_enabled) {                                                               \
        (dp)->ticks_end = UtilCpuGetTicks();                                                       \
        if ((dp)->ticks_start != 0 && (dp)->ticks_start < ((dp)->ticks_end)) {                     \
            (dp)->ticks_spent = ((dp)->ticks_end - (dp)->ticks_start);                             \
        }                                                                                          \
    }

Definition at line 173 of file util-profiling.h.

◆ PACKET_PROFILING_APP_PD_END

#define PACKET_PROFILING_APP_PD_END ( dp )

Value:

    if (profiling_packets_enabled) {                                \
        (dp)->proto_detect_ticks_end = UtilCpuGetTicks();           \
        if ((dp)->proto_detect_ticks_start != 0 && (dp)->proto_detect_ticks_start < ((dp)->proto_detect_ticks_end)) {  \
            (dp)->proto_detect_ticks_spent =                        \
                ((dp)->proto_detect_ticks_end - (dp)->proto_detect_ticks_start);  \
        }                                                           \
    }

Definition at line 186 of file util-profiling.h.

◆ PACKET_PROFILING_APP_PD_START

#define PACKET_PROFILING_APP_PD_START ( dp )

Value:

    if (profiling_packets_enabled) {                                \
        (dp)->proto_detect_ticks_start = UtilCpuGetTicks();         \
    }

Definition at line 181 of file util-profiling.h.

◆ PACKET_PROFILING_APP_RESET

#define PACKET_PROFILING_APP_RESET ( dp )

Value:

    if (profiling_packets_enabled) {                                \
        (dp)->ticks_start = 0;                                      \
        (dp)->ticks_end = 0;                                        \
        (dp)->ticks_spent = 0;                                      \
        (dp)->alproto = 0;                                          \
        (dp)->proto_detect_ticks_start = 0;                         \
        (dp)->proto_detect_ticks_end = 0;                           \
        (dp)->proto_detect_ticks_spent = 0;                         \
    }

Definition at line 195 of file util-profiling.h.

◆ PACKET_PROFILING_APP_START

#define PACKET_PROFILING_APP_START	(	dp,
		id
	)

Value:

    if (profiling_packets_enabled) {                                \
        (dp)->ticks_start = UtilCpuGetTicks();                      \
        (dp)->alproto = (id);                                       \
    }

Definition at line 167 of file util-profiling.h.

◆ PACKET_PROFILING_APP_STORE

#define PACKET_PROFILING_APP_STORE	(	dp,
		p
	)

Value:

    if (profiling_packets_enabled && (p)->profile != NULL) {                                       \
        if ((dp)->alproto < g_alproto_max) {                                                       \
            (p)->profile->app[(dp)->alproto].ticks_spent += (dp)->ticks_spent;                     \
            (p)->profile->proto_detect += (dp)->proto_detect_ticks_spent;                          \
        }                                                                                          \
    }

Definition at line 206 of file util-profiling.h.

◆ PACKET_PROFILING_COPY_LOCKS

#define PACKET_PROFILING_COPY_LOCKS	(	p,
		id
	)

Definition at line 128 of file util-profiling.h.

◆ PACKET_PROFILING_DETECT_END

#define PACKET_PROFILING_DETECT_END	(	p,
		id
	)

Value:

    if (profiling_packets_enabled  && (p)->profile != NULL) {       \
        if ((id) < PROF_DETECT_SIZE) {                              \
            (p)->profile->detect[(id)].ticks_end = UtilCpuGetTicks();\
            if ((p)->profile->detect[(id)].ticks_start != 0 &&       \
                    (p)->profile->detect[(id)].ticks_start < (p)->profile->detect[(id)].ticks_end) {  \
                (p)->profile->detect[(id)].ticks_spent +=            \
                ((p)->profile->detect[(id)].ticks_end - (p)->profile->detect[(id)].ticks_start);  \
            }                                                       \
        }                                                           \
    }

Definition at line 221 of file util-profiling.h.

◆ PACKET_PROFILING_DETECT_START

#define PACKET_PROFILING_DETECT_START	(	p,
		id
	)

Value:

    if (profiling_packets_enabled && (p)->profile != NULL) {        \
        if ((id) < PROF_DETECT_SIZE) {                              \
            (p)->profile->detect[(id)].ticks_start = UtilCpuGetTicks(); \
        }                                                           \
    }

Definition at line 214 of file util-profiling.h.

◆ PACKET_PROFILING_END

#define PACKET_PROFILING_END ( p )

Value:

    if (profiling_packets_enabled && (p)->profile != NULL) {        \
        (p)->profile->ticks_end = UtilCpuGetTicks();                \
        SCProfilingAddPacket((p));                                  \
    }

Definition at line 86 of file util-profiling.h.

◆ PACKET_PROFILING_LOGGER_END

#define PACKET_PROFILING_LOGGER_END	(	p,
		id
	)

Value:

    if (profiling_packets_enabled  && (p)->profile != NULL) {       \
        if ((id) < LOGGER_SIZE) {                              \
            (p)->profile->logger[(id)].ticks_end = UtilCpuGetTicks();\
            if ((p)->profile->logger[(id)].ticks_start != 0 &&       \
                    (p)->profile->logger[(id)].ticks_start < (p)->profile->logger[(id)].ticks_end) {  \
                (p)->profile->logger[(id)].ticks_spent +=            \
                ((p)->profile->logger[(id)].ticks_end - (p)->profile->logger[(id)].ticks_start);  \
            }                                                       \
        }                                                           \
    }

Definition at line 240 of file util-profiling.h.

◆ PACKET_PROFILING_LOGGER_START

#define PACKET_PROFILING_LOGGER_START	(	p,
		id
	)

Value:

    if (profiling_packets_enabled && (p)->profile != NULL) {        \
        if ((id) < LOGGER_SIZE) {                              \
            (p)->profile->logger[(id)].ticks_start = UtilCpuGetTicks(); \
        }                                                           \
    }

Definition at line 233 of file util-profiling.h.

◆ PACKET_PROFILING_RESET

#define PACKET_PROFILING_RESET ( p )

Value:

    if (profiling_packets_enabled && (p)->profile != NULL) {        \
        SCFree((p)->profile);                                       \
        (p)->profile = NULL;                                        \
    }

Definition at line 161 of file util-profiling.h.

◆ PACKET_PROFILING_RESET_LOCKS

#define PACKET_PROFILING_RESET_LOCKS

Definition at line 127 of file util-profiling.h.

◆ PACKET_PROFILING_RESTART

#define PACKET_PROFILING_RESTART ( p )

Value:

    if (profiling_packets_enabled) {                                \
        if ((p)->profile != NULL)                                   \
            (p)->profile->ticks_start = UtilCpuGetTicks();          \
    }

Definition at line 80 of file util-profiling.h.

◆ PACKET_PROFILING_START

#define PACKET_PROFILING_START ( p )

Value:

    if (profiling_packets_enabled) {                                \
        (p)->profile = SCProfilePacketStart();                      \
        if ((p)->profile != NULL)                                   \
            (p)->profile->ticks_start = UtilCpuGetTicks();          \
    }

Definition at line 73 of file util-profiling.h.

◆ PACKET_PROFILING_TMM_END

#define PACKET_PROFILING_TMM_END	(	p,
		id
	)

Value:

    if (profiling_packets_enabled && (p)->profile != NULL) {        \
        if ((id) < TMM_SIZE) {                                      \
            PACKET_PROFILING_COPY_LOCKS((p), (id));                 \
            (p)->profile->tmm[(id)].ticks_end = UtilCpuGetTicks();  \
        }                                                           \
    }

Definition at line 139 of file util-profiling.h.

◆ PACKET_PROFILING_TMM_START

#define PACKET_PROFILING_TMM_START	(	p,
		id
	)

Value:

    if (profiling_packets_enabled && (p)->profile != NULL) {        \
        if ((id) < TMM_SIZE) {                                      \
            (p)->profile->tmm[(id)].ticks_start = UtilCpuGetTicks();\
            PACKET_PROFILING_RESET_LOCKS;                           \
        }                                                           \
    }

Definition at line 131 of file util-profiling.h.

◆ PREFILTER_PROFILING_ADD_BYTES

#define PREFILTER_PROFILING_ADD_BYTES	(	det_ctx,
		bytes
	)

Value:

(det_ctx)->prefilter_bytes += (bytes); \

(det_ctx)->prefilter_bytes_called++

Definition at line 286 of file util-profiling.h.

◆ PREFILTER_PROFILING_END

#define PREFILTER_PROFILING_END	(	ctx,
		profile_id
	)

Value:

    if (profiling_prefilter_enabled && profiling_prefilter_entered) {                              \
        profile_prefilter_end_ = UtilCpuGetTicks();                                                \
        if (profile_prefilter_end_ > profile_prefilter_start_)                                     \
            SCProfilingPrefilterUpdateCounter((ctx), (profile_id),                                 \
                    (profile_prefilter_end_ - profile_prefilter_start_), (ctx)->prefilter_bytes,   \
                    (ctx)->prefilter_bytes_called);                                                \
        profiling_prefilter_entered--;                                                             \
    }

Definition at line 276 of file util-profiling.h.

◆ PREFILTER_PROFILING_START

#define PREFILTER_PROFILING_START ( det_ctx )

Value:

    (det_ctx)->prefilter_bytes = 0;                                                                \
    (det_ctx)->prefilter_bytes_called = 0;                                                         \
    uint64_t profile_prefilter_start_ = 0;                                                         \
    uint64_t profile_prefilter_end_ = 0;                                                           \
    if (profiling_prefilter_enabled) {                                                             \
        if (profiling_prefilter_entered > 0) {                                                     \
            SCLogError("Re-entered profiling, exiting.");                                          \
            abort();                                                                               \
        }                                                                                          \
        profiling_prefilter_entered++;                                                             \
        profile_prefilter_start_ = UtilCpuGetTicks();                                              \
    }

Definition at line 260 of file util-profiling.h.

◆ RULE_PROFILING_END

#define RULE_PROFILING_END	(	a,
		b,
		c,
		p
	)

Definition at line 422 of file util-profiling.h.

◆ RULE_PROFILING_START

#define RULE_PROFILING_START ( p )

Definition at line 421 of file util-profiling.h.

◆ SGH_PROFILING_RECORD

#define SGH_PROFILING_RECORD	(	det_ctx,
		sgh
	)

Value:

    if (profiling_sghs_enabled) {                                   \
        SCProfilingSghUpdateCounter((det_ctx), (sgh));              \
    }

Definition at line 252 of file util-profiling.h.

Function Documentation

◆ SCProfilePacketStart()

PktProfiling * SCProfilePacketStart ( void )

Definition at line 1198 of file util-profiling.c.

References g_alproto_max, SC_ATOMIC_ADD, and SCCalloc.

◆ SCProfilingAddPacket()

void SCProfilingAddPacket ( Packet * p )

Definition at line 1108 of file util-profiling.c.

References SCProfilePacketData_::cnt, PktProfiling_::flowworker, SCProfilePacketData_::max, SCProfilePacketData_::min, packet_profile_data4, packet_profile_data6, packet_profile_flowworker_data, Packet_::profile, PROFILE_FLOWWORKER_SIZE, Packet_::proto, SCProfilingPrintPacketProfile(), PktProfiling_::ticks_end, PktProfiling_::ticks_start, and SCProfilePacketData_::tot.

Here is the call graph for this function:

◆ SCProfilingDestroy()

void SCProfilingDestroy ( void )

Free resources used by profiling.

Definition at line 276 of file util-profiling.c.

References LockRecordFreeHash(), packet_profile_app_data4, packet_profile_app_data6, profiling_packets_enabled, and SCFree.

Referenced by PostRunDeinit().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SCProfilingDump()

void SCProfilingDump ( void )

Definition at line 311 of file util-profiling.c.

References SCLogPerf, and SCProfilingDumpPacketStats().

Referenced by PostRunDeinit().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SCProfilingInit()

void SCProfilingInit ( void )

Initialize profiling.

Definition at line 133 of file util-profiling.c.

References FatalError, g_alproto_max, LockRecordInitHash(), packet_profile_app_data4, packet_profile_app_data6, packet_profile_app_pd_data4, packet_profile_app_pd_data6, packet_profile_data4, packet_profile_data6, packet_profile_detect_data4, packet_profile_detect_data6, packet_profile_flowworker_data, packet_profile_log_data4, packet_profile_log_data6, packet_profile_tmm_data4, packet_profile_tmm_data6, PathIsAbsolute(), profiling_locks_enabled, profiling_locks_file_mode, profiling_locks_file_name, profiling_locks_output_to_file, profiling_packets_enabled, SC_ATOMIC_INIT, SCCalloc, SCConfGetInt(), SCConfGetNode(), SCConfigGetLogDirectory(), SCConfNodeChildValueIsTrue(), SCConfNodeLookupChildValue(), SCConfValIsTrue(), SCFree, SCLogInfo, SCLogWarning, SCMalloc, SCStrdup, strlcpy(), and unlikely.

Referenced by PreRunInit().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SCProfilingKeywordDestroyCtx()

void SCProfilingKeywordDestroyCtx ( DetectEngineCtx * de_ctx )

Definition at line 268 of file util-profiling-keywords.c.

References DetectEngineCtx_::buffer_type_id, de_ctx, DetectEngineCtx_::profile_keyword_ctx, DetectEngineCtx_::profile_keyword_ctx_per_list, and SCFree.

Referenced by DetectEngineCtxFree().

Here is the caller graph for this function:

◆ SCProfilingKeywordInitCounters()

void SCProfilingKeywordInitCounters ( DetectEngineCtx * de_ctx )

Register the keyword profiling counters.

Parameters

de_ctx The active DetectEngineCtx, used to get at the loaded rules.

Definition at line 365 of file util-profiling-keywords.c.

References DetectEngineCtx_::buffer_type_id, BUG_ON, SCProfileKeywordDetectCtx_::data, de_ctx, DETECT_TBLSIZE, DetectEngineCtx_::profile_keyword_ctx, DetectEngineCtx_::profile_keyword_ctx_per_list, profiling_keyword_enabled, SCCalloc, and SCLogPerf.

Referenced by SigGroupBuild().

Here is the caller graph for this function:

◆ SCProfilingKeywordsGlobalInit()

void SCProfilingKeywordsGlobalInit ( void )

Definition at line 61 of file util-profiling-keywords.c.

References PathIsAbsolute(), profiling_keyword_enabled, SCConfGetNode(), SCConfigGetLogDirectory(), SCConfNodeChildValueIsTrue(), SCConfNodeLookupChildValue(), SCConfValIsTrue(), and strlcpy().

Referenced by PreRunInit().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SCProfilingKeywordThreadCleanup()

void SCProfilingKeywordThreadCleanup ( DetectEngineThreadCtx * det_ctx )

Definition at line 338 of file util-profiling-keywords.c.

References DetectEngineCtx_::buffer_type_id, SCProfileKeywordDetectCtx_::data_m, DetectEngineThreadCtx_::de_ctx, DetectEngineThreadCtx_::keyword_perf_data, DetectEngineThreadCtx_::keyword_perf_data_per_list, DetectEngineCtx_::profile_keyword_ctx, and SCFree.

◆ SCProfilingKeywordThreadSetup()

void SCProfilingKeywordThreadSetup	(	struct SCProfileKeywordDetectCtx_ *	ctx,
		DetectEngineThreadCtx *	det_ctx
	)

Definition at line 284 of file util-profiling-keywords.c.

References DetectEngineCtx_::buffer_type_id, BUG_ON, ctx, DetectEngineThreadCtx_::de_ctx, DETECT_TBLSIZE, DetectEngineThreadCtx_::keyword_perf_data, DetectEngineThreadCtx_::keyword_perf_data_per_list, and SCCalloc.

◆ SCProfilingKeywordUpdateCounter()

void SCProfilingKeywordUpdateCounter	(	DetectEngineThreadCtx *	det_ctx,
		int	id,
		uint64_t	ticks,
		int	match
	)

Update a rule counter.

Parameters

id	The ID of this counter.
ticks	Number of CPU ticks for this rule.
match	Did the rule match?

Definition at line 216 of file util-profiling-keywords.c.

References SCProfileKeywordData_::checks, DETECT_TBLSIZE, id, DetectEngineThreadCtx_::keyword_perf_data, DetectEngineThreadCtx_::keyword_perf_data_per_list, DetectEngineThreadCtx_::keyword_perf_list, SCProfileKeywordData_::matches, SCProfileKeywordData_::max, SCProfileKeywordData_::ticks_match, and SCProfileKeywordData_::ticks_no_match.

◆ SCProfilingPrefilterDestroyCtx()

void SCProfilingPrefilterDestroyCtx ( DetectEngineCtx * de_ctx )

Definition at line 236 of file util-profiling-prefilter.c.

References de_ctx, and DetectEngineCtx_::profile_prefilter_ctx.

Referenced by DetectEngineCtxFree().

Here is the caller graph for this function:

◆ SCProfilingPrefilterGlobalInit()

void SCProfilingPrefilterGlobalInit ( void )

Definition at line 61 of file util-profiling-prefilter.c.

References PathIsAbsolute(), profiling_prefilter_enabled, SCConfGetNode(), SCConfigGetLogDirectory(), SCConfNodeChildValueIsTrue(), SCConfNodeLookupChildValue(), SCConfValIsTrue(), and strlcpy().

Referenced by PreRunInit().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SCProfilingPrefilterInitCounters()

void SCProfilingPrefilterInitCounters ( DetectEngineCtx * de_ctx )

Register the prefilter profiling counters.

Parameters

de_ctx The active DetectEngineCtx, used to get at the loaded rules.

Definition at line 300 of file util-profiling-prefilter.c.

References BUG_ON, ctx, SCProfilePrefilterDetectCtx_::data, de_ctx, HashListTableGetListData, HashListTableGetListHead(), HashListTableGetListNext, SCProfilePrefilterData_::name, DetectEngineCtx_::prefilter_hash_table, DetectEngineCtx_::prefilter_id, DetectEngineCtx_::profile_prefilter_ctx, profiling_prefilter_enabled, SCCalloc, SCLogDebug, SCLogPerf, and SCProfilePrefilterDetectCtx_::size.

Referenced by SigGroupBuild().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SCProfilingPrefilterThreadCleanup()

void SCProfilingPrefilterThreadCleanup ( DetectEngineThreadCtx * det_ctx )

Definition at line 281 of file util-profiling-prefilter.c.

References SCProfilePrefilterDetectCtx_::data_m, DetectEngineThreadCtx_::de_ctx, DetectEngineThreadCtx_::prefilter_perf_data, DetectEngineCtx_::profile_prefilter_ctx, and SCFree.

◆ SCProfilingPrefilterThreadSetup()

void SCProfilingPrefilterThreadSetup	(	struct SCProfilePrefilterDetectCtx_ *	ctx,
		DetectEngineThreadCtx *	det_ctx
	)

Definition at line 245 of file util-profiling-prefilter.c.

References ctx, DetectEngineThreadCtx_::de_ctx, DetectEngineCtx_::prefilter_id, DetectEngineThreadCtx_::prefilter_perf_data, and SCCalloc.

◆ SCProfilingPrefilterUpdateCounter()

void SCProfilingPrefilterUpdateCounter	(	DetectEngineThreadCtx *	det_ctx,
		int	id,
		uint64_t	ticks,
		uint64_t	bytes,
		uint64_t	bytes_called
	)

Update a rule counter.

Parameters

id	The ID of this counter.
ticks	Number of CPU ticks for this rule.
match	Did the rule match?

Definition at line 194 of file util-profiling-prefilter.c.

References SCProfilePrefilterData_::bytes_called, SCProfilePrefilterData_::called, DetectEngineThreadCtx_::de_ctx, id, SCProfilePrefilterData_::max, SCProfilePrefilterData_::max_bytes, DetectEngineCtx_::prefilter_id, DetectEngineThreadCtx_::prefilter_perf_data, SCProfilePrefilterData_::total, and SCProfilePrefilterData_::total_bytes.

◆ SCProfilingPrintPacketProfile()

void SCProfilingPrintPacketProfile ( Packet * p )

Definition at line 780 of file util-profiling.c.

References PktProfiling_::app, PktProfiling_::detect, flags, PktProfiling_::flowworker, g_alproto_max, PktProfiling_::logger, LOGGER_SIZE, Packet_::pcap_cnt, PROF_DETECT_SIZE, Packet_::profile, PROFILE_FLOWWORKER_APPLAYERUDP, PROFILE_FLOWWORKER_SIZE, PROFILE_FLOWWORKER_STREAM, Packet_::proto, PktProfiling_::proto_detect, PktProfilingTmmData_::ticks_end, PktProfilingData_::ticks_end, PktProfiling_::ticks_end, PktProfilingDetectData_::ticks_spent, PktProfilingAppData_::ticks_spent, PktProfilingLoggerData_::ticks_spent, PktProfilingTmmData_::ticks_start, PktProfilingData_::ticks_start, PktProfiling_::ticks_start, TM_FLAG_DECODE_TM, TM_FLAG_RECEIVE_TM, PktProfiling_::tmm, TMM_FLOWWORKER, tmm_modules, and TMM_SIZE.

Referenced by SCProfilingAddPacket().

Here is the caller graph for this function:

◆ SCProfilingRegisterTests()

void SCProfilingRegisterTests ( void )

Definition at line 1408 of file util-profiling.c.

References UtRegisterTest().

Here is the call graph for this function:

◆ SCProfilingSghDestroyCtx()

void SCProfilingSghDestroyCtx ( DetectEngineCtx * de_ctx )

Definition at line 285 of file util-profiling-rulegroups.c.

References de_ctx, and DetectEngineCtx_::profile_sgh_ctx.

Referenced by DetectEngineCtxFree().

Here is the caller graph for this function:

◆ SCProfilingSghInitCounters()

void SCProfilingSghInitCounters ( DetectEngineCtx * de_ctx )

Register the keyword profiling counters.

Parameters

de_ctx The active DetectEngineCtx, used to get at the loaded rules.

Definition at line 348 of file util-profiling-rulegroups.c.

References BUG_ON, SCProfileSghDetectCtx_::cnt, SCProfileSghDetectCtx_::data, de_ctx, DetectEngineCtx_::profile_sgh_ctx, profiling_sghs_enabled, SCCalloc, SCLogPerf, and DetectEngineCtx_::sgh_array_cnt.

Referenced by SigPrepareStage4().

Here is the caller graph for this function:

◆ SCProfilingSghsGlobalInit()

void SCProfilingSghsGlobalInit ( void )

Definition at line 61 of file util-profiling-rulegroups.c.

References PathIsAbsolute(), profiling_sghs_enabled, SCConfGetNode(), SCConfigGetLogDirectory(), SCConfNodeChildValueIsTrue(), SCConfNodeLookupChildValue(), SCConfValIsTrue(), and strlcpy().

Referenced by PreRunInit().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SCProfilingSghThreadCleanup()

void SCProfilingSghThreadCleanup ( DetectEngineThreadCtx * det_ctx )

Definition at line 329 of file util-profiling-rulegroups.c.

References SCProfileSghDetectCtx_::data_m, DetectEngineThreadCtx_::de_ctx, DetectEngineCtx_::profile_sgh_ctx, SCFree, and DetectEngineThreadCtx_::sgh_perf_data.

◆ SCProfilingSghThreadSetup()

void SCProfilingSghThreadSetup	(	struct SCProfileSghDetectCtx_ *	ctx,
		DetectEngineThreadCtx *	det_ctx
	)

Definition at line 294 of file util-profiling-rulegroups.c.

References ctx, DetectEngineThreadCtx_::de_ctx, SCCalloc, DetectEngineCtx_::sgh_array_cnt, and DetectEngineThreadCtx_::sgh_perf_data.

◆ SCProfilingSghUpdateCounter()

void SCProfilingSghUpdateCounter	(	DetectEngineThreadCtx *	det_ctx,
		const SigGroupHead *	sgh
	)

Update a rule counter.

Parameters

id	The ID of this counter.
ticks	Number of CPU ticks for this rule.
match	Did the rule match?

Definition at line 248 of file util-profiling-rulegroups.c.

References SCProfileSghData_::checks, DetectEngineThreadCtx_::de_ctx, SigGroupHead_::id, DetectEngineThreadCtx_::match_array_cnt, SCProfileSghData_::mpm_match_cnt_max, SCProfileSghData_::mpm_match_cnt_total, DetectEngineThreadCtx_::pmq, SCProfileSghData_::post_prefilter_sigs_max, SCProfileSghData_::post_prefilter_sigs_total, PrefilterRuleStore_::rule_id_array_cnt, DetectEngineCtx_::sgh_array_cnt, and DetectEngineThreadCtx_::sgh_perf_data.

Variable Documentation

◆ profiling_keyword_enabled

int profiling_keyword_enabled

extern

Definition at line 56 of file util-profiling-keywords.c.

Referenced by SCProfilingKeywordInitCounters(), and SCProfilingKeywordsGlobalInit().

◆ profiling_keyword_entered

thread_local int profiling_keyword_entered

extern

Definition at line 57 of file util-profiling-keywords.c.

◆ profiling_packets_enabled

int profiling_packets_enabled

extern

Definition at line 94 of file util-profiling.c.

Referenced by PostRunDeinit(), SCProfilingDestroy(), SCProfilingDumpPacketStats(), and SCProfilingInit().

◆ profiling_prefilter_enabled

int profiling_prefilter_enabled

extern

Definition at line 56 of file util-profiling-prefilter.c.

Referenced by SCProfilingPrefilterGlobalInit(), and SCProfilingPrefilterInitCounters().

◆ profiling_prefilter_entered

thread_local int profiling_prefilter_entered

extern

Definition at line 57 of file util-profiling-prefilter.c.

◆ profiling_rules_enabled

int profiling_rules_enabled

extern

◆ profiling_sghs_enabled

int profiling_sghs_enabled

extern

Definition at line 56 of file util-profiling-rulegroups.c.

Referenced by SCProfilingSghInitCounters(), and SCProfilingSghsGlobalInit().

Macros

Functions

Variables

Detailed Description

Macro Definition Documentation

◆ FLOWWORKER_PROFILING_END

◆ FLOWWORKER_PROFILING_START

◆ KEYWORD_PROFILING_END

◆ KEYWORD_PROFILING_SET_LIST

◆ KEYWORD_PROFILING_START

◆ PACKET_PROFILING_APP_END

◆ PACKET_PROFILING_APP_PD_END

◆ PACKET_PROFILING_APP_PD_START

◆ PACKET_PROFILING_APP_RESET

◆ PACKET_PROFILING_APP_START

◆ PACKET_PROFILING_APP_STORE

◆ PACKET_PROFILING_COPY_LOCKS

◆ PACKET_PROFILING_DETECT_END

◆ PACKET_PROFILING_DETECT_START

◆ PACKET_PROFILING_END

◆ PACKET_PROFILING_LOGGER_END

◆ PACKET_PROFILING_LOGGER_START

◆ PACKET_PROFILING_RESET

◆ PACKET_PROFILING_RESET_LOCKS

◆ PACKET_PROFILING_RESTART

◆ PACKET_PROFILING_START

◆ PACKET_PROFILING_TMM_END

◆ PACKET_PROFILING_TMM_START

◆ PREFILTER_PROFILING_ADD_BYTES

◆ PREFILTER_PROFILING_END

◆ PREFILTER_PROFILING_START

◆ RULE_PROFILING_END

◆ RULE_PROFILING_START

◆ SGH_PROFILING_RECORD

Function Documentation

◆ SCProfilePacketStart()

◆ SCProfilingAddPacket()

◆ SCProfilingDestroy()

◆ SCProfilingDump()

◆ SCProfilingInit()

◆ SCProfilingKeywordDestroyCtx()

◆ SCProfilingKeywordInitCounters()

◆ SCProfilingKeywordsGlobalInit()

◆ SCProfilingKeywordThreadCleanup()

◆ SCProfilingKeywordThreadSetup()

◆ SCProfilingKeywordUpdateCounter()

◆ SCProfilingPrefilterDestroyCtx()

◆ SCProfilingPrefilterGlobalInit()

◆ SCProfilingPrefilterInitCounters()

◆ SCProfilingPrefilterThreadCleanup()

◆ SCProfilingPrefilterThreadSetup()

◆ SCProfilingPrefilterUpdateCounter()

◆ SCProfilingPrintPacketProfile()

◆ SCProfilingRegisterTests()

◆ SCProfilingSghDestroyCtx()

◆ SCProfilingSghInitCounters()

◆ SCProfilingSghsGlobalInit()

◆ SCProfilingSghThreadCleanup()

◆ SCProfilingSghThreadSetup()

◆ SCProfilingSghUpdateCounter()

Variable Documentation

◆ profiling_keyword_enabled

◆ profiling_keyword_entered

◆ profiling_packets_enabled

◆ profiling_prefilter_enabled

◆ profiling_prefilter_entered

◆ profiling_rules_enabled

◆ profiling_sghs_enabled
